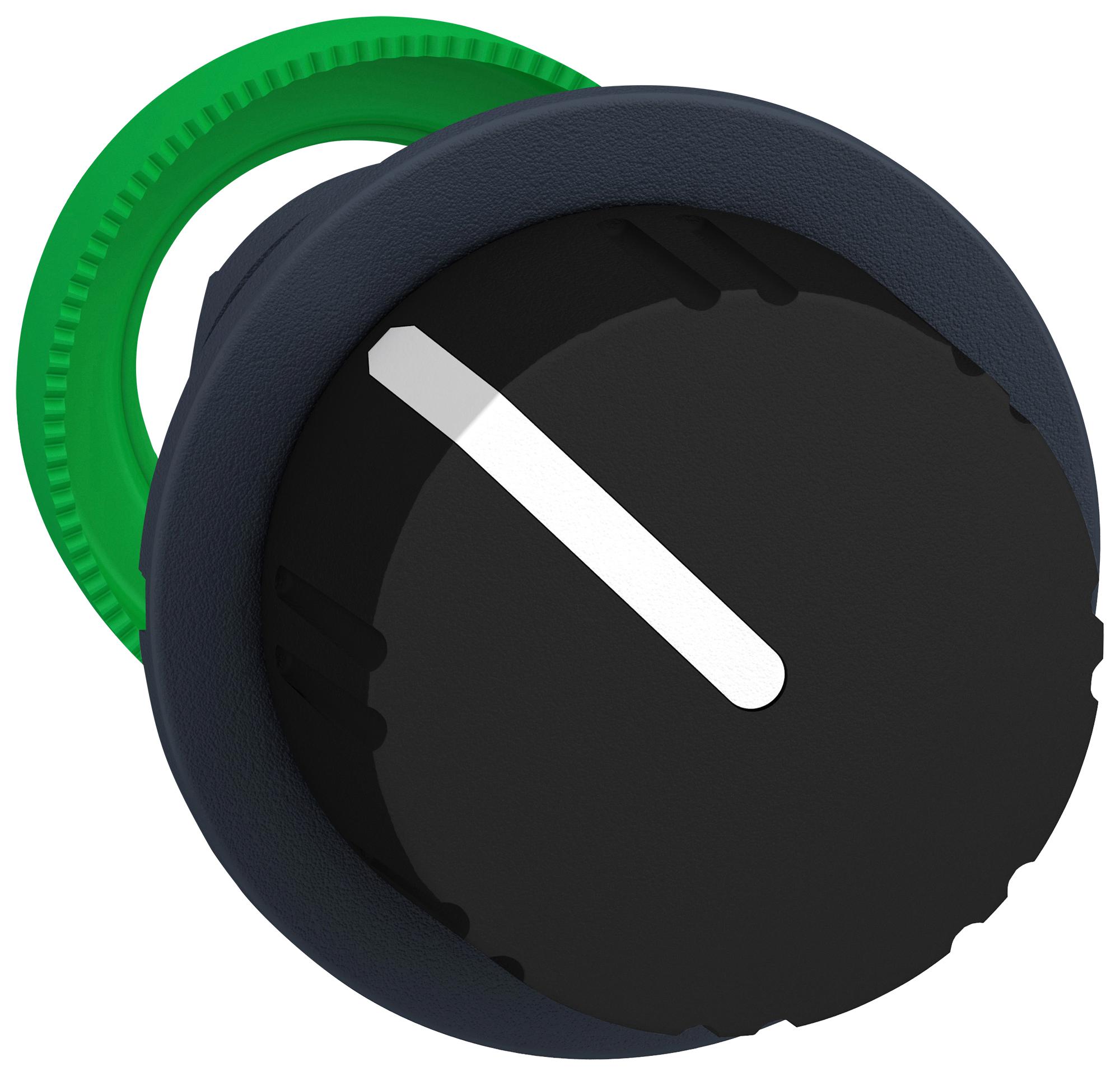

Schneider Electric ZB5FD49 Selector Switch Head
The black selector switch head features a built-in flush design with a round shape, featuring a knurled black knob for easy operation. Compatible with the Harmony XB5 series, it offers high durability with a mechanical cycle life of 1,000,000. It supports multiple contact configurations, including up to six contacts, with environmental ratings of IP66, IP67, and IP69K for robust protection. Suitable for industrial control panels, it operates within a temperature range of -40°C to 70°C, ensuring reliable performance in harsh conditions.
Schneider Electric ZB5FD49 Selector Switch Head Specifications:
- Mounting diameter: 30 mm (1.18 inch)
- Overall width: 37 mm (1.46 inch)
- Overall height: 37 mm (1.46 inch)
- Overall depth: 46 mm (1.81 inch)
- Head type: Built-in-flush, round shape
- Material: Dark grey plastic bezel with black knurled knob
- Electrical composition code: C4, CS, C6, C7, C8, C11, C3, C15 for various contact configurations
- Mechanical durability: 1,000,000 cycles
- Operating temperature range: -40°C to +70°C
- Ingress protection: IP66, IP67, IP69K
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Weight: 0.07 lb (0.034 kg)
Buy the Schneider Series Harmony XB5 Selector Switch: ZB5FD49
Order the Schneider ZB5FD49 selector switch head online today for reliable performance in demanding environments. Designed with a durable black knurled knob and built-in flush mounting, it offers excellent resistance to water, pressure, and vibration, supporting various contact configurations up to six contacts. With a lifecycle of one million cycles, it ensures long-term operation. Ideal for industrial control panels, this product meets strict IP66, IP67, and IP69K standards, making your installations safer, more efficient, and ready for harsh conditions.
Get Schneider ZB5FD49 today—built for robust industrial control and long-lasting durability.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FD49?
You can click on the BUY or RFQ button to purchase ZB5FD49 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FD49?
You can download the ZB5FD49 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FD49?
Schneider Electric
