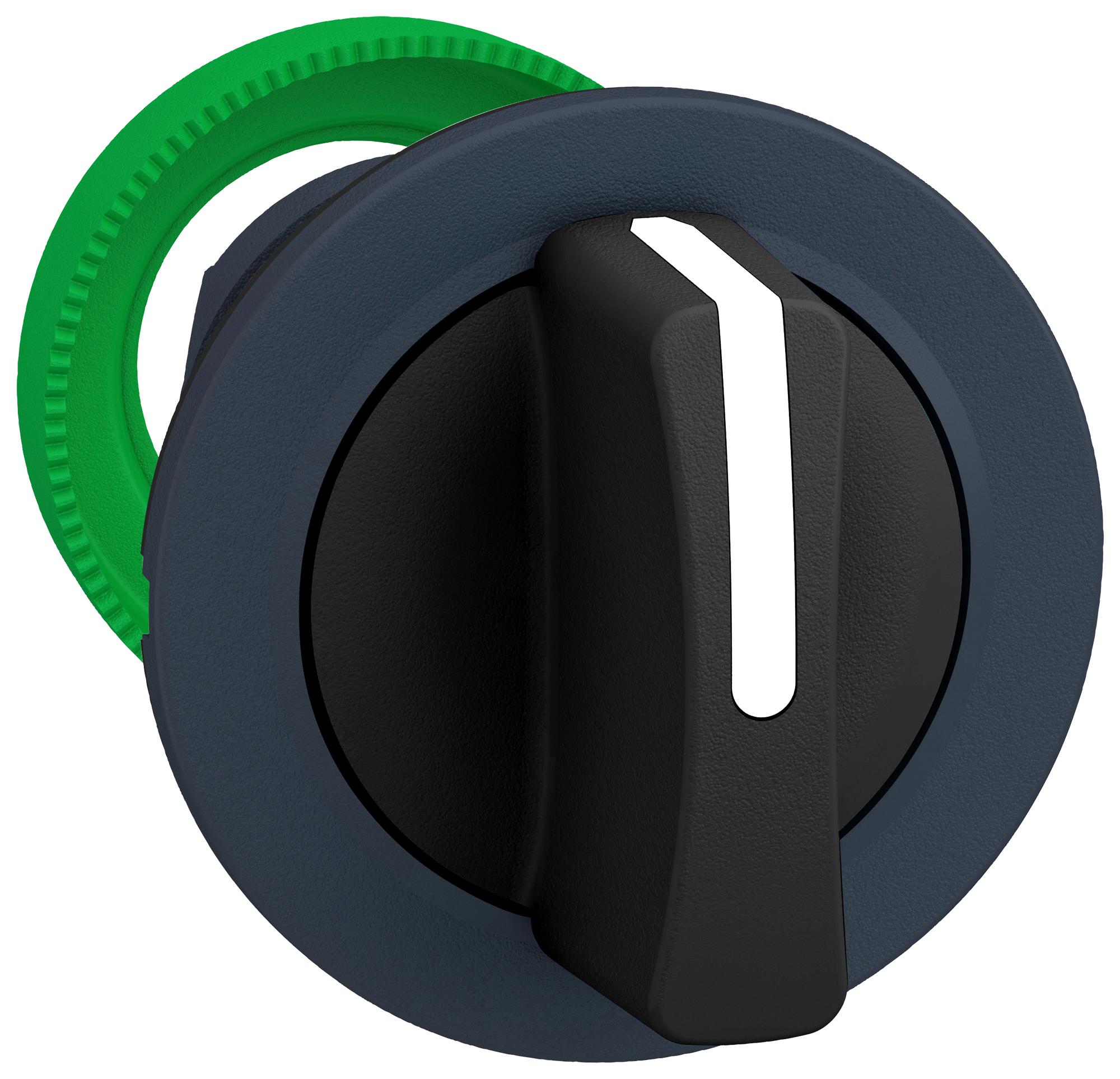

Schneider Electric ZB5FD5 Selector Switch
The flush-mounted black selector switch head features a three-position, center spring return operator with a round shape, suitable for industrial control panels. Constructed with dark grey plastic, it has mounting diameter 30 mm, overall dimensions of 37 mm width and height, and depth of 46 mm. This rugged switch supports up to 1,000,000 mechanical cycles, complies with IP66 and IP69K ratings for protection against dust and water, and withstands high-pressure washing. Certified under UL, CSA, and IEC standards, it ensures reliable performance in demanding environments.
Schneider Electric ZB5FD5 Selector Switch Specifications:
- Mounting diameter: 30 mm (1.18 in)
- Shape: Round
- Head type: Built-in-flush
- Operator profile: Black standard handle
- Number of positions: 3 (+/- 45° rotation)
- Overall width: 37 mm (1.46 in)
- Overall height: 37 mm (1.46 in)
- Overall depth: 46 mm (1.81 in)
- Material: Dark grey plastic
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms) (IEC 60068-2-27)
- Mechanical durability: 1,000,000 cycles
- Ingress Protection: IP66, IP69K (IEC 60529)
- Operating temperature: -40°C to +70°C
- Standards: EN/IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
- Certifications: UL Listed, CSA, Lloyds, BV, DNV, RINA
- Resistance to high-pressure washer: 7,000,000 Pa at 55°C
- Weight: 0.07 lb (0.031 kg)
Buy the Schneider ZB5FD5 – Reliable Selector Switch for Industrial Applications
Order the Schneider ZB5FD5 selector switch today for robust, high-performance control in demanding industrial environments. Designed with durable plastic and IP66/IP69K ratings, this 3-position switch ensures reliable operation across various applications. Its high cycle durability of 1,000,000 cycles guarantees long-term use, supporting safety and operational efficiency. Easy to install with a 30 mm mounting diameter, it conforms to international safety standards and certifications. Purchase online now to enhance your control panel with reliable, industrial-grade components designed for optimal longevity and safety.
Get Schneider ZB5FD5 today—built for precision, long-lasting durability, and industrial reliability.
