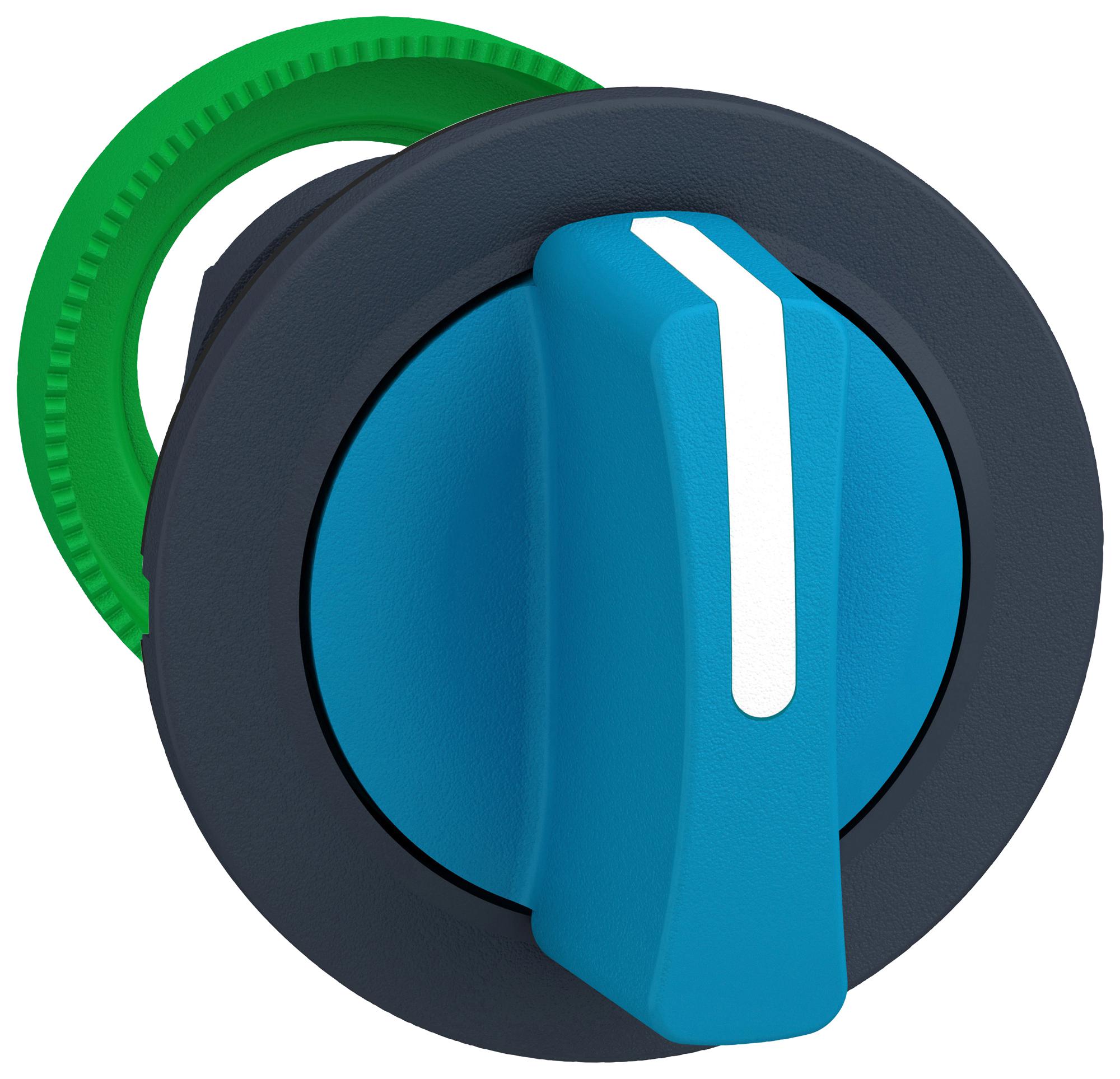

Schneider Electric ZB5FD506 Selector Switch
The ZB5FD506 is a flush-mounted, round, blue selector switch head with three positions and center spring return. Designed for industrial control panels, it features a dark grey plastic bezel, a mounting diameter of 30 mm, and a compact overall size of 37 mm by 37 mm with a depth of 46 mm. It supports 1,000,000 cycles, meets IP66, IP69K, and NEMA 4X, 13 standards, and withstands harsh environments including high-pressure wash resistance. Suitable for automation and control applications, it complies with safety and durability standards. Ideal for machinery and process control. Material is durable plastic, rated for -40 to 70°C environments and is CSA, UL, and IEC certified.
Schneider Electric ZB5FD506 Selector Switch Specifications:
- Shape of signaling unit: Round head
- Mounting diameter: 30 mm
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 46 mm
- Material: Dark grey plastic bezel
- Number of cycles: 1,000,000
- Protection rating: IP66, IP69K, NEMA 4X, 13
- Temperature range: -40°C to +70°C
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: CSA, UL, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, JIS C8201-1
- Certifications: UL Listed, CSA, DNV, BV, RINA, Lloyds
- Protection against high-pressure washer: 7,000,000 Pa at 55°C
- Environmental: RoHS, REACh compliant, Mercury and heavy metal free
- Weight: 0.07 lb (0.031 kg)
Buy the Schneider ZB5FD506 – Reliable Selector Switch for Industrial Applications
Purchase the Schneider ZB5FD506 selector switch online today for your industrial automation projects. With a durable plastic construction, it offers three positions with center spring return, ensuring reliable operation. Its IP66 and IP69K ratings provide excellent protection against dust, water, and high-pressure wash environments, making it ideal for harsh industrial settings. Certified by UL, CSA, and IEC standards, this switch guarantees safety, durability, and long cycle life—perfect for machinery, control panels, and process automation. Invest in quality and secure your projects now.
Order your Schneider Series ZB5FD506 selector switch today and give your control panels the dependable quality they deserve, with robust environmental protection and high durability.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FD506?
You can click on the BUY or RFQ button to purchase ZB5FD506 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FD506?
You can download the ZB5FD506 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FD506?
Schneider Electric
