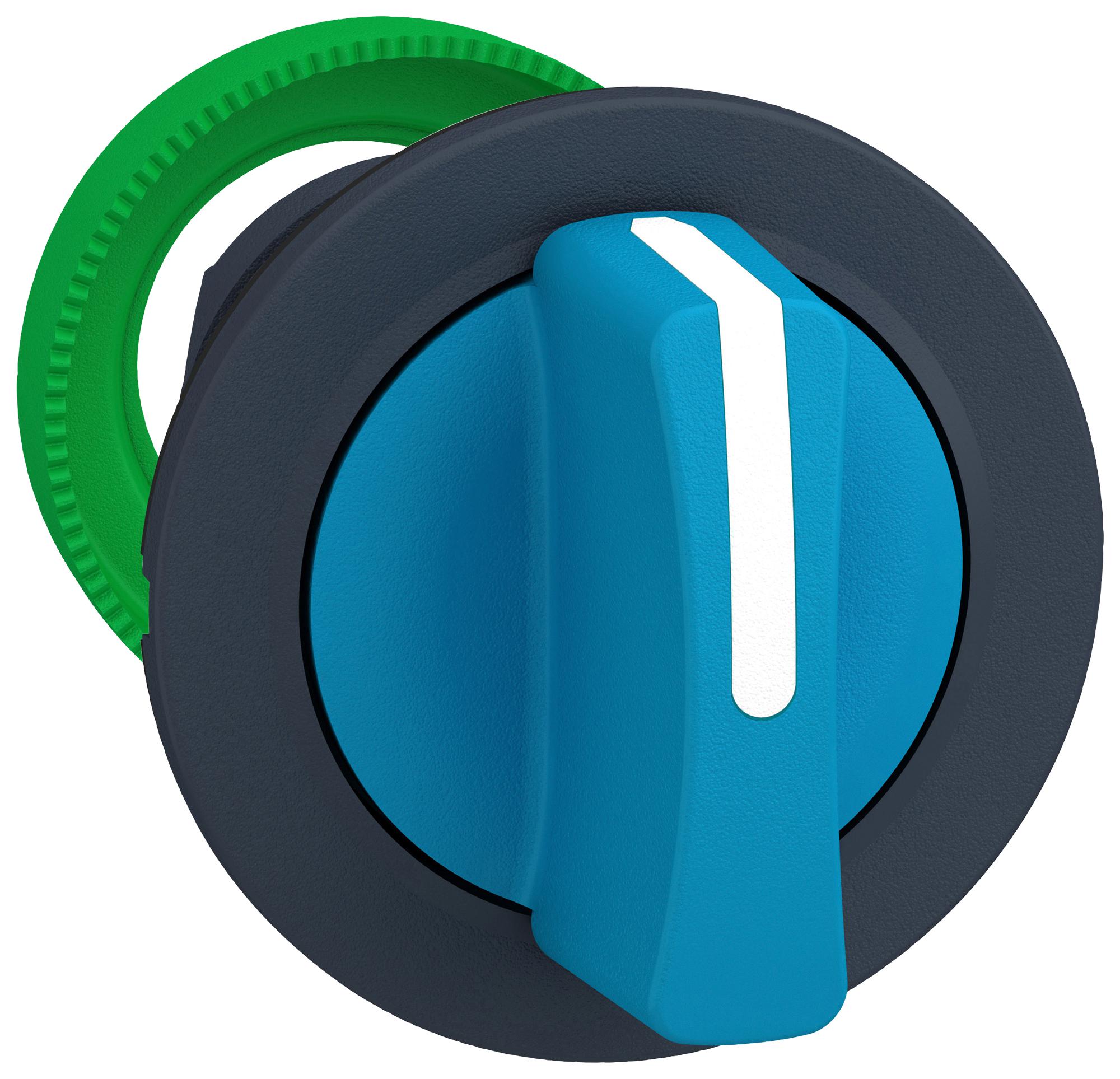

Schneider Electric ZB5FD806 Selector Switch
The ZB5FD806 is a flush-mounted blue selector switch head with 3 positions, designed for industrial control applications. It features a built-in-flush head type with a right-to-center spring return operator profile and a blue standard handle. The switch supports 3 positions at ±45°, with a mounting diameter of 30 mm and overall dimensions of 37 mm in width and height, and 46 mm in depth. It is designed for durability, with a mechanical life of 1,000,000 cycles, conforming to IP66/IP69K protection standards, making it suitable for demanding environments. Certifications include UL, CSA, and others, ensuring compliance with global safety and quality standards.
Schneider Electric ZB5FD806 Selector Switch Specifications:
- Operating temperature: -40...158 °F (-40...70 °C)
- Mounting diameter: 30 mm
- Dimensions: width 37 mm, height 37 mm, depth 46 mm
- Material: Dark grey plastic bezel
- Head type: Built-in-flush
- Number of positions: 3 at ±45°
- Mechanical durability: 1,000,000 cycles
- Protection: IP66, IP69K, NEMA 13, NEMA 4X
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: EN/IEC 60947-1, IEC 60947-5-1, UL 508, CSA, JIS C8201-5-1
- Certifications: UL Listed, CSA, DNV, RINA, Lloyd's Register, BV, GL
- Weight: 0.07 lb (0.031 kg)
Buy the Buy Schneider Electric ZB5FD806 Part Number ZB5FD806 Online
Purchase the Schneider Electric ZB5FD806 selector switch head online today. Its robust design, IP66/IP69K protection, and 1,000,000 cycle durability ensure dependable performance in demanding industrial environments. Perfect for controls requiring 3 positions with precise ±45° operation, all within compact dimensions. Fast, easy ordering allows project managers and technicians to equip control panels efficiently. Rely on this high-quality, certified switch for safety and long-lasting operation, supported by globally recognized standards and certifications for industrial reliability.
Order your Schneider Electric Series ZB5FD806 flush-mounted blue selector switch head today and ensure reliable control with durability and IP66/IP69K protection.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FD806?
You can click on the BUY or RFQ button to purchase ZB5FD806 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FD806?
You can download the ZB5FD806 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FD806?
Schneider Electric
