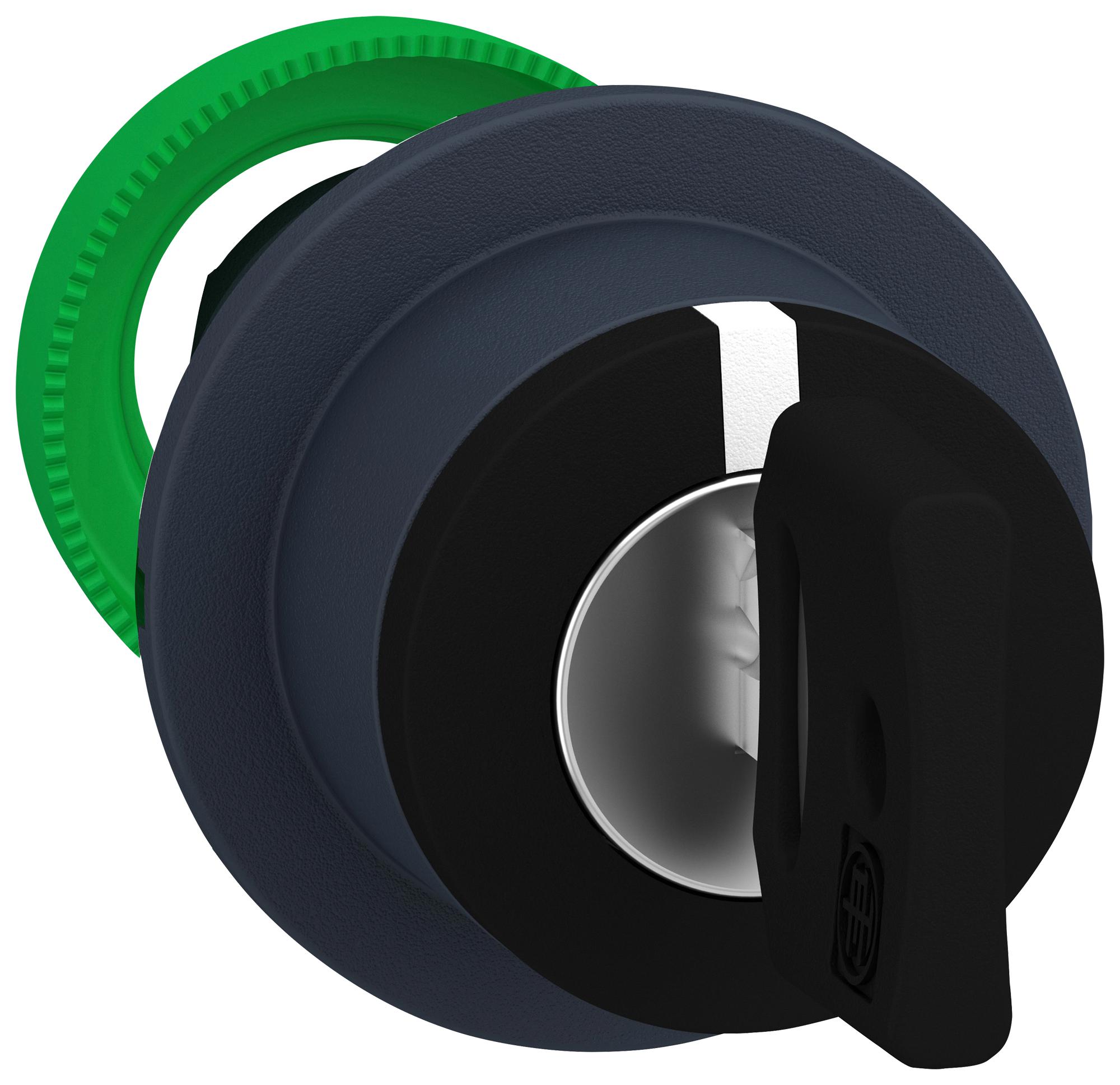

Schneider Electric ZB5FG03D Selector Switch
The ZB5FG03D is a flush-mounted selector switch head with a round shape and a black operator profile, designed for industrial control applications. It features a 3-position stay-put switch with a key lock (Dom 8D1), mounted on a 30 mm diameter bezel made of dark grey plastic. The switch supports over 1 million mechanical cycles, is IP66/IP67/IP69 rated for protection against dust and water, and offers multiple contact configurations conforming to standards like IEC 60947-1 and UL 508. Suitable for harsh environments with temperature ratings from -40°C to +70°C, it is certified by UL, CSA, Lloyd's Register, DNV, GL, RINA, and BV, ensuring high reliability for safety-critical automation systems.
Schneider Electric ZB5FG03D Selector Switch Specifications:
- Mounting diameter: 30 mm
- Shape: Round
- Head type: Built-in-flush
- Head material: Dark grey plastic
- Operator profile: Black key switch
- Operator position: 3 positions +/- 45°
- Key withdrawal position: Left and center
- Overall dimensions: Width 1.46 in (37 mm), Height 1.46 in (37 mm), Depth 2.83 in (72 mm)
- Net weight: 0.15 lb (0.069 kg)
- Mechanical durability: 1,000,000 cycles
- Environmental protection: IP66/IP67/IP69K, NEMA 13, NEMA 4X
- Temperature range: -40°C to +70°C
- Overvoltage category: Class II (IEC 60536)
- Certifications: UL Listed, CSA, Lloyd's Register, DNV, GL, RINA, BV
- Standards: IEC 60947-1, IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, CSA C22.2 No 14
- Resistance: Vibration 5 gn, Shock 30-50 gn
- Compliance: RoHS, China RoHS, REACh, Mercury-Free
- Package weight: 0.14 lb (0.06 kg)
- Package dimensions: Height 3.39 in, Width 1.69 in, Length 2.05 in
Buy the Schneider Electric ZB5FG03D – Reliable Selector Switch for Industrial Applications
Secure your automation system with the Schneider Electric ZB5FG03D selector switch head. Designed for durability, it features a robust IP69 rating, supporting high protection against dust and water. Its 3-position key lock operator enhances safety in challenging environments. Trusted worldwide, this switch supports over 1 million cycles, making it ideal for industrial control panels requiring long-lasting, reliable operation. Easy to install with a 30 mm mounting diameter, it ensures high-performance, safety compliance, and durability for demanding industrial automation setups.
Buy Schneider Electric ZB5FG03D now and experience unmatched reliability and performance for demanding industrial control environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG03D?
You can click on the BUY or RFQ button to purchase ZB5FG03D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG03D?
You can download the ZB5FG03D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG03D?
Schneider Electric
