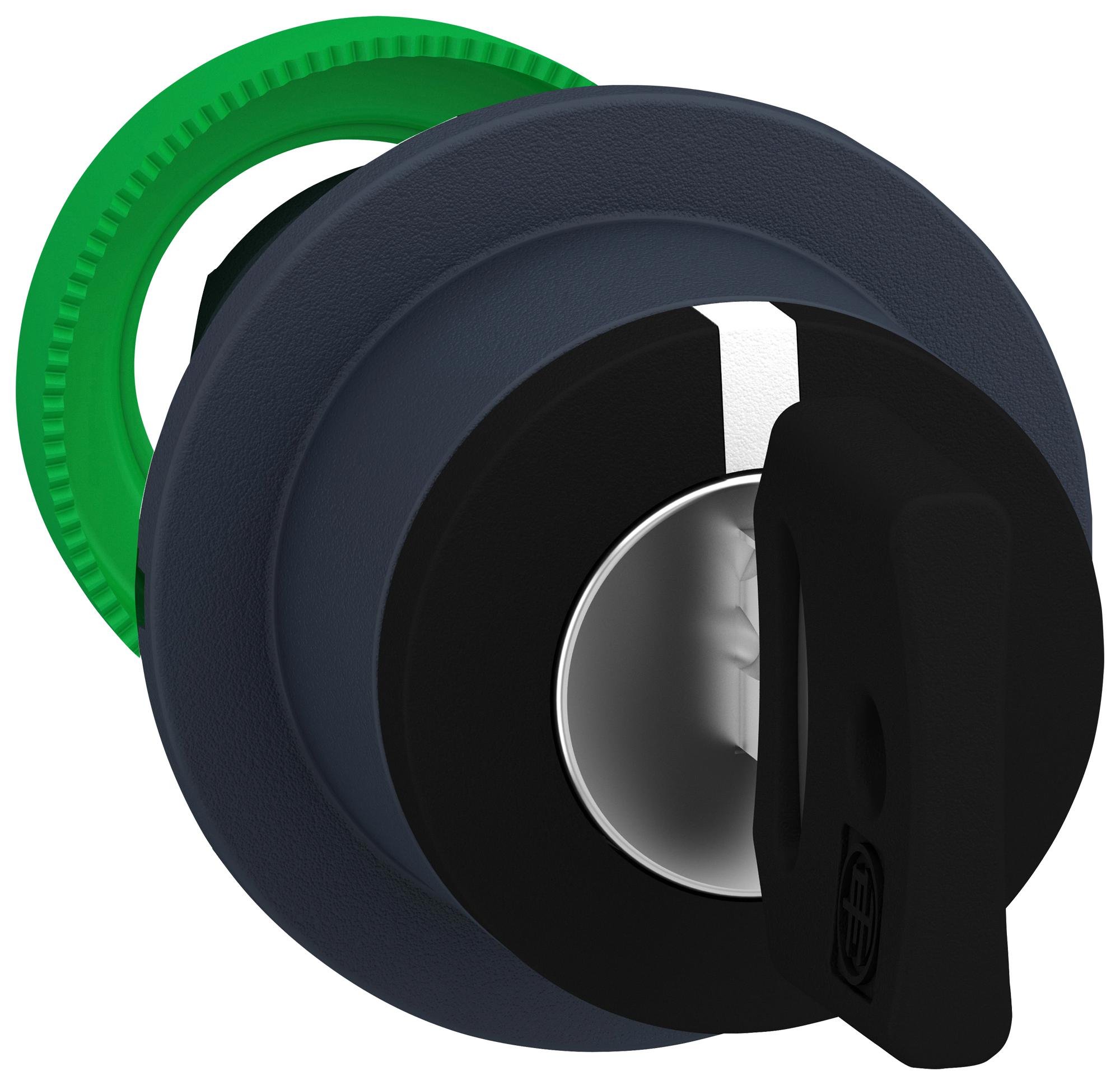

Schneider Electric ZB5FG08 Selector Switch
The ZB5FG08 is a flush-mounted selector switch head with a black operator profile and three positions, designed for industrial control applications. Made from dark grey plastic with a round shape, it features a right to center spring return operator with a Ronis 455 keylock and left key withdrawal. The switch head measures 37 mm in diameter, with a depth of 72 mm and a weight of 0.15 lbs. It offers high durability with 1,000,000 cycles and is rated IP66, IP67, IP69K for protection against dust and water. Certified for safety standards including UL 508 and IEC, it can withstand high-pressure washings and harsh environments, making it suitable for demanding manufacturing and automation tasks.
Schneider Electric ZB5FG08 Selector Switch Specifications:
- Mounting diameter: 30 mm (1.18 in)
- Overall width: 37 mm (1.46 in)
- Overall height: 37 mm (1.46 in)
- Overall depth: 72 mm (2.83 in)
- Shape: Round, built-in-flush head
- Operator profile: Black key switch
- Positions: 3 with +/- 45° rotation
- Operator type: Right to center spring return
- Keylock: Ronis 455, left withdrawal
- Weight: 0.15 lbs (0.069 kg)
- Mechanical durability: 1,000,000 cycles
- Protection degrees: IP66, IP67, IP69K, NEMA 13, NEMA 4X
- Environmental ratings: -40°C to +70°C, overvoltage category Class II
- Certifications: UL Listed, CSA, DNV, GL, Lloyds Register, RINA, BV
- Resistance to high pressure washing: 7,000,000 Pa at 55°C
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30 gn IEC 60068-2-27 (18 ms), 50 gn IEC 60068-2-27 (11 ms)
Buy the Schneider Electric Series Harmony XB5 Selector Switch: ZB5FG08
Order the Schneider Electric ZB5FG08 selector switch head online today. This durable, high-protection control component is designed for demanding environments. Its IP66, IP67, and IP69K ratings ensure excellent dust and water resistance. With a rugged construction supporting over a million cycles, it provides long-term reliability. Ideal for industrial automation, it features a black operator profile, 3 positions, and a robust keylock for security. Purchase now to enhance your control panels with a top-quality, certified switch head that guarantees safety and durability across applications.
Buy Schneider Electric ZB5FG08 now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG08?
You can click on the BUY or RFQ button to purchase ZB5FG08 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG08?
You can download the ZB5FG08 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG08?
Schneider Electric
