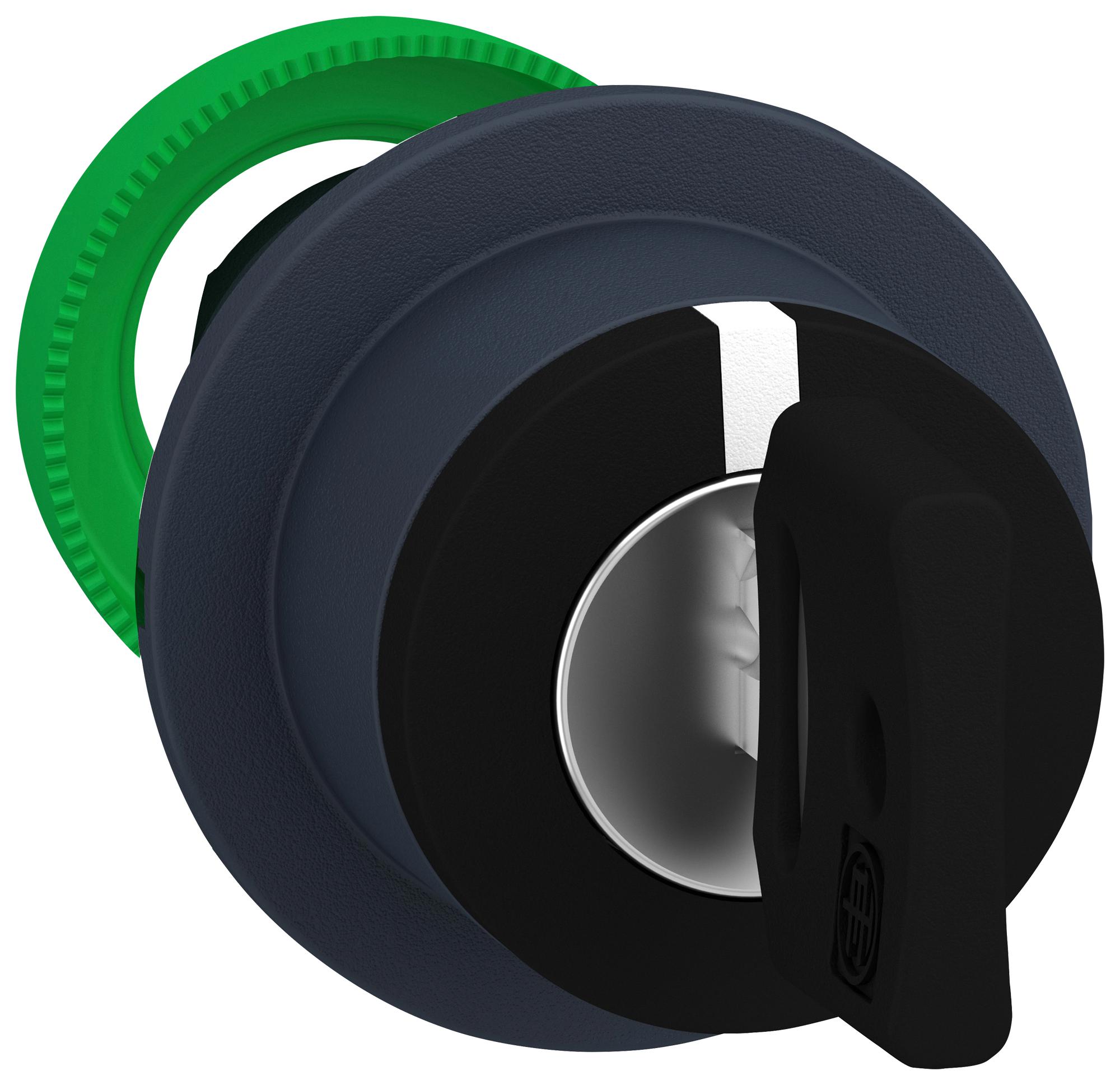

Schneider Electric ZB5FG09 Pushbutton Switch
The ZB5FG09 is a built-in-flush head key selector switch designed for industrial applications. It features a round shape with a dark grey plastic bezel, and supports 3 positions with a stay put operator profile. The switch has a mounting diameter of 30 mm and measures approximately 37 mm in width and height, with a depth of 72 mm. It is constructed for durability, rated for 1,000,000 cycles, and complies with IP66/67/69K and NEMA 13/4X standards. Suitable for rugged environments, it offers high resistance to mechanical shocks, vibrations, and high-pressure washing, making it ideal for demanding industrial control systems.
Schneider Electric ZB5FG09 Pushbutton Switch Specifications:
- Mounting diameter: 30 mm
- Head type: Built-in-flush
- Shape: Round
- Operator profile: Stay put
- Number of positions: 3 (+/- 45°)
- Keylock type: Ronis 455
- Key withdrawal position: Right
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 72 mm
- Net weight: 0.069 kg
- Mechanical durability: 1,000,000 cycles
- Ingress Protection: IP66, IP67, IP69K
- NEMA protection: 13, 4X
- Resistance to high-pressure washer: 7,000,000 Pa at 55°C
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: EN/IEC 60947-5-1/4, JIS C8201-5-1/ C8201-1, UL 508
- Certifications: UL Listed, CSA, RINA, BV, GL, DNV, Lloyds
- Environmental resistance: Temperature -40°C to 70°C, IP66/67/69K, NEMA 13/4X
Buy the Schneider Electric ZB5FG09 – Reliable Selector Switch for Industrial Applications
Enhance your industrial control systems with the durable and high-quality ZB5FG09 pushbutton switch. Designed for demanding environments, this switch features IP66/67/69K protection, a robust build for 1,000,000 cycles, and support for multiple standards including IEC and UL. Its rugged construction withstands vibration, shocks, and high-pressure washings, ensuring reliable operation in diverse applications. Easily integrate this switch into your control panels and benefit from its long-lasting performance and safety compliance. Order online today for fast delivery and seamless installation.
Order your Schneider Electric ZB5FG09 series built-in-flush head key selector switch today and equip your control panels with durable, high-performance components.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG09?
You can click on the BUY or RFQ button to purchase ZB5FG09 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG09?
You can download the ZB5FG09 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG09?
Schneider Electric
