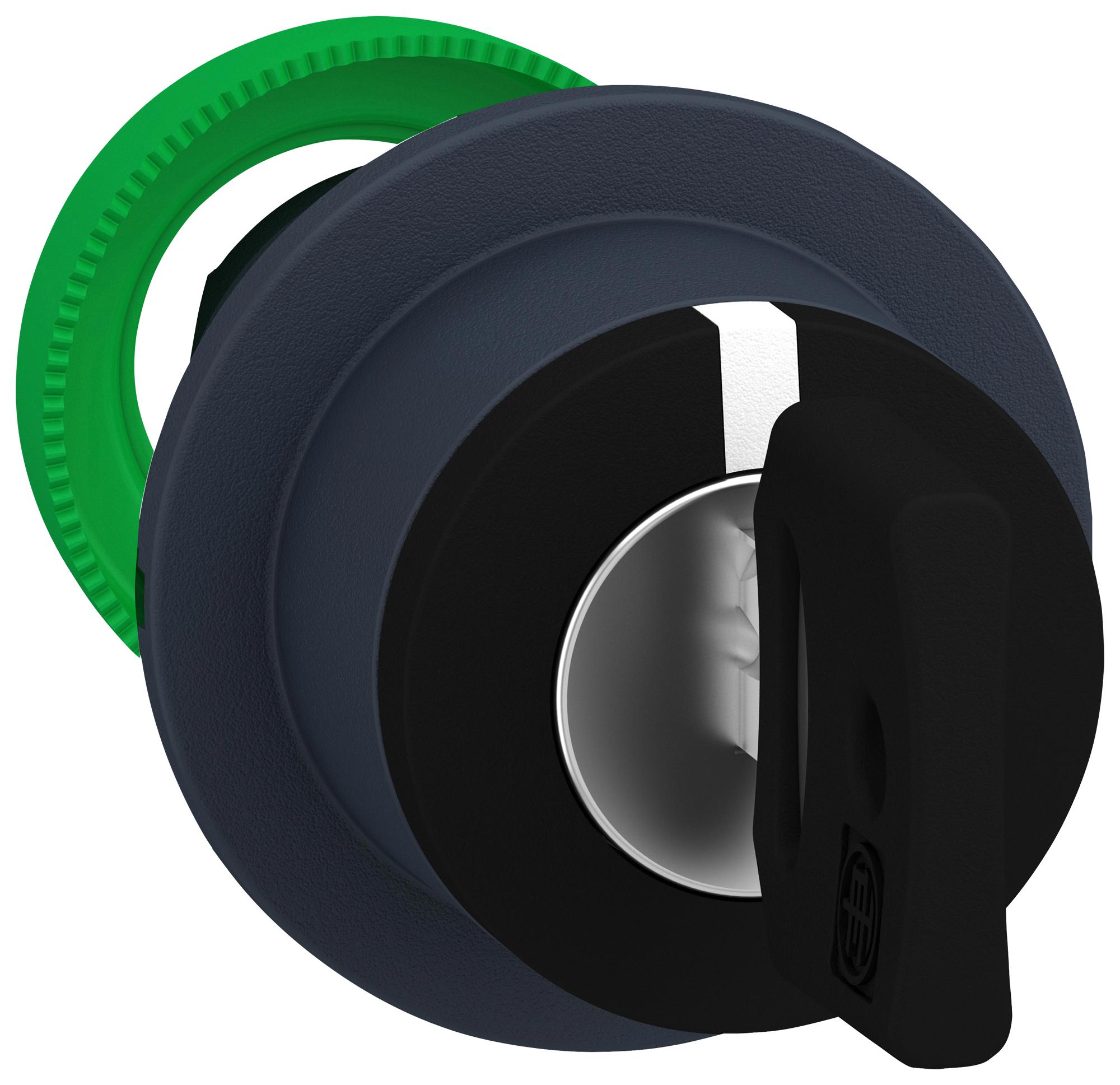

Schneider Electric ZB5FG1D Selector Switch
The ZB5FG1D is a flush-mounted selector switch head designed for industrial automation. It features a black key switch operator with three positions (+/- 45°) and a durable built-in-flush head. The switch supports multiple contact options with robust certifications including UL, CSA, and NEMA 4X/IP66/IP67/IP69K ratings, ensuring protection against harsh environments. Its compact size, 1.46 in height and width, and mechanical durability of 1,000,000 cycles make it ideal for control panels requiring reliable, long-lasting switching operations in demanding industrial settings.
Schneider Electric ZB5FG1D Selector Switch Specifications:
- Mounting diameter: 1.18 inches (30 mm)
- Head type: Built-in-flush
- Shape: Round
- Operator: Left to center spring return
- Operator profile: Black key switch
- Keylock Type: Dom 8D1
- Overall width: 1.46 inches (37 mm)
- Overall height: 1.46 inches (37 mm)
- Overall depth: 2.83 inches (72 mm)
- Net weight: 0.15 lb (0.069 kg)
- Mechanical durability: 1,000,000 cycles
- Temperature range: -40°F to +158°F (-40°C to +70°C)
- IP ratings: IP66, IP67, IP69K
- NEMA ratings: 13, 4X
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (IEC 60068-2-27)
- Certifications: UL Listed, CSA, BV, DNV, Lloyd's Register
- Standards: EN/IEC 60947-1, JIS C8201-5-1, UL 508, CSA C22.2 No 14
Buy the Schneider ZB5FG1D – Reliable Selector Switch for Industrial Applications
Purchase the Schneider ZB5FG1D selector switch online today and ensure your industrial control systems operate smoothly with a high-quality, durable device. Its robust certifications, IP ratings, and long mechanical lifespan make it perfect for demanding environments. Easy to install with a compact design, this switch offers precise operation for 3-position key selection, ensuring safety and reliability. Order now to enhance your automation setup with a trusted industrial component designed for lasting performance.
Buy Schneider ZB5FG1D now and experience unmatched reliability and performance in industrial control and automation.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG1D?
You can click on the BUY or RFQ button to purchase ZB5FG1D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG1D?
You can download the ZB5FG1D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG1D?
Schneider Electric
