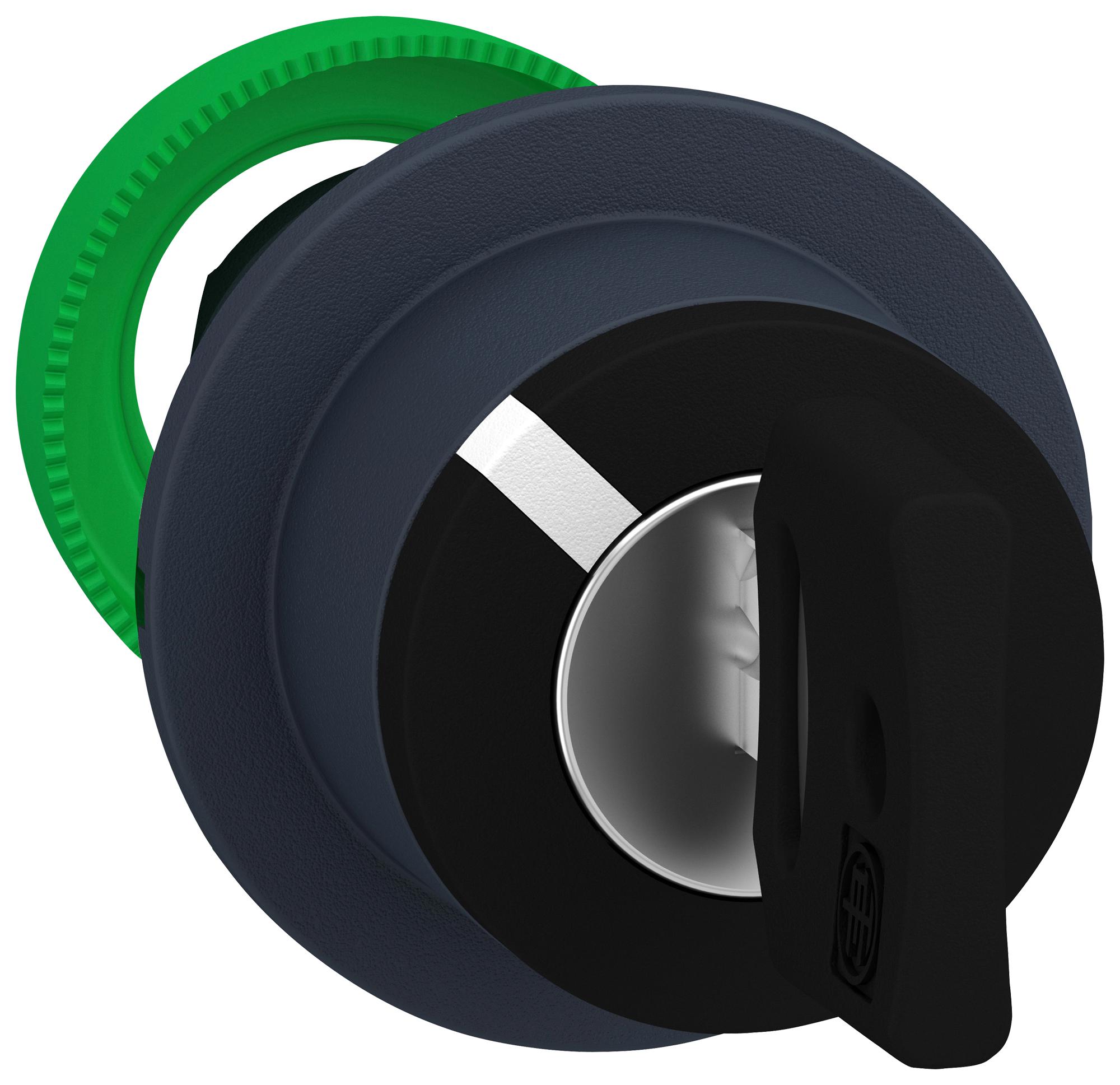

Schneider Electric ZB5FG2D Selector Switch Head
The ZB5FG2D is a built-in flush-mounted selector switch head with a black operator profile and a round signaling unit shape. It features two positions at 90°, a key lock with left withdrawal, and has a mounting diameter of 30 mm. The switch head is made of dark grey plastic, with a net weight of 0.15 lb, and is highly durable with 1,000,000 mechanical cycles. It meets IEC and UL standards, with IP66, IP67, and IP69 ratings, suitable for harsh environments and demanding industrial applications.
Schneider Electric ZB5FG2D Selector Switch Head Specifications:
- Mounting diameter: 30 mm
- Shape: Round signaling unit
- Head type: Built-in-flush
- Operator profile: Black key switch
- Operator positions: 2 at 90°
- Key withdrawal position: Left
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 2.83 in (72 mm)
- Weight: 0.15 lb (0.069 kg)
- Mechanical durability: 1,000,000 cycles
- Ingress Protection: IP66, IP67, IP69, IP69K
- NEMA ratings: 13, 4X
- Temperature: -40°C to +70°C
- Standards: IEC 60947-5-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (IEC 60068-2-27) for 18 ms, 50 gn for 11 ms
- Certifications: UL Listed, CSA, BV, GL, DNV, RINA, Lloyds Register
- Enclosure ratings: IP66, IP67, IP69, IP69K
- Environmental resistance: High pressure washer resistant at 7,000,000 Pa
- Material: Dark grey plastic
- Country of origin: France
Buy the Schneider Electric Series Harmony XB5 Selector Switch: ZB5FG2D
Order the Schneider Electric ZB5FG2D selector switch head online today to ensure reliable, durable control panel operation. Designed for demanding industrial environments, it features IP69K protection, a robust round design, and a key lock for safety. Perfect for automation, control systems, and machinery, this switch head offers exceptional mechanical lifespan with 1 million cycles. Its compact size and high environmental resistance make it ideal for versatile industrial applications. Purchase now for dependable performance and easy integration into your control solutions.
Get Schneider Electric ZB5FG2D today—built for precision, durability, and harsh industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG2D?
You can click on the BUY or RFQ button to purchase ZB5FG2D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG2D?
You can download the ZB5FG2D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG2D?
Schneider Electric
