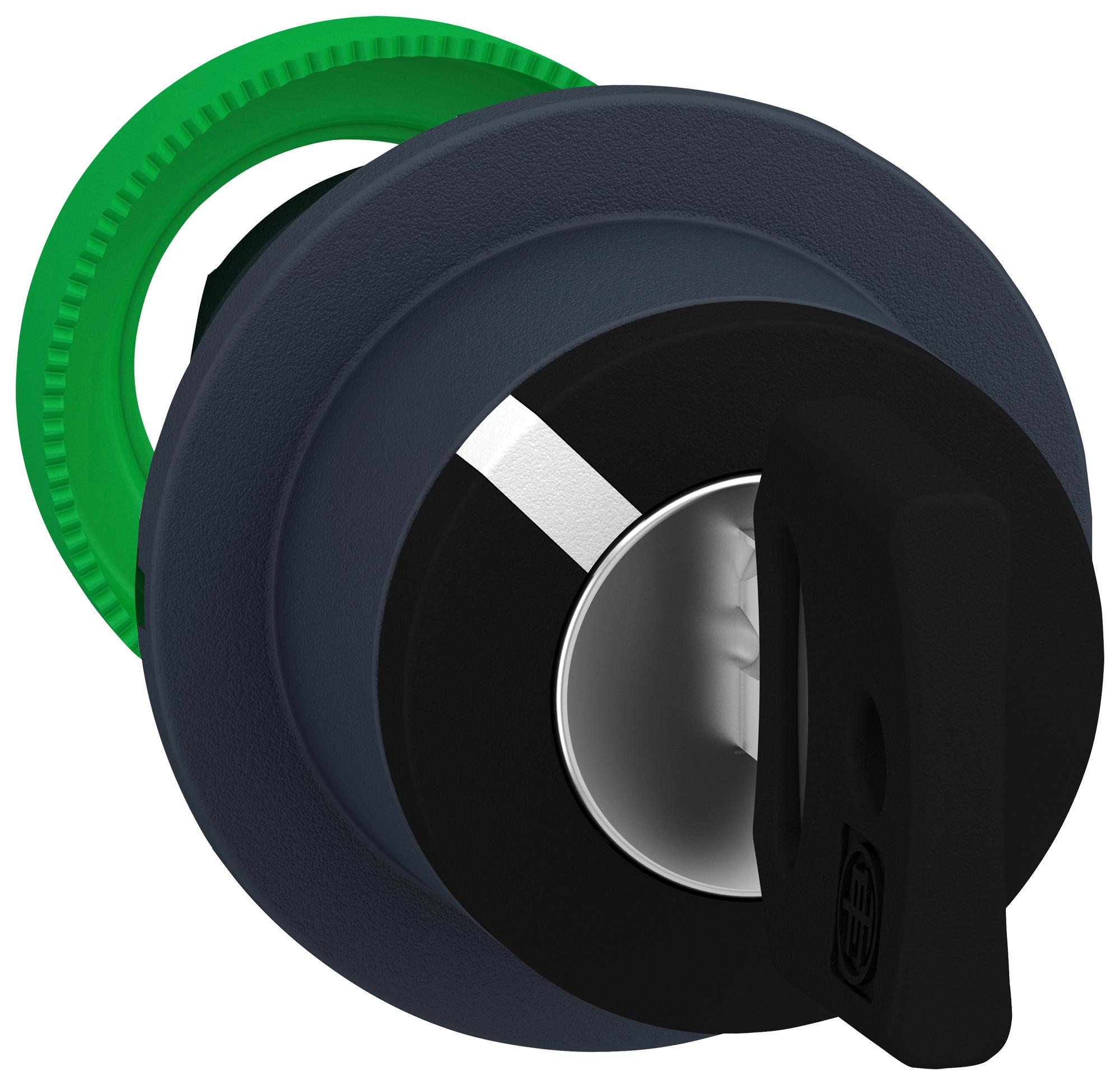

Schneider Electric ZB5FG4D Selector Switch Head
The ZB5FG4D is a flush-mounted selector switch head designed for industrial control applications, featuring a black operator profile and a round shape that ensures easy operation. With a mounting diameter of 30 mm and overall dimensions of 37 mm in width and height, it offers high durability with up to 1,000,000 mechanical cycles. It is rated IP66, IP67, IP69K for water resistance, and NEMA 13, 4X, making it suitable for harsh environments. The switch incorporates a keylock with two positions, reacts well under high pressure washer resistance, and conforms to multiple standards such as UL and IEC. Its plastic bezel is dark grey, and it supports environment temperatures from -40°C to 70°C, ideal for industrial automation and safety systems.
Schneider Electric ZB5FG4D Selector Switch Head Specifications:
- Mounting diameter: 30 mm
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 72 mm
- Shape: Round
- Head type: Built-in-flush
- Operator profile: Black key switch
- Number of positions: 2, 90° apart
- Mechanical durability: 1,000,000 cycles
- Ingress protection: IP66, IP67, IP69K
- NEMA protection: 13, 4X
- Ambient temperature: -40°C to 70°C
- Vibration resistance: 5 g (IEC 60068-2-6)
- Shock resistance: 30 g for 18 ms, 50 g for 11 ms
- Material: Dark grey plastic bezel
- Weight: 0.15 lb
- Certification: UL Listed, Lloyds Register, DNV, RINA, BV, CSA, GL
- Standards: UL 508, IEC 60947-5-1, IEC 60947-1, CSA C22.2, JIS C8201-5-1
- Environmental: RoHS compliant, Mercury free, China RoHS
Buy the Schneider Electric ZB5FG4D – Reliable Selector Switch Head for Industrial Applications
Order the Schneider Electric selector switch head ZB5FG4D online now and enhance your industrial control systems. Designed for durability, it features IP66/69K protection, a robust handle with keylock for safety, and is suitable for harsh environments. Its high mechanical lifespan of one million cycles ensures long-term reliability. Easy to install, compliant with industry standards including UL and IEC, this switch head is ideal for automation, machinery, and safety controls. Purchase today for a dependable, high-quality control solution that meets your industrial needs.
Get Schneider Electric ZB5FG4D today—built for precision, durability, and reliable control in harsh industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG4D?
You can click on the BUY or RFQ button to purchase ZB5FG4D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG4D?
You can download the ZB5FG4D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG4D?
Schneider Electric
