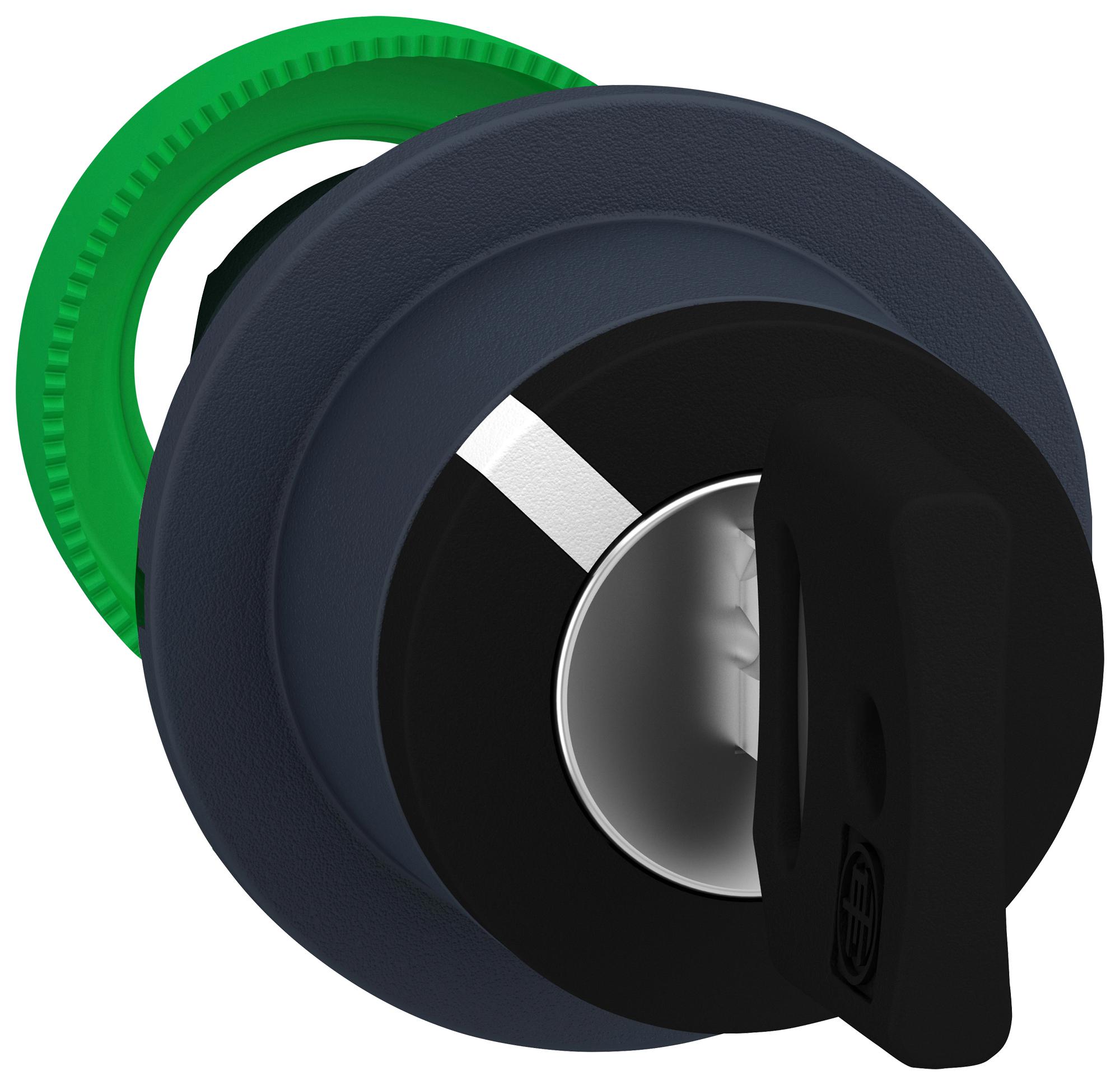

Schneider Electric ZB5FG6D Selector Switch Head
The ZB5FG6D is a flush-mounted selector switch head designed for industrial control panels. It features a round shape with a black key switch operator profile that provides two positions with 90° movement, suitable for right-to-left spring return. The switch head is constructed from dark grey plastic with a mounting diameter of 30 mm (1.18 inches). Rated for up to 1,000,000 mechanical cycles, it complies with IEC standards, including IP66, IP67, and IP69 protection levels, and is certified by UL, CSA, and Lloyd's Register. It is ideal for harsh environments requiring reliable operation and enhanced durability, with certifications ensuring compliance with safety and environmental standards.
Schneider Electric ZB5FG6D Selector Switch Head Specifications:
- Bezel material: Dark grey plastic
- Mounting diameter: 1.18 inches (30 mm)
- Head type: Built-in-flush
- Shape: Round
- Operator profile: Black key switch
- Operator position: 2 positions 90°
- Type of keylock: Dom 8D1
- Key withdrawal: Left
- Mechanical durability: 1,000,000 cycles
- IP ratings: IP66, IP67, IP69
- NEMA ratings: 13, 4X
- Ambient temperature for operation: -40 to 158 °F (-40 to 70 °C)
- Certifications: UL Listed, CSA, Lloyds Register, RINA, DNV, GL, BV
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
- Standards compliance: EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, IEC 60068-2-6, IEC 60068-2-27
Buy the Buy Harmony XB5 Selector Switch Head Part Number ZB5FG6D Online
Order the Harmony XB5 selector switch head ZB5FG6D online today to ensure reliable control with high durability. Designed for harsh industrial environments, it features IP66/IP67/IP69 ratings and withstands over one million cycles. Its round shape and 90° two-position operation make it versatile for various applications. Certified for safety and environmental standards, this switch head combines quality and durability, making it the ideal choice for control panels requiring robust and long-lasting components. Purchase now for efficient and dependable operation.
Buy Harmony XB5 ZB5FG6D now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG6D?
You can click on the BUY or RFQ button to purchase ZB5FG6D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG6D?
You can download the ZB5FG6D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG6D?
Schneider Electric
