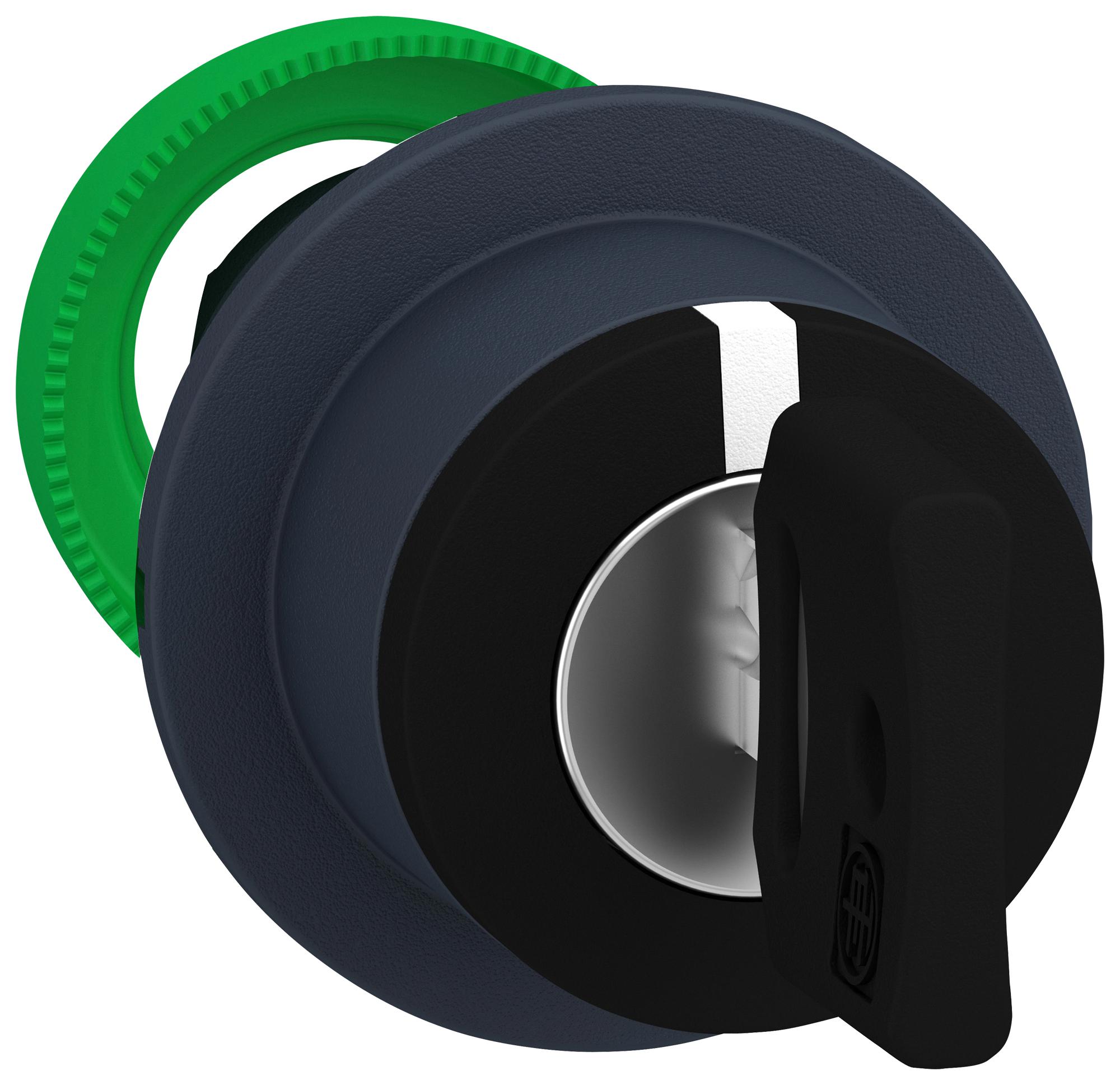

Schneider Electric ZB5FG7D Selector Switch Head
The ZB5FG7D is a flush-mounted selector switch head designed for industrial automation and control systems. It features a round shape with a black key switch operator profile, three positions with +/- 45° adjustment, and a durable dark grey plastic bezel. The device supports high mechanical durability up to 1,000,000 cycles, and boasts an IP66/IP67/IP69 protection rating suitable for harsh environments. It operates within a wide temperature range from -40°C to +70°C and complies with IEC, UL, CSA, and other safety standards, making it ideal for demanding control panel applications.
Schneider Electric ZB5FG7D Selector Switch Head Specifications:
- Mounting diameter: 30 mm
- Shape: Round
- Head type: Built-in-flush
- Bezel material: Dark grey plastic
- Operator profile: Black key switch
- Operator position: 3 positions +/- 45°
- Type of keylock: Dom 8D1
- Mechanical durability: 1,000,000 cycles
- Protection ratings: IP66, IP67, IP69
- Operating temperature: -40°C to +70°C
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 2.83 in (72 mm)
- Net weight: 0.15 lb (0.069 kg)
- Standards: IEC 60947-1, IEC 60947-5-4, UL 508, CSA, JIS C8201-5-1
- Certifications: UL Listed, Lloyds Register, BV, DNV, RINA
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms)
- Environmental: Suitable for -40°C to +70°C ambient
- Ingress protection: IP66/IP67/IP69K
Buy the Schneider Series ZB5 Selector Switch: ZB5FG7D
Order the Schneider ZB5FG7D selector switch head online today for robust design and high durability. With IP66/IP67/IP69 ratings, it ensures reliable operation in demanding environments. Its three-position key operator profile and built-in-flush round shape make it ideal for industrial control panels. This switch supports over 1 million cycles, complies with multiple safety standards, and operates efficiently from -40°C to +70°C, providing a dependable solution for automation and machinery controls. Shop now for seamless integration and long-lasting performance.
Buy Schneider ZB5FG7D now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FG7D?
You can click on the BUY or RFQ button to purchase ZB5FG7D from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FG7D?
You can download the ZB5FG7D datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FG7D?
Schneider Electric
