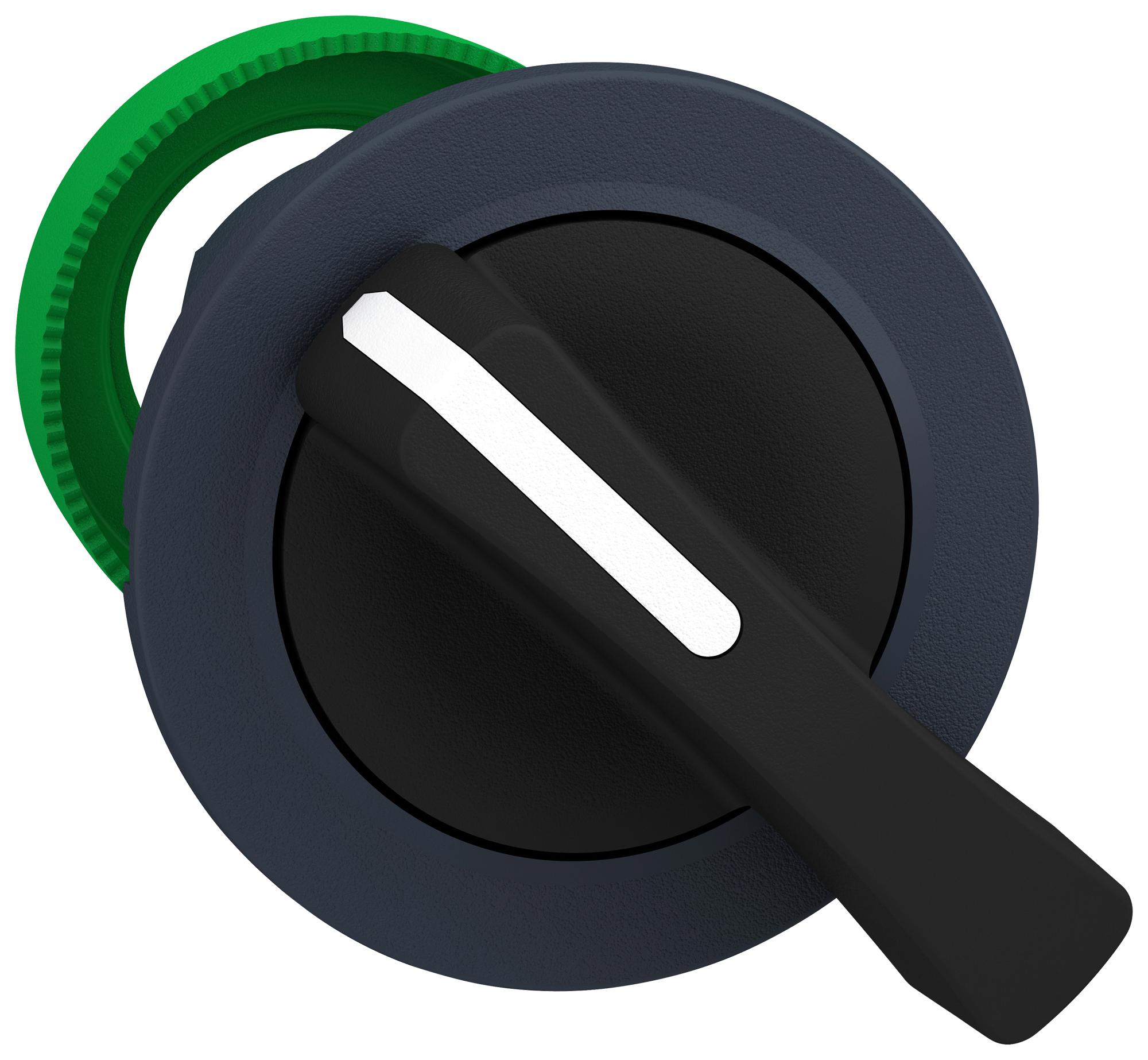

Schneider Electric ZB5FJ7 Selector Switch Head
The black selector switch head designed for flush mounted installation features a robust 3-position round head with a long handle, ideal for industrial control panels. Built for durability, it withstands 1,000,000 mechanical cycles and operates reliably within -40°C to 70°C. The device complies with IEC, UL, CSA, and JIS standards, offering IP66, IP69K, and NEMA 13, 4X protection levels. Suitable for environments requiring resistance to high-pressure water, vibration, and shock, it ensures secure operation in demanding industrial settings. Easy installation with a mounting diameter of 30 mm makes it versatile for various control systems.
Schneider Electric ZB5FJ7 Selector Switch Head Specifications:
- Range of product: Harmony XB5
- Device type: Head for selector switch
- Head type: Built-in-flush
- Shape of signaling unit: Round head
- Head for selector switch: ZBS
- Bezel material: Dark grey plastic
- Mounting diameter: 1.18 in (30 mm)
- Operator profile: Black long handle, Non padlockable
- Number of positions: 3 positions ± 45°
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.81 in (46 mm)
- Net weight: 0.07 Ib (0.031 kg)
- Mechanical durability: 1,000,000 cycles
- Environmental ratings: IP66, IP69K, NEMA 13, 4X
- Protection classes: Class II IEC 60536, IK03 IEC 50102
- Operating temperature: -40°C to 70°C
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30 gn IEC 60068-2-27
- Material: Dark grey plastic bezel
- Standards: EN/IEC 60947-5-4, UL 508, CSA, JIS C8201-5-1
Buy the Schneider Electric Series XB5 ZBS Selector Switch Head: ZB5FJ7
Enhance your control panel with this durable and versatile selector switch head from Schneider Electric. Designed for flush mounting, it features a robust 3-position round head with a long handle, ensuring easy operation and high reliability. Built to withstand over a million cycles, it performs reliably in extreme environmental conditions, including harsh moisture, vibration, and shock. Compliant with international safety and standards, this IP66/IP69K rated switch is perfect for demanding industrial applications and easy to install in various control systems, ensuring long-lasting performance.
Get Schneider Electric ZB5FJ7 today—built for durability and reliable control in industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FJ7?
You can click on the BUY or RFQ button to purchase ZB5FJ7 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FJ7?
You can download the ZB5FJ7 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FJ7?
Schneider Electric
