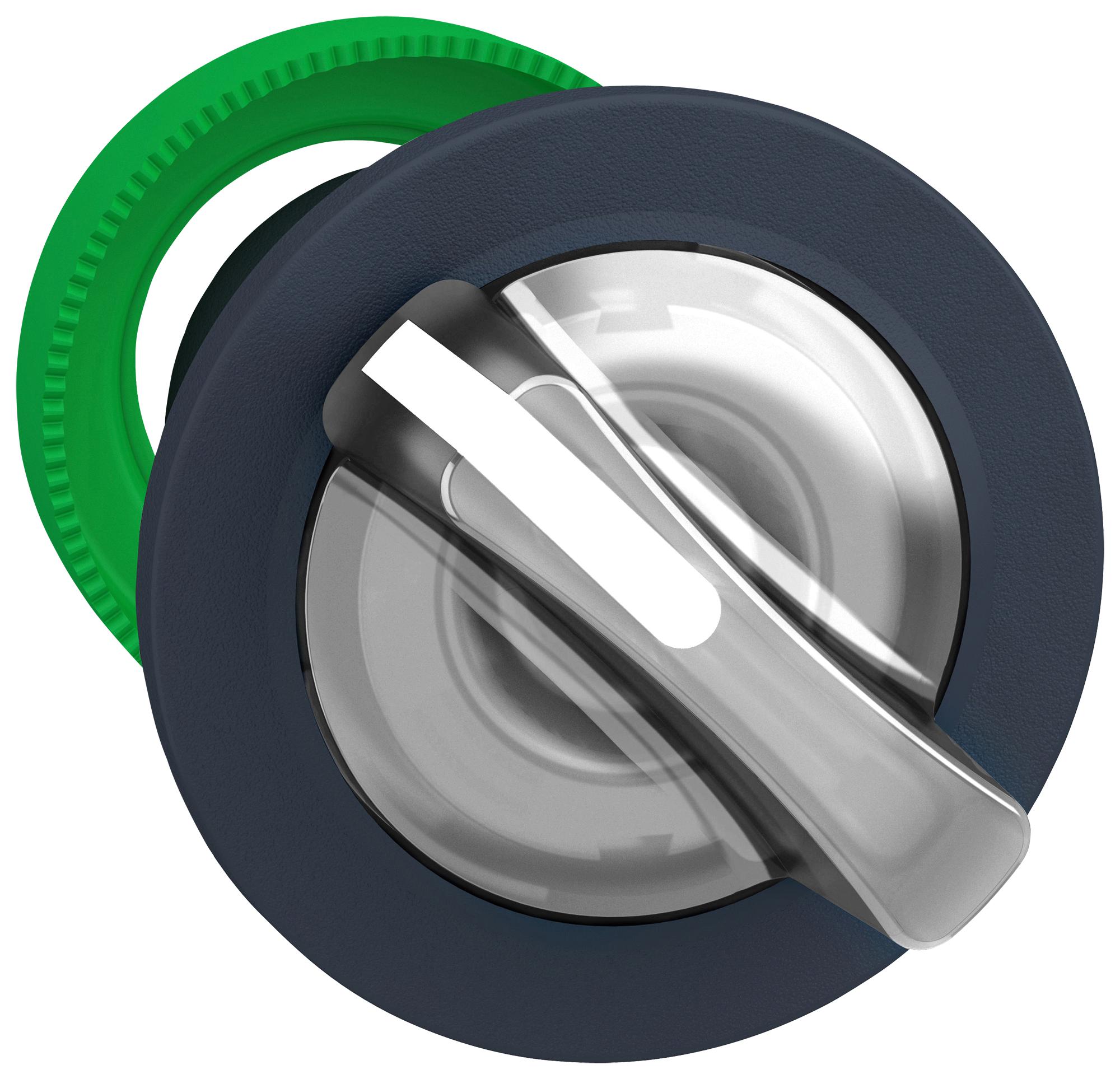

Schneider Electric ZB5FK1213 Selector Switch
The ZB5FK1213 is a flush-mounted white illuminated selector switch head designed for industrial control applications. It features a round shape with a 2-position stay-put operator profile and a durable plastic bezel. The switch supports single front mounting with integral LEDs, has a mounting diameter of 30 mm, and an overall depth of 46 mm. It is rated for 1,000,000 mechanical cycles, with an IP66/IP67/IP69K protection degree, suitable for diverse environmental conditions, and complies with international standards such as IEC, UL, and CSA. Its compact design makes it ideal for automation panels and control systems requiring reliable signaling alternatives.
Schneider Electric ZB5FK1213 Selector Switch Specifications:
- Shape of signaling unit: Round
- Head type: 2 positions, stay-put
- Mounting diameter: 30 mm
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 46 mm
- Bezel material: Dark grey plastic
- Mechanical durability: 1,000,000 cycles
- IP ratings: IP66, IP67, IP69K
- Protection class: NEMA 13, NEMA 4x
- Ambient temperature for operation: -40°C to +70°C
- CSA and UL recognized, conforming to IEC standards
- Resistance to high-pressure washing: 7,000,000 Pa at 55°C
- Certifications include RINA, BV, GL, UL, DNV, Lloyd's Register
- Shock resistance: 30 gn, Vibration resistance: 5 gn
Buy the Schneider Series Harmony XB5 Selector Switch: ZB5FK1213
Order the Schneider ZB5FK1213 selector switch online today to ensure seamless integration into your control panels. Its robust design and high IP ratings guarantee durability in harsh environments, making it ideal for automation and control applications. With a 2-position stay-put operation and integral LEDs, this switch provides clear signaling and reliable operation. Easy to install with front mounting support, this product meets international standards for safety and longevity. Purchase now for fast delivery and optimal performance.
Buy Schneider ZB5FK1213 now and experience unmatched reliability and performance for industrial signaling systems.
