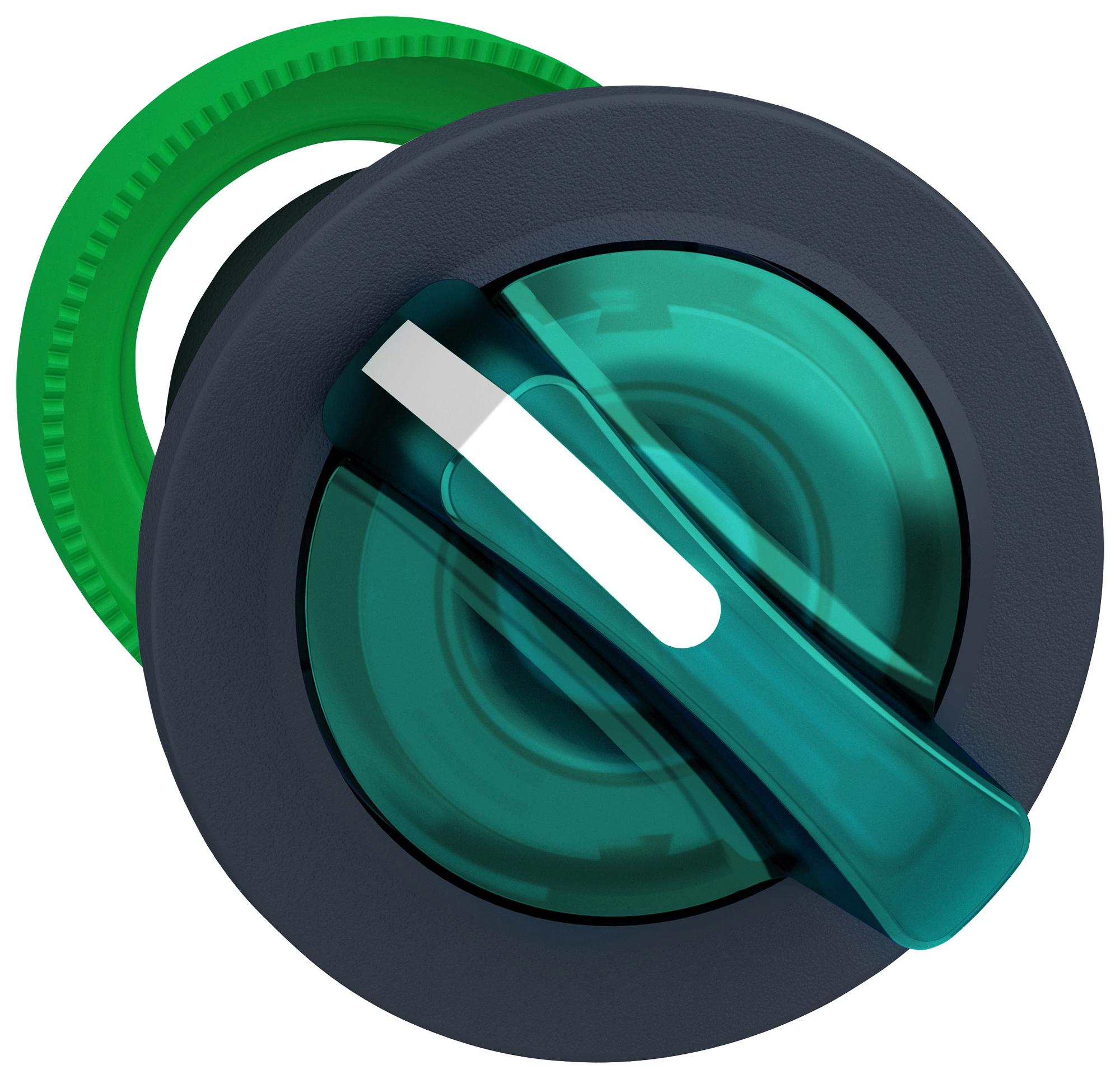

Schneider Electric ZB5FK1233 Illuminated Selector Switch
The ZB5FK1233 is a flush-mounted, green illuminated selector switch with a round shape and a stay-put operator profile. Designed for control panels, it features a 2-position configuration with integral LED lighting. The switch has a mounting diameter of 30 mm, overall dimensions of 37 mm in width and height, and a depth of 46 mm. It is rated for 1,000,000 mechanical cycles, complies with IEC and UL standards, and offers IP66, IP67, and IP69K protection ratings. Suitable for industrial applications requiring durable, high-resistance control components.
Schneider Electric ZB5FK1233 Illuminated Selector Switch Specifications:
- Range of product: Harmony XB5
- Head type: Round with stay-put operator
- Color: Green illuminated LED
- Mounting diameter: 30 mm (1.18 in)
- Overall width: 37 mm (1.46 in)
- Overall height: 37 mm (1.46 in)
- Overall depth: 46 mm (1.81 in)
- Net weight: 0.03 kg (0.07 lb)
- Mechanical durability: 1,000,000 cycles
- Protection ratings: IP66, IP67, IP69K
- NEMA ratings: 13, 4X
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (IEC 60068-2-27), 50 gn (IEC 60068-2-27)
- Certifications: UL Listed, CSA, Lloyds, RINA, DNV, BV
- Material: Dark grey plastic bezel
- Standards: IEC 60947-1, IEC 60947-5-5, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60068-2-6, IEC 60068-2-27
Buy the Schneider Electric Series XB5 Green Selector: ZB5FK1233
Order the Schneider Electric illuminated selector switch ZB5FK1233 online today for reliable control in industrial automation. Designed with a durable, IP69K-rated housing, it features integral LED lighting for clear visibility and a stay-put 2-position operator. The switch's robust construction supports a million mechanical cycles, ensuring long service life. Easy to install with a 30 mm mounting diameter, this switch is ideal for demanding environments requiring high protection ratings. Purchase now for quick delivery and superior performance in your control panels.
Get Schneider Electric ZB5FK1233 today—built for durability and long-lasting performance in industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1233?
You can click on the BUY or RFQ button to purchase ZB5FK1233 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1233?
You can download the ZB5FK1233 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1233?
Schneider Electric
