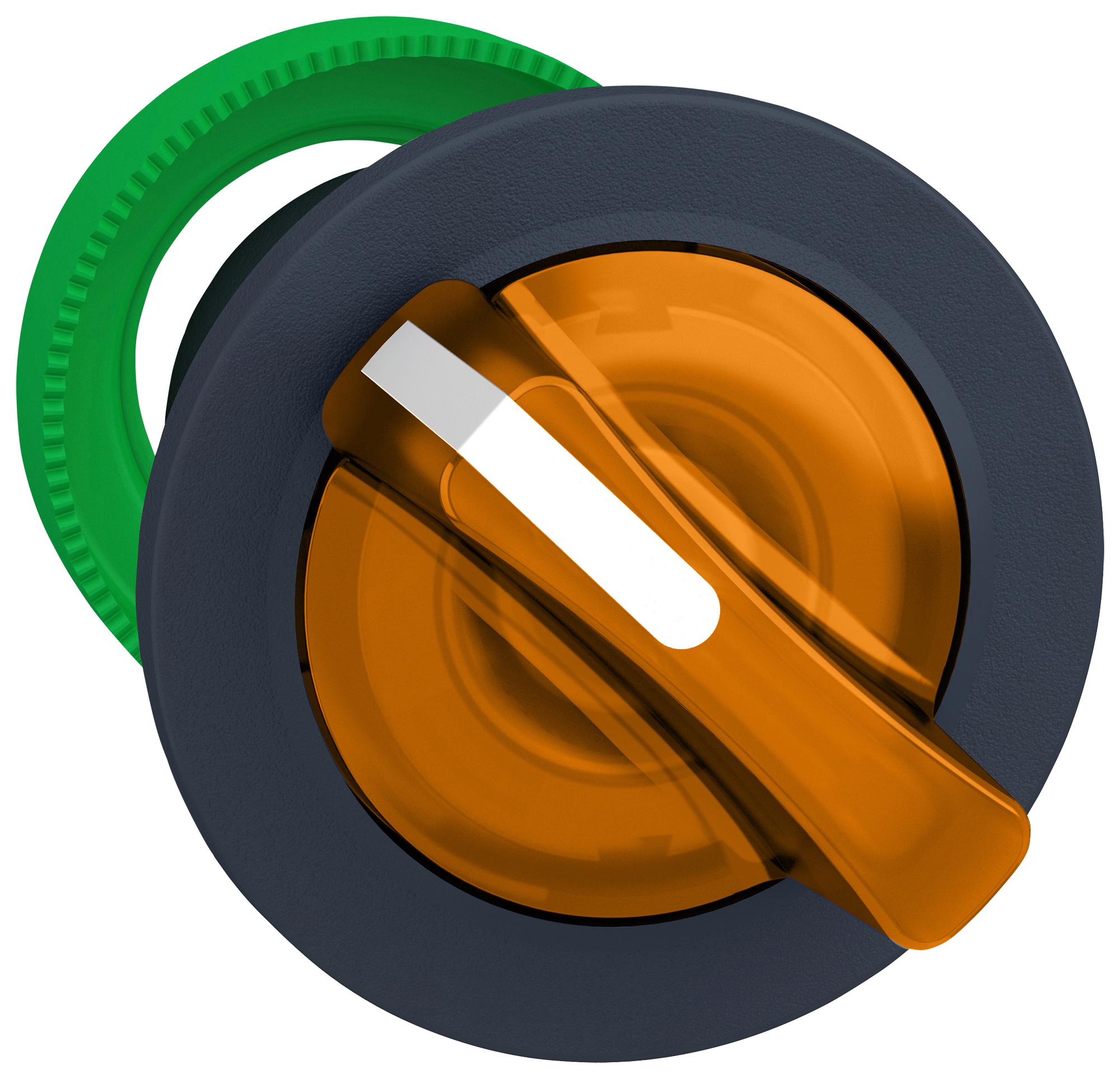

Schneider Electric ZB5FK1253 selector switch head
The ZB5FK1253 is a round, flush-mounted orange illuminated selector switch head designed for industrial control systems. It features a 2-position stay-put operator with an orange standard handle, integrated LED illumination, and a durable plastic bezel. The switch supports mounting with 30 mm diameter and offers high mechanical durability with 1,000,000 cycles. It conforms to IP66, IP67, and IP69K protection ratings and meets multiple international standards including UL 508 and IEC 60947. Suitable for demanding environments, it ensures reliable operation with a compact and robust design.
Schneider Electric ZB5FK1253 selector switch head Specifications:
- Mounting Diameter: 30 mm
- Shape of Signaling Unit: Round
- Head Type: Stay put
- Operator Profile: Orange standard handle
- Number of Positions: 2 positions 90°
- Overall Width: 1.46 in (37 mm)
- Overall Height: 1.46 in (37 mm)
- Overall Depth: 1.81 in (46 mm)
- Net Weight: 0.07 lb (0.03 kg)
- Mechanical Durability: 1,000,000 cycles
- Ingress Protection: IP66, IP67, IP69K
- NEMA Ratings: 13, 4X
- Ambient Temperature: -40°F to 158°F (-40°C to 70°C)
- Compliance: UL 508, IEC 60947-5-4, CSA, JIS C8201-5-1
- Vibration Resistance: 5 gn, 2...500 Hz
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms)
- Certifications: CSA, UL Listed, RINA, DNV, Lloyds, BV, GL
- Environmental: RoHS, REACh Declaration, Toxic heavy metal free, Mercury free
Buy the Schneider Electric ZB5FK1253 – Reliable Selector Switch for Industrial Applications
Purchase the Schneider Electric ZB5FK1253 selector switch online today to ensure reliable control and safety in your industrial applications. This robust, IP66/IP69K rated switch features a durable plastic bezel, an integrated LED illumination for visibility, and supports a 30 mm mounting diameter. Its high mechanical durability of 1,000,000 cycles makes it ideal for demanding environments. Easy to install and compliant with multiple international standards, this switch offers both quality and performance for automation and control systems. Order now to upgrade your equipment with a proven industrial component.
Order your Schneider Electric ZB5FK1253 selector switch today and enhance your control panels with this durable, high-performance component designed for demanding industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1253?
You can click on the BUY or RFQ button to purchase ZB5FK1253 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1253?
You can download the ZB5FK1253 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1253?
Schneider Electric
