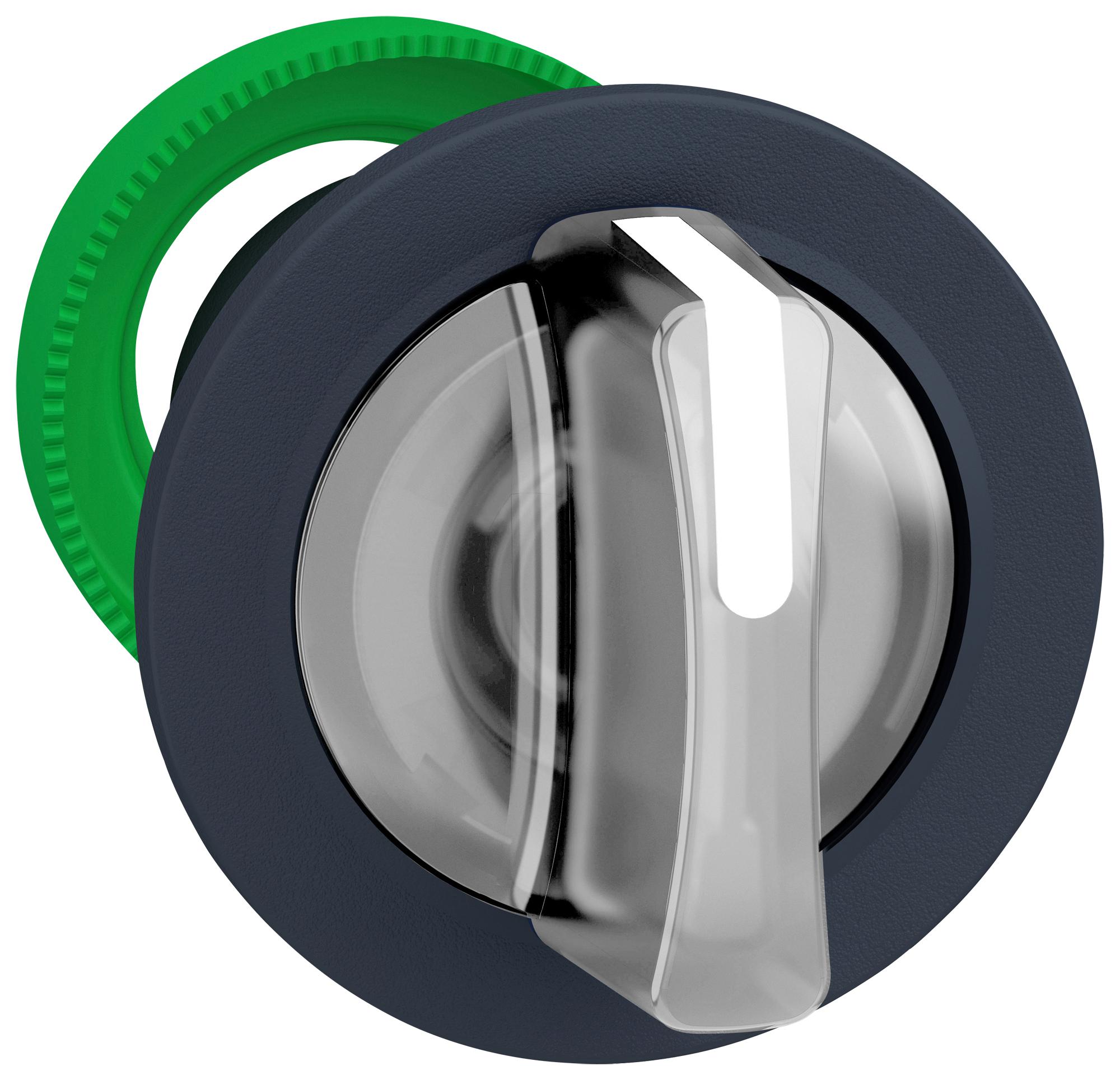

Schneider Electric ZB5FK1313 Illuminated Selector Switch
The ZB5FK1313 is a high-quality, flush-mounted white illuminated selector switch featuring a three-position stay-put head with round shape. Designed for industrial control panels, it boasts a rugged construction with a dark grey plastic bezel and integral LED lighting for high visibility. This switch provides reliable operation with a mechanical durability of 1,000,000 cycles and is rated IP66/IP67/IP69 for excellent protection against dust and water. Suitable for various control applications, it supports 1.18-inch mounting diameter and offers a high level of environmental resistance.
Schneider Electric ZB5FK1313 Illuminated Selector Switch Specifications:
- Head shape: Round 3 head 2
- Operator profile: White standard handle
- Mounting diameter: 1.18 in (30 mm)
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.81 in (46 mm)
- Net weight: 0.07 lb (0.03 kg)
- Mechanical durability: 1,000,000 cycles
- IP protection: IP66, IP67, IP69
- Operating temperature: -40°C to 70°C
- Storage temperature: -40°C to 70°C
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms) / 50 gn (11 ms)
- Certifications: UL Listed, CSA, Lloyds Register, BV, DNV, GL
- Ambient air temperature: -40°C to 70°C
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Material: Dark grey plastic bezel, integral LED lighting
Buy the Schneider Series XB5 ZB5FK1313: Illuminated Selector Switch
Enhance your control panel with the Schneider Series XB5 ZB5FK1313 illuminated selector switch. Featuring a robust design, three-position functionality, and integral LED illumination, it ensures high visibility and durability in demanding environments. Its IP66/IP67/IP69 rating protects against dust and water, making it suitable for industrial applications. Easy to install with a 1.18-inch mounting diameter, this switch offers exceptional mechanical durability of 1,000,000 cycles. Buy online now for reliable switching and luminous indication in your control systems.
Order your Schneider Series XB5 ZB5FK1313 illuminated selector switch today and ensure reliable control with high environmental resistance for industrial projects.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1313?
You can click on the BUY or RFQ button to purchase ZB5FK1313 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1313?
You can download the ZB5FK1313 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1313?
Schneider Electric
