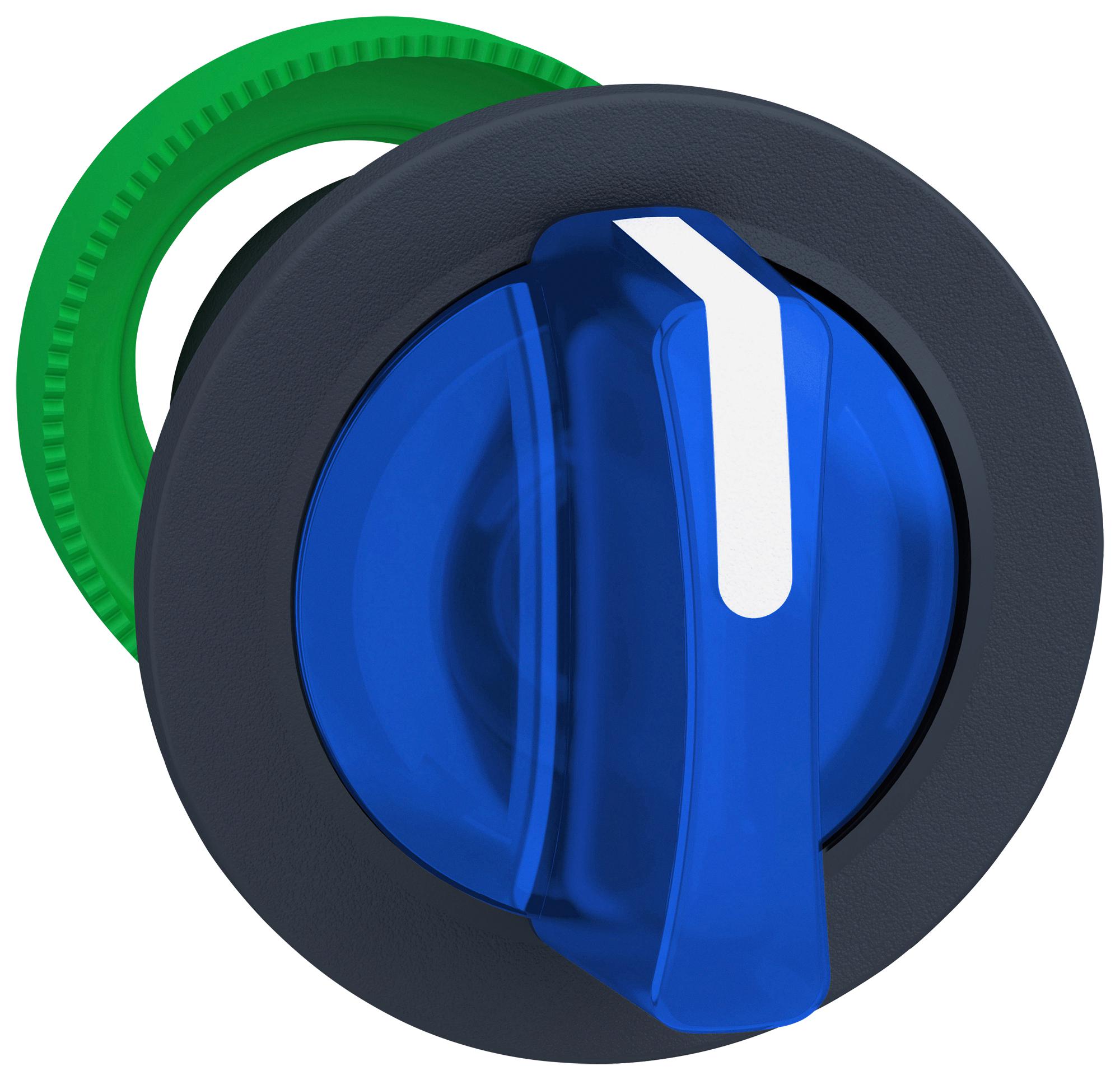

Schneider Electric ZB5FK1363 Selector Switch
The ZB5FK1363 is a durable, round, blue illuminated selector switch head designed for industrial control panels. It features a three-position stay-put operator with a 37 mm diameter and mounting hole of 30 mm. The switch is built with a dark grey plastic bezel and integrated LED lighting, providing clear visual indication. It supports high mechanical durability of 1,000,000 cycles, is rated IP66/IP67/IP69K for excellent environmental protection, and is suitable for harsh conditions with temperature ranges from -40°C to +70°C. Compliant with IEC and UL standards, this switch ensures reliable operation in demanding industrial environments.
Schneider Electric ZB5FK1363 Selector Switch Specifications:
- Range of product: Harmony XB5
- Type: Product compatibility integral LED
- Head shape: Round
- Head type: Stay put, 3 positions (+/- 45°)
- Mounting diameter: 30 mm
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 46 mm
- Weight: 0.03 kg
- Durability: 1,000,000 cycles
- Protection: IP66, IP67, IP69K
- Environmental: -40°C to +70°C operating and storage temperature
- Standards: IEC 60947-5-5, UL 508, CSA
- Vibration resistance: 5 gn
- Shock resistance: 30-50 gn
- Material: Dark grey plastic bezel, LED compatible
- Certifications: UL Listed, CSA, Lloyds, DNV, RINA
- Pressure resistance: 7,000,000 Pa at 55°C
- NEMA ratings: 13, 4X
- Compliance: REACh, RoHS, China RoHS
Buy the Buy Schneider Electric Selector Switch Part Number ZB5FK1363 Online
Enhance your control panels with the Schneider Electric Selector Switch head ZB5FK1363, featuring an illuminated blue LED, three positions, and IP69K rating for optimal performance in harsh environments. Its durable design supports 1,000,000 cycles of operation and complies with global safety standards including IEC, UL, and CSA certifications. Perfect for industrial applications requiring reliable, visual indication with high environmental protection. Purchase online now for quick, secure delivery and improved operational efficiency in challenging conditions.
Buy Schneider Electric ZB5FK1363 selector switch now and enhance your industrial control system with reliable, high-durability illuminated operation.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1363?
You can click on the BUY or RFQ button to purchase ZB5FK1363 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1363?
You can download the ZB5FK1363 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1363?
Schneider Electric
