Schneider Electric ZB5FK1733 Selector Switch

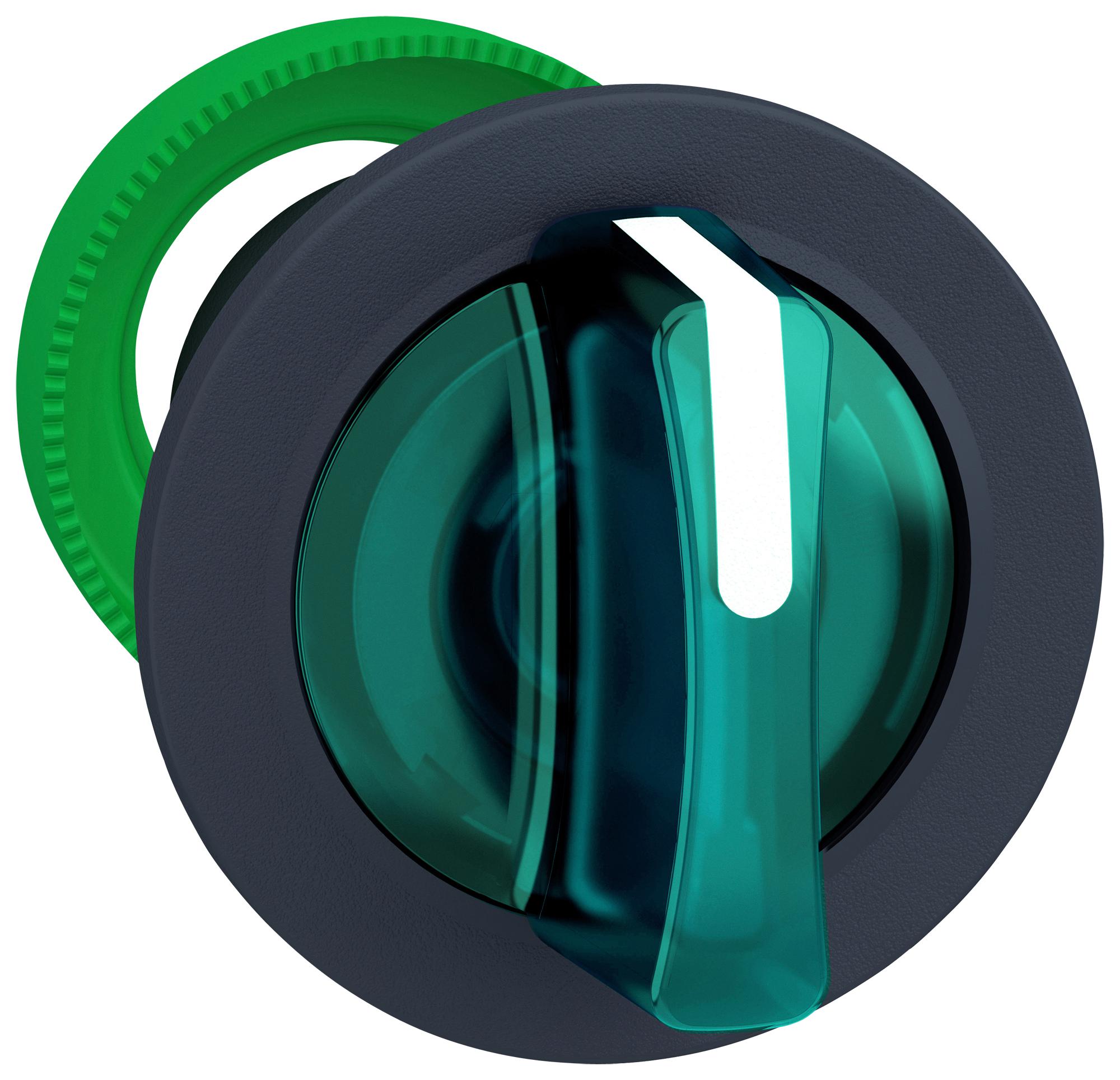

The green illuminated selector switch is a robust, high-performance control unit designed for industrial automation. Featuring a flush-mounted head with three positions and a return to center spring mechanism, it offers reliable operation and visibility. The head is compatible with integral LEDs for enhanced signaling, and the device is constructed from durable dark grey plastic with a mounting diameter of 30 mm. Its environmental ratings include IP66, IP67, and IP69 protection levels, supporting operation in harsh conditions. Suitable for various industrial applications, it ensures safety, durability, and ease of use downstream installations.
Schneider Electric ZB5FK1733 Selector Switch Specifications:
- Mounting diameter: 30 mm
- Head type: Round, 3-position, return to center spring
- Bezel material: Dark grey plastic
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 46 mm
- Weight: 0.03 kg
- Mechanical durability: 1,000,000 cycles
- Environmental protection: IP66, IP67, IP69, NEMA 13 and 4x
- Temperature range for storage and operation: -40°C to +70°C
- Ingress protection: IEC 60529 IP66, IP67, IP69, NEMA 13, 4x
- Vibration resistance: 5 g at 2-500 Hz
- Shock resistance: 30 g for 18 ms, 50 g for 11 ms
- Standard compliances: CSA, UL, IEC 60947, JIS C8201-5-1, RINA, BV, DNV, Lloyds
- Certifications: UL Listed, DNV, RINA, BV, GL
- Resistance to high pressure wash: 7,000,000 Pa at 55°C
- Material: Dark grey plastic bezel and actuator
- Ambient temperature: -40°C to +70°C
Buy the Schneider ZB5FK1733 – Reliable Selector Switch for Industrial Applications
Purchase the Schneider ZB5FK1733 selector switch online to ensure reliable operation in demanding industrial environments. Designed for durability, it features a 3-position, return-to-center mechanism, and integral LED signaling for enhanced visibility. Crafted from durable dark grey plastic, it offers excellent environmental protection with IP66, IP67, and IP69 ratings, ensuring resilience against dust, water, and impacts. Its mechanical life exceeds one million cycles, making it ideal for automation, control panels, and machinery requiring high-performance switching with quick installation and long-lasting reliability.
Get Schneider ZB5FK1733 today—built for durability and precision in industrial control environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1733?
You can click on the BUY or RFQ button to purchase ZB5FK1733 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1733?
You can download the ZB5FK1733 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1733?
Schneider Electric
