Schneider Electric ZB5FK1833 selector switch

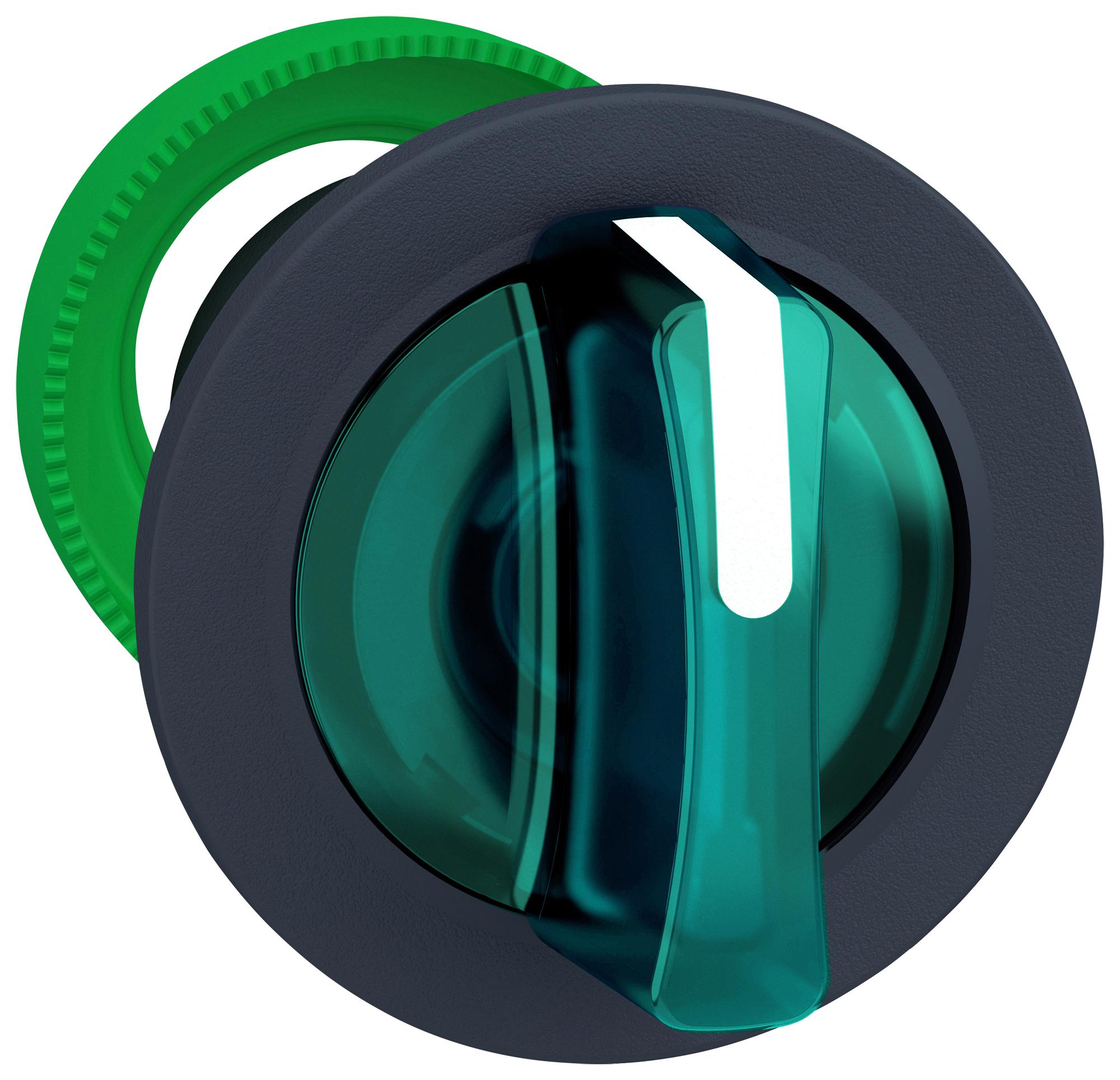

This is a fluorescent illuminated selector switch with a flush-mounted, 3-position head that returns to the center position. Designed for industrial control panels, it features a round shape with a dark grey plastic bezel and integral LED lighting, ensuring high visibility and durability. It supports left, right, and center positions with a spring return mechanism, suitable for demanding environments. The switch is IP66/IP67/IP69 rated, resistant to high-pressure wash and vibration, and UL listed for safety compliance. It operates within -40°C to 70°C ambient temperature, ideal for industrial automation and control systems.
Schneider Electric ZB5FK1833 selector switch Specifications:
- Head Type: Flush-mounted, round, 3-position
- Color: Green operator with integral LED lighting
- Mounting Diameter: 1.18 inches (30 mm)
- Overall Width & Height: 1.46 inches (37 mm)
- Depth: 1.81 inches (46 mm)
- Weight: 0.07 lb (0.03 kg)
- Durability: 1,000,000 cycles
- Electrical Composition Code: M3, M6, M10, MF1
- Material: Dark grey plastic bezel
- IP Degree of Protection: IP66, IP67, IP69, NEMA 13, NEMA 4x
- Resistance to High Pressure Washer: 7,000,000 Pa at 55°C
- Vibration Resistance: 5 gn (IEC 60068-2-6)
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms)
- Ambient Operating Temperature: -40°C to 70°C
- Standards: IEC 60947-5-1, IEC 60068-2-6, UL 508
Buy the Schneider ZB5FK1833 – Reliable Selector Switch for Industrial Applications
Upgrade your industrial control panels with this high-quality selector switch featuring integral LED lighting, IP66/IP67/IP69 rating, and outstanding durability. Its 3-position configuration with spring return ensures precise control in demanding environments. Easy to install with a 30 mm mounting diameter, it withstands vibration, shock, and high-pressure wash applications. UL listed and compliant with international standards, this switch is perfect for automation, manufacturing, and process control systems seeking reliable and long-lasting operation.
Buy Schneider ZB5FK1833 selector switch now and experience unmatched durability and safety for your industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1833?
You can click on the BUY or RFQ button to purchase ZB5FK1833 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1833?
You can download the ZB5FK1833 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1833?
Schneider Electric
