Schneider Electric ZB5FK1843 Industrial Selector Switch

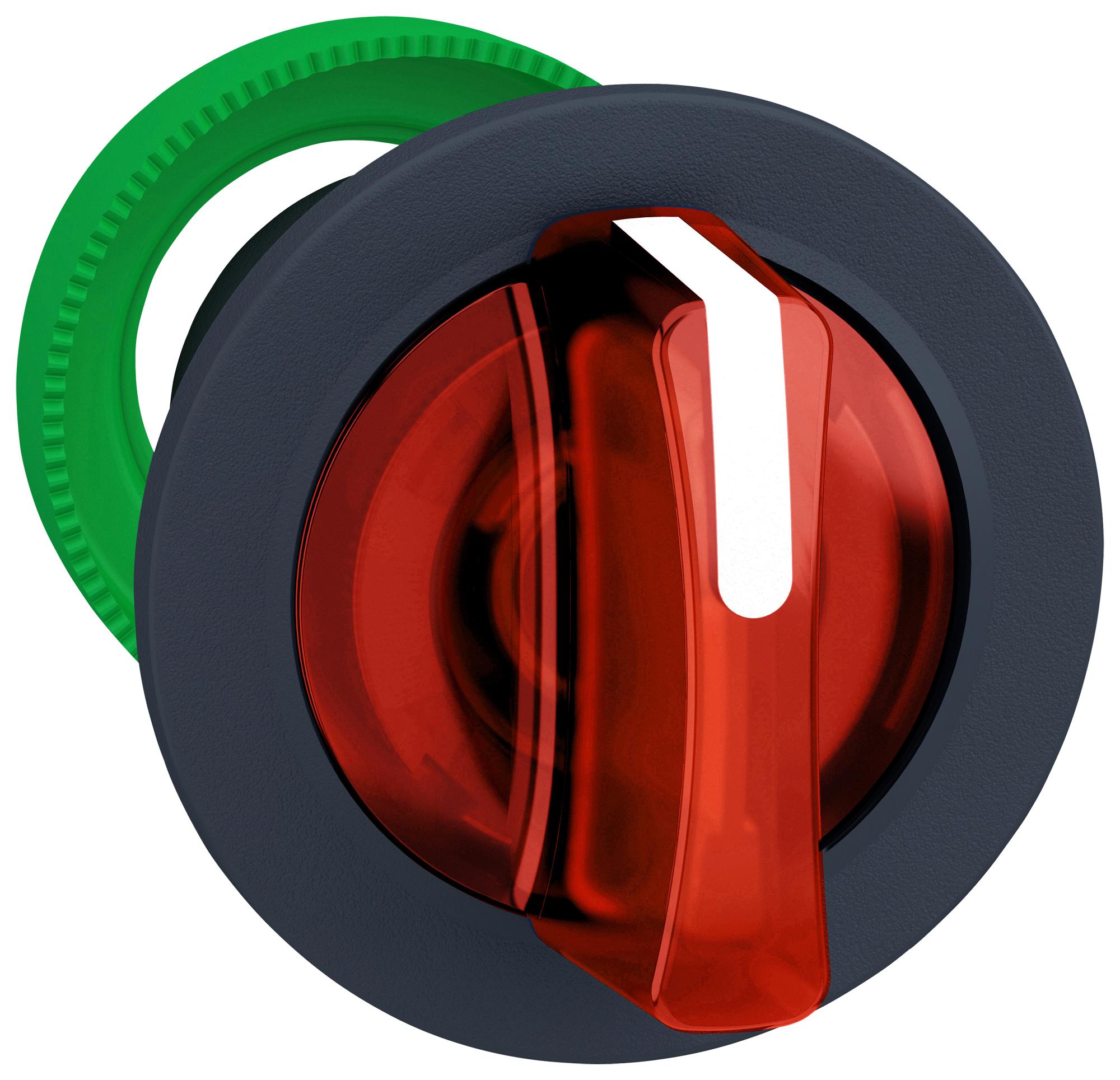

The ZB5FK1843 is a flush mounted red illuminated selector switch featuring a three-position head with return to center, designed for industrial control applications. Made from dark grey plastic, it offers a robust IP66/IP67/IP69K ingress protection, suitable for harsh environments. The switch features a round signaling head for easy operation with three positions at +/- 45°. It is built for durability with 1,000,000 mechanical cycles, certified under IEC, UL, CSA standards. Compatible with various LED device configurations and designed for front mounting, this switch ensures high reliability and environmental resistance.
Schneider Electric ZB5FK1843 Industrial Selector Switch Specifications:
- Mounting Diameter: 1.18 in (30 mm)
- Head Type: Round signaling unit
- Operator Profile: Red standard handle, 3 positions +/- 45°
- Mechanical Durability: 1,000,000 cycles
- Ingress Protection: IP66, IP67, IP69K conforming to IEC 60529
- Environmental Resistance: Temperature range -40 to 70°C, resistance to high pressure washing 7,000,000 Pa at 55°C
- Material: Dark grey plastic bezel
- Electrical Composition Codes: M3, M6, M10, MF1, M44 with integral LEDs
- Vibration Resistance: 5 gn (IEC 60068-2-6)
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: UL 508, IEC 60947 series, CSA, JIS
- Certifications: UL Listed, CSA, Lloyds Register, RINA, DNV, BV, GL
- Operating & Storage Temp: -40 to 70°C
- Protection Class: NEMA 13, 4X
Buy the Schneider Electric Series Harmony XB5 Selector Switch: ZB5FK1843
Purchase the Schneider Electric ZB5FK1843 industrial selector switch online today. Designed for durability with IP66/IP67/IP69K protection Ratings, it features a round head with 3 positions, robust construction, and high electrical and mechanical durability. Ideal for harsh environments, this switch complies with international standards including UL, IEC, and CSA. Its easy front mounting and certified certifications ensure seamless integration into your control systems. Order now for reliable, long-lasting performance in demanding industrial settings.
Buy Schneider Electric ZB5FK1843 now and experience unmatched reliability and heavy-duty environmental resistance for industrial control applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1843?
You can click on the BUY or RFQ button to purchase ZB5FK1843 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1843?
You can download the ZB5FK1843 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1843?
Schneider Electric
