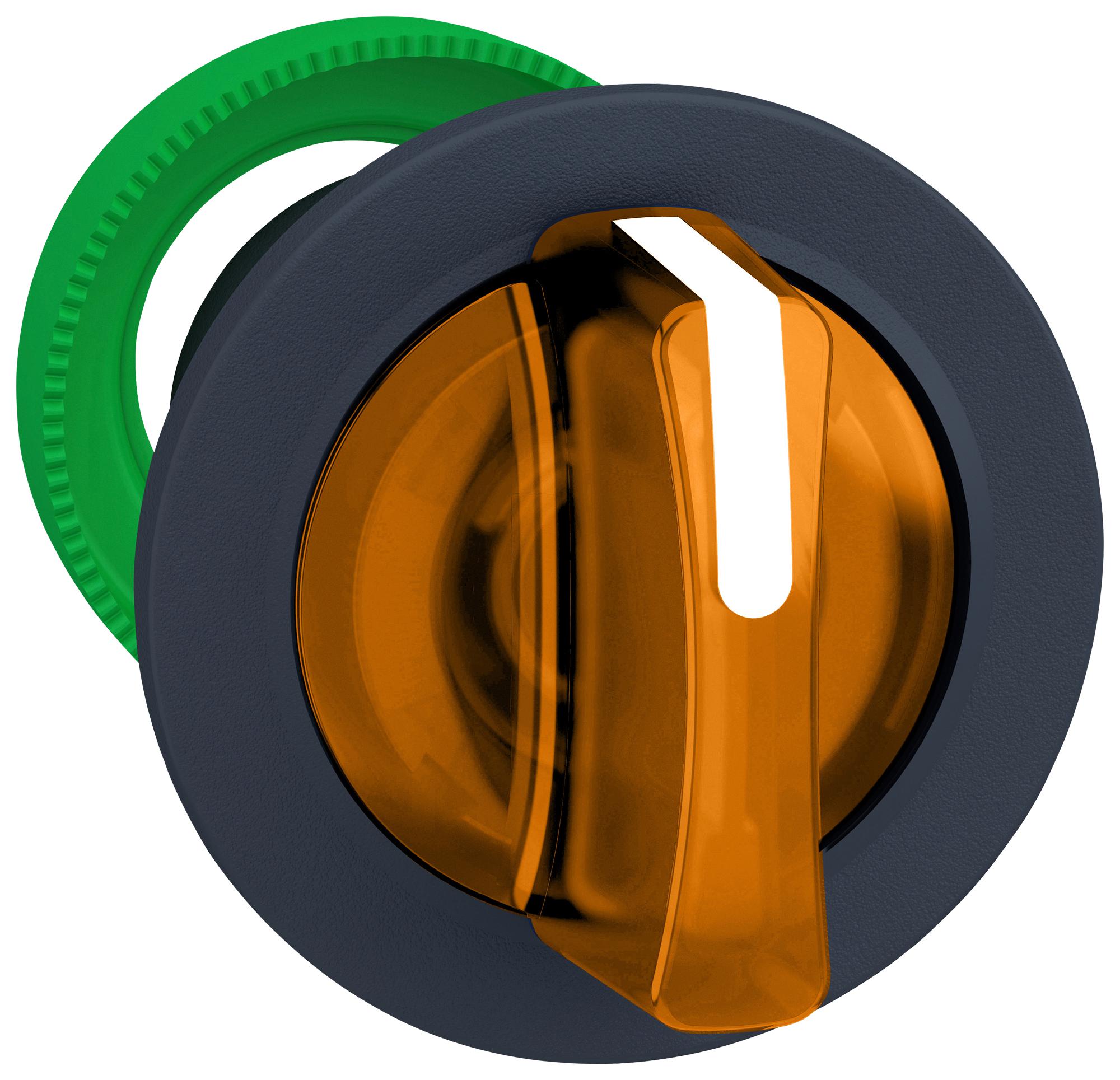

Schneider Electric ZB5FK1853 Selector Switch
The ZB5FK1853 is a flush-mounted orange illuminated selector switch head designed for industrial control panels. It features a 3-position operator with 'Right to center' spring return and a round shape. Made of dark grey plastic with integral LED lighting, it ensures high durability with a mechanical life of 1,000,000 cycles. It has IP66/IP67/IP69K protection classes, suitable for harsh environments, and conforms to multiple standards including IEC 60947-5-4 and UL 508. Its compact size and robust construction make it ideal for industrial automation applications requiring reliable signal indication and control.
Schneider Electric ZB5FK1853 Selector Switch Specifications:
- Mounting diameter: 30 mm
- Shape: Round
- Head type: Head for illuminated selector switch
- Color: Orange
- Material: Dark grey plastic bezel
- Operator profile: Right to center spring return
- Number of positions: 3
- Operator inclination: ±45°
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 46 mm
- Net weight: 0.03 kg
- Mechanical durability: 1,000,000 cycles
- Protection ratings: IP66, IP67, IP69K
- Environmental ratings: -40°F to 158°F (-40°C to 70°C)
- Standards: EN/IEC 60947-5-4, UL 508, CSA, JIS
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- NEMA ratings: 13, 4X
- Certifications: UL, BV, Lloyds, DNV, CSA, RINA
- Resistance to high-pressure washing: 7,000,000 Pa at 55°C
Buy the Schneider Series Harmony XB5 Selector Switch: ZB5FK1853
Purchase the Schneider ZB5FK1853 selector switch online now for reliable, high-quality industrial control. Its robust plastic construction, IP69K rating, and durable design ensure long-lasting performance in demanding environments. Ideal for automation and signaling applications, this switch features a 3-position operation with spring return, integral LED lighting, and compliance with international standards for safety and reliability. Buying online offers quick delivery and expert support to keep your operations running smoothly with top-tier control components.
Get Schneider ZB5FK1853 today—built for industrial automation and prolonged durability.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1853?
You can click on the BUY or RFQ button to purchase ZB5FK1853 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1853?
You can download the ZB5FK1853 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1853?
Schneider Electric
