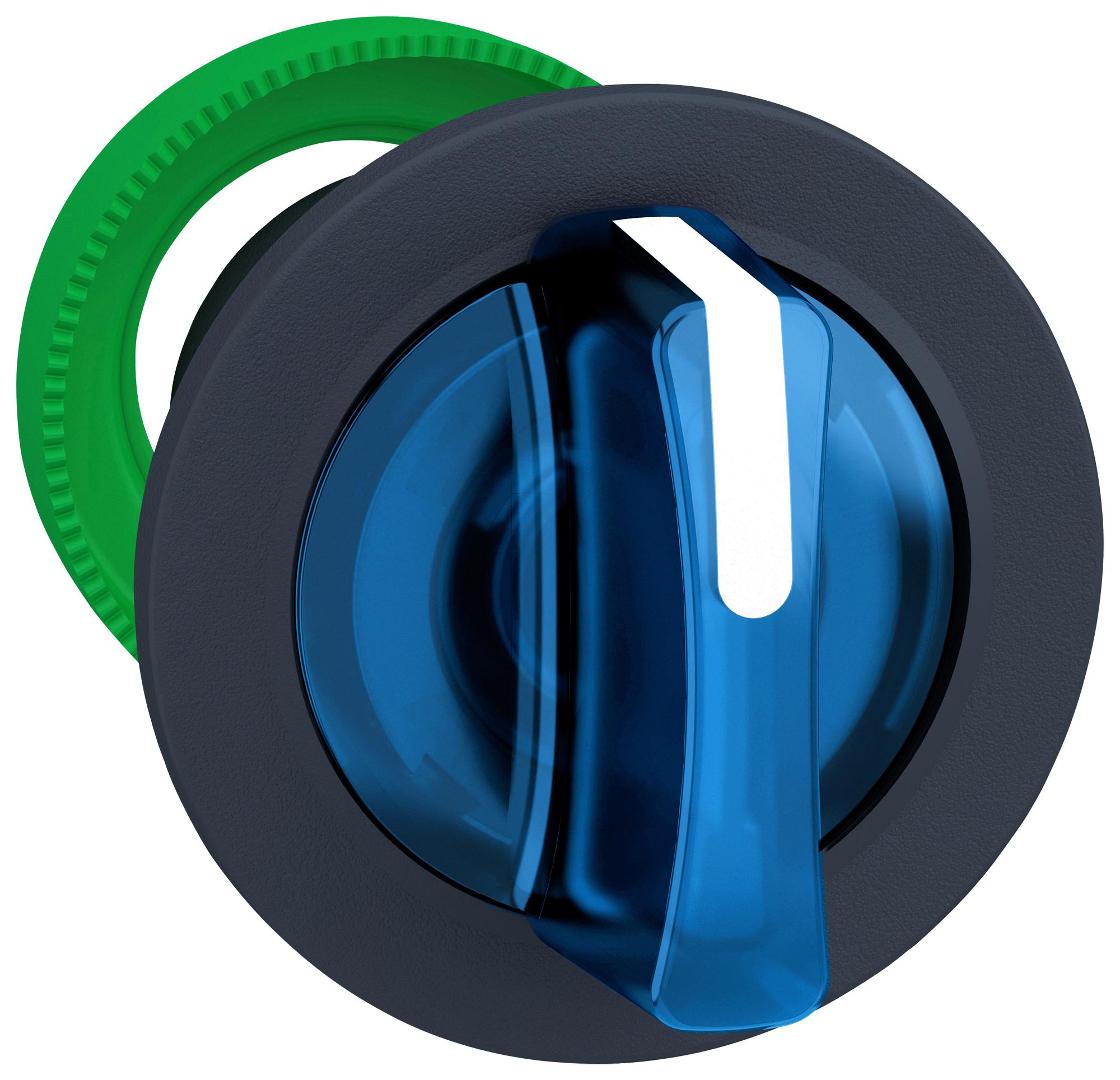

Schneider Electric ZB5FK1863 Selector Switch
The ZB5FK1863 is a flush-mounted, blue illuminated selector switch with a three-position head capable of return right to center. It features a round shape with a 30 mm mounting diameter, suitable for industrial control panels. The switch offers high mechanical durability of 1,000,000 cycles and conforms to multiple safety and protection standards including IP66/IP67/IP69K and NEMA 13/NEMA 4X. Designed for reliable operation in harsh environments, it supports several electrical compositions with integral LEDs and a wide operating temperature range of -40°F to 158°F. Certified by UL, CSA, Lloyds, DNV, and RINA, this switch guarantees safety and longevity in demanding industrial applications.
Schneider Electric ZB5FK1863 Selector Switch Specifications:
- Type: Flush-mounted selector switch with blue LED illumination
- Head shape: Round, 3 positions, return right to center with +/- 45° operator position
- Mounting diameter: 30 mm (1.18 inches)
- Overall dimensions: Width and Height 37 mm, Depth 46 mm
- Net weight: 0.07 lb (0.03 kg)
- Mechanical durability: 1,000,000 cycles
- Electrical composition codes: M3, M6, M10, MF1, M44 with integral LEDs and transformer options
- Environmental ratings: IP66/IP67/IP69K, NEMA 13, NEMA 4X
- Protection: Solid protective treatments, conforms to IEC and UL standards
- Vibration resistance: 5 gn, Shock resistance: 30-50 gn, conforming to IEC 60068-2-6 and 60068-2-27
- Operating and storage temperature: -40°F to 158°F (-40°C to 70°C)
- Standards: IEC 60947 series, UL 508, CSA, JIS, DNV, RINA, Lloyds
- Certifications: UL Listed, CSA, Lloyds, DNV, RINA
- Material: Dark grey plastic bezel, metal head with LED illumination
- Protection against high pressure washer: 7,000,000 Pa at 55°C
Buy the Schneider Series XB5 Selector Switch: ZB5FK1863
Order the Schneider Electric ZB5FK1863 selector switch online today to ensure high durability, IP69K protection, and efficient operation in demanding industrial environments. Perfect for control panels, this switch offers three positions, blue LED illumination, and superior resistance to vibrations, shocks, and harsh conditions. With quick delivery and trusted quality, buying online guarantees access to certified, environmentally friendly components designed for long-lasting performance. Enhance your automation setup today by purchasing this reliable control device from authorized distributors.
Buy Schneider Electric ZB5FK1863 now and experience unmatched reliability and performance for industrial control applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FK1863?
You can click on the BUY or RFQ button to purchase ZB5FK1863 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FK1863?
You can download the ZB5FK1863 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FK1863?
Schneider Electric
