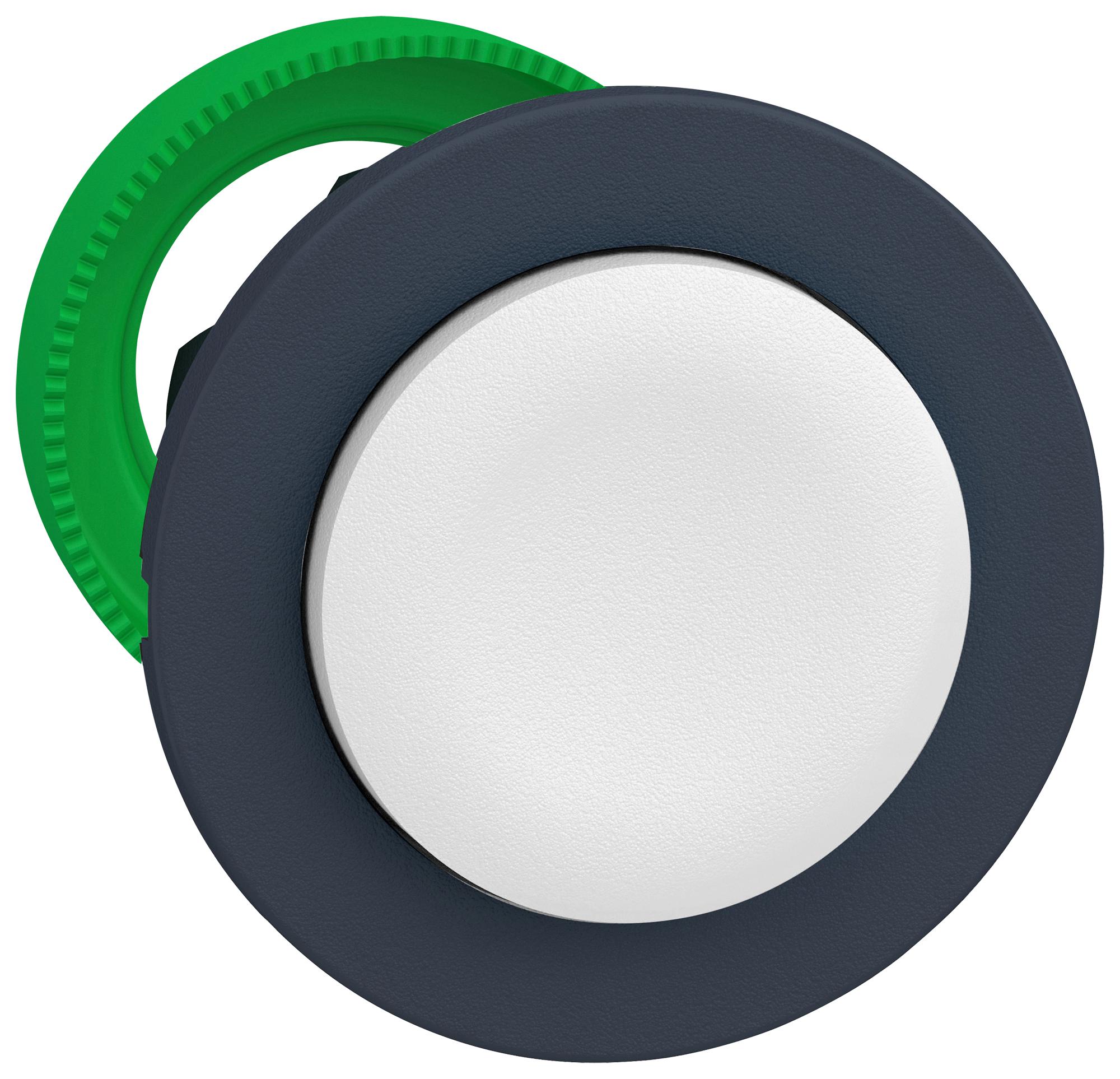

Schneider Electric ZB5FL1 Pushbutton Head
The ZB5FL1 is a non-illuminated, white projecting pushbutton head designed for flush mounting within industrial control panels. Made of dark grey plastic with a mounting diameter of 1.20 inches (30.5 mm), it features a round shape with a spring return operator profile. Ensuring durability, it withstands 10 million cycles, and is rated for IP66, IP67, and IP69 protection levels. Suitable for environments from -40°F to 158°F, it complies with IEC, UL, JIS, and CSA standards, making it ideal for demanding industrial applications requiring reliable manual operation.
Schneider Electric ZB5FL1 Pushbutton Head Specifications:
- Material: Dark grey plastic
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.26 in (32 mm)
- Net weight: 0.07 Ib (0.031 kg)
- Mechanical durability: 10,000,000 cycles
- Ambient temperature: -40...158 °F (-40...70 °C)
- IP Rating: IP66, IP67, IP69
- Protection standards: UL 50E Types 12, 13, 4, 4X
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms), 25 gn (6 ms)
- Vibration resistance: 5 gn, 10-500 Hz; 2 mm peak-to-peak (2-10 Hz)
- Standards: IEC 60947-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14
- Certifications: UL Listed, DNV, RINA, CSA, GL, Lloyds
Buy the Schneider Electric ZB5FL1 – Reliable Pushbutton for Industrial Applications
Order the Schneider Electric ZB5FL1 pushbutton head online today and ensure reliable operation for your industrial control systems. This non-illuminated, white projecting pushbutton is designed for flush mounting, offering IP66, IP67, and IP69 protection for demanding environments. Constructed with durable dark grey plastic, it withstands up to 10 million cycles, operates from -40°F to 158°F, and meets IEC, UL, JIS, and CSA standards, making it perfect for high-stress control panel applications where longevity and safety are critical.
Buy Schneider Electric ZB5FL1 now and experience unmatched durability and reliable manual operation in demanding industrial environments.
