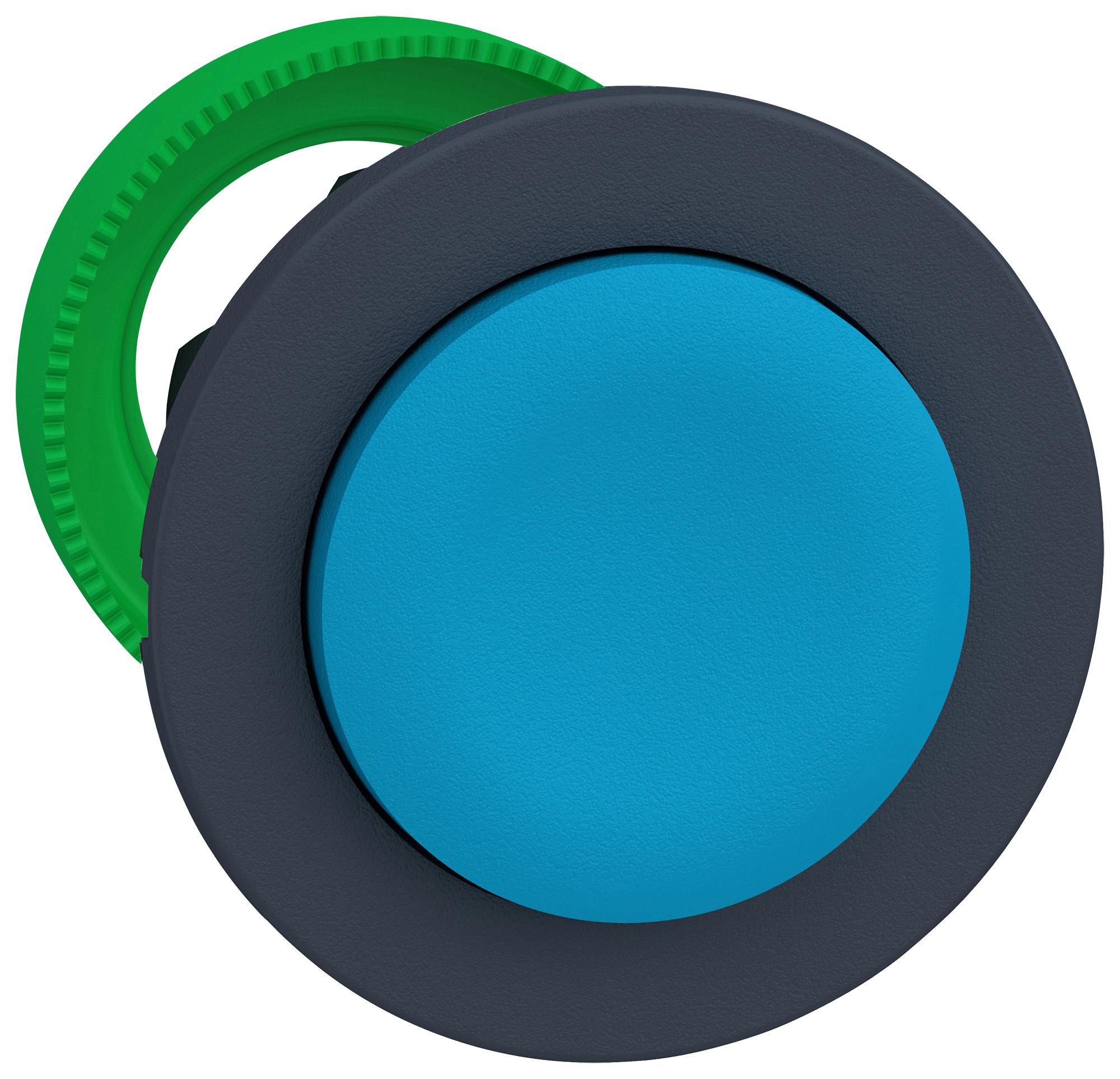

Schneider Electric ZB5FL6 Pushbutton Switch
The flush-mounted blue projecting pushbutton head is a durable and reliable switch component suitable for industrial applications. Designed with a round shape and built-in-flush head type, it offers a robust construction with a mounting diameter of 1.20 inches (30.5 mm). It features a spring return operator profile and conforms to IP66, IP67, and IP69 protection standards, providing resistance against dust, water, and high-pressure cleaning. The component withstands up to 10 million mechanical cycles and is ideal for control panels requiring rugged, highly protected pushbuttons for demanding environments.
Schneider Electric ZB5FL6 Pushbutton Switch Specifications:
- Shape: Round head
- Head Type: Built-in-flush
- Color: Blue
- Mounting Diameter: 1.20 inches (30.5 mm)
- Material: Dark grey plastic bezel
- Mechanical Durability: 10,000,000 cycles
- Protection Standards: IP66, IP67, IP69K, Type 13, 12, 4, 4X (UL)
- Ambient Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms), 25 gn (6 ms) shocks
- Vibration Resistance: 5 gn (10-500 Hz), 2 mm peak-to-peak (2-10 Hz)
- Certifications: UL Listed, CSA, BV, RINA, Lloyd’s Register, DNV
- Package Weight: 0.05 lbs (0.02 kg)
- Package Dimensions: Height 2.15 in, Width 1.69 in, Length 2.05 in
Buy the Buy Schneider Electric Pushbutton Part Number ZB5FL6 Online
Purchase the Schneider Electric ZB5FL6 blue projecting pushbutton switch online today. Designed for rugged industrial environments, it offers IP66/IP67/IP69K protection and a long cycle life of 10 million operations. Its round, built-in-flush head with a 1.20-inch diameter ensures durability and ease of installation. Perfect for control panels requiring reliable switching in demanding conditions, this high-quality switch combines robust construction, excellent environmental resistance, and certified compliance, making it an ideal choice for industrial automation and control systems.
Buy Schneider Electric ZB5FL6 now and experience unmatched reliability and heavy-duty protection for industrial control panels.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FL6?
You can click on the BUY or RFQ button to purchase ZB5FL6 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FL6?
You can download the ZB5FL6 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FL6?
Schneider Electric
