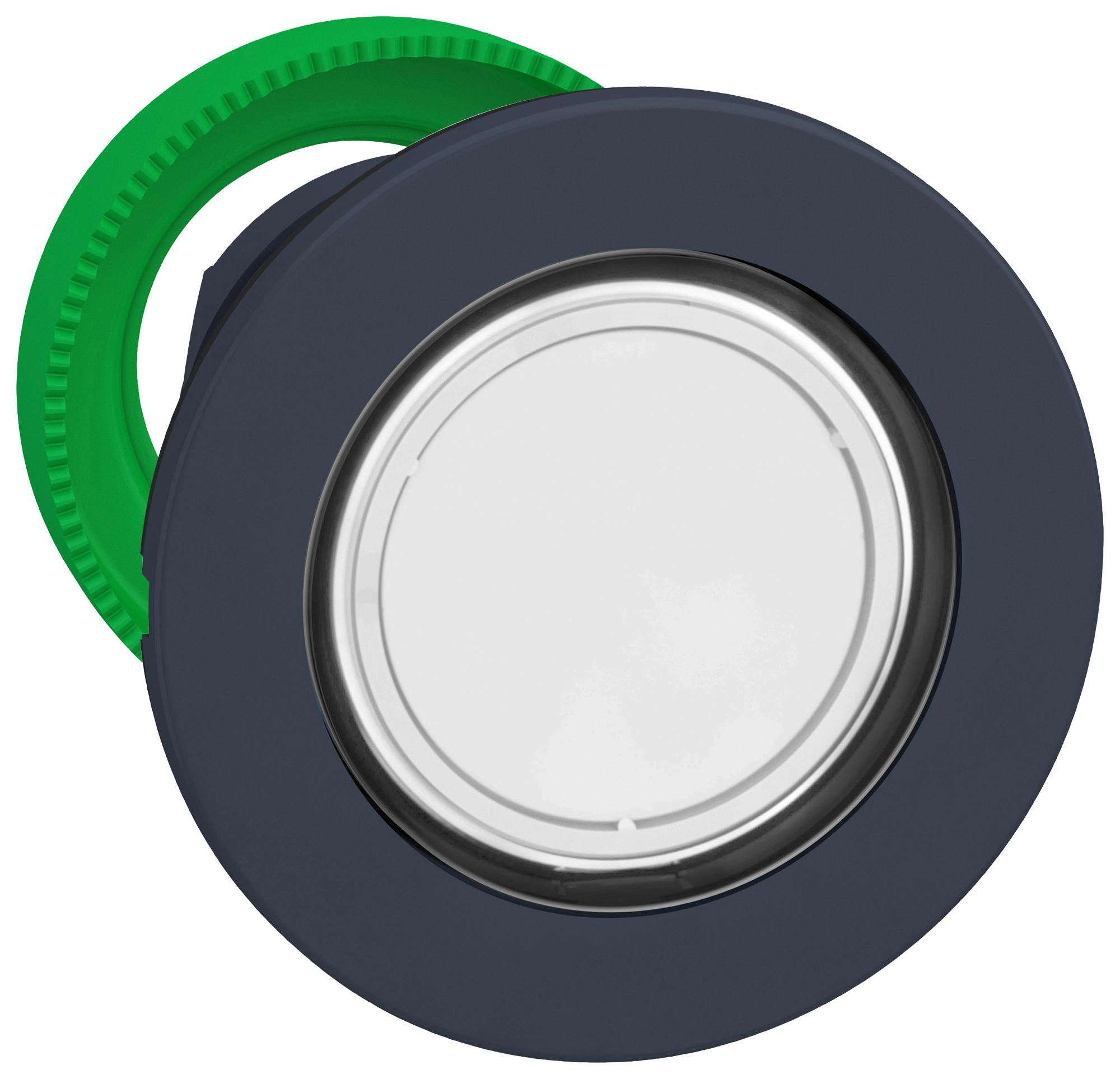

Schneider Electric ZB5FV013 Industrial Pilot Light Head
The ZB5FV013 is a flush-mounted white pilot light head designed for integral LED systems within the Harmony XB5 series. It features a round signaling unit shape with a plain lens in white, making it suitable for various industrial automation applications. Constructed with a dark grey plastic bezel, it offers IP66, IP67, and IP69K protection ratings, ensuring robust performance in harsh environments. The device supports front mounting with a diameter of 30 mm (1.18 in) and includes features like overvoltage protection, vibration resistance, and compliance with multiple safety standards for reliable operation in demanding industrial settings.
Schneider Electric ZB5FV013 Industrial Pilot Light Head Specifications:
- Shape of signaling unit: Round head
- Color of cap/lens: White
- Bezel material: Dark grey plastic
- Mounting diameter: 1.18 in (30 mm)
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.18 in (30 mm)
- Weight: 0.03 lb (0.015 kg)
- Electrical composition code: P4 front mounting integral LED, P2 front mounting integral LED and transformer, PF1 front mounting integral LED
- Protection ratings: IP66, IP67, IP69, NEMA 13, NEMA 4X
- Resistance to high-pressure wash: 7,000,000 Pa at 55°C
- Standards: EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
Buy the Buy Schneider Electric ZB5FV013 Part Number ZB5FV013 Online
Discover the reliable Schneider Electric ZB5FV013 industrial pilot light head, ideal for harsh industrial environments. It features a round shape with a white plain lens, IP69K protection, and a 30 mm mounting diameter for easy installation. Constructed with durable dark grey plastic, it offers excellent resistance to vibration, shocks, and high-pressure washing, ensuring long-lasting performance. Compatible with integral LED systems, this robust signaling device meets multiple safety standards and is perfect for automation and control panels requiring high-quality visual indicators.
Buy Schneider Electric ZB5FV013 now and experience unmatched durability and industrial signaling performance in harsh environments.
