Schneider Electric ZB5FV043 Pilot Light Head

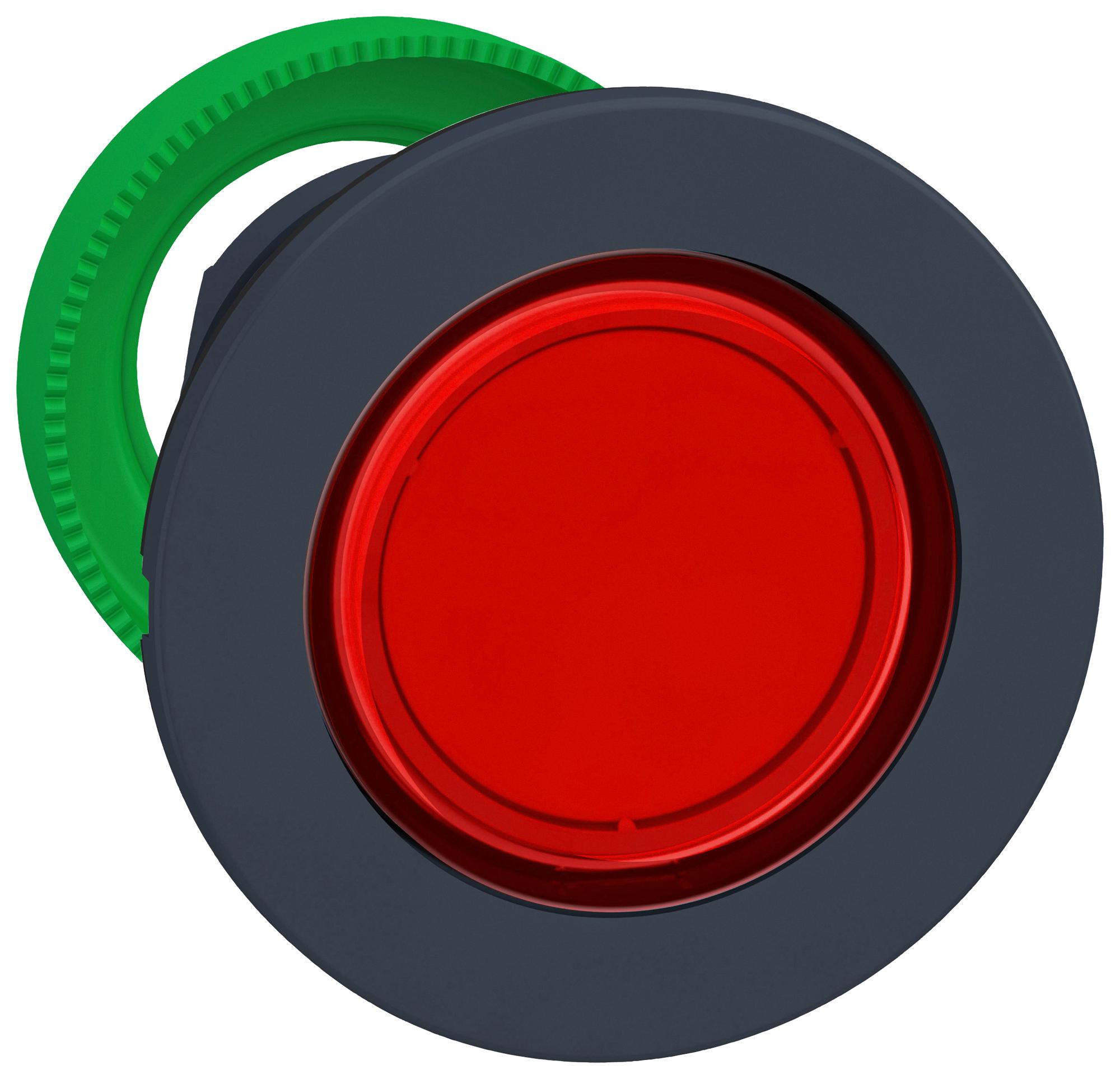

The ZB5FV043 is a flush-mounted red pilot light head designed for integral LED applications within the Harmony XB5 series. Crafted with a dark grey plastic bezel, it features a round shape with a 30 mm mounting diameter, and overall dimensions of 37 mm in width and height, with a depth of 30 mm. This device is suitable for various industrial environments, offering IP66, IP67, and IP69K protection levels, and NEMA 13 and 4X ratings. It withstands high-pressure cleaning, has environmental protection conforming to standards like IEC 60947-5-4, UL 508, and JIS C8201-5-1, and operates efficiently at temperatures from -40°F to 158°F (-40°C to 70°C).
Schneider Electric ZB5FV043 Pilot Light Head Specifications:
- Range of product: Harmony XB5
- Product type: Head for pilot light
- Device short name: ZBS
- Bezel material: Dark grey plastic
- Mounting diameter: 1.18 in (30 mm)
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.18 in (30 mm)
- Net weight: 0.03 Ib (0.015 kg)
- Device presentation: Basic element
- Protective treatments: TH
- Ambient temperature for storage and operation: -40°F to 158°F (-40°C to 70°C)
- Protection: IP66, IP67, IP69, NEMA 13, NEMA 4X
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1m distance
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14
Buy the Schneider Electric Series XB5 Pilot Light: ZB5FV043
Enhance your industrial control systems with this high-quality red pilot light head featuring integral LED technology. Designed for easy flush mounting with a round shape, it offers superior protection levels of IP66, IP67, and IP69K, ensuring durability in harsh environments. The dark grey plastic bezel adds a sleek appearance, while its compatibility with Harmony XB5 series guarantees seamless integration. Ideal for panel indication, this device withstands high-pressure cleaning and extreme temperatures, ensuring consistent performance in demanding applications. Order online today for fast delivery and reliable operation.
Buy Schneider Electric ZB5FV043 now and experience unmatched reliability and performance with durable industrial lighting components.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FV043?
You can click on the BUY or RFQ button to purchase ZB5FV043 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FV043?
You can download the ZB5FV043 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FV043?
Schneider Electric
