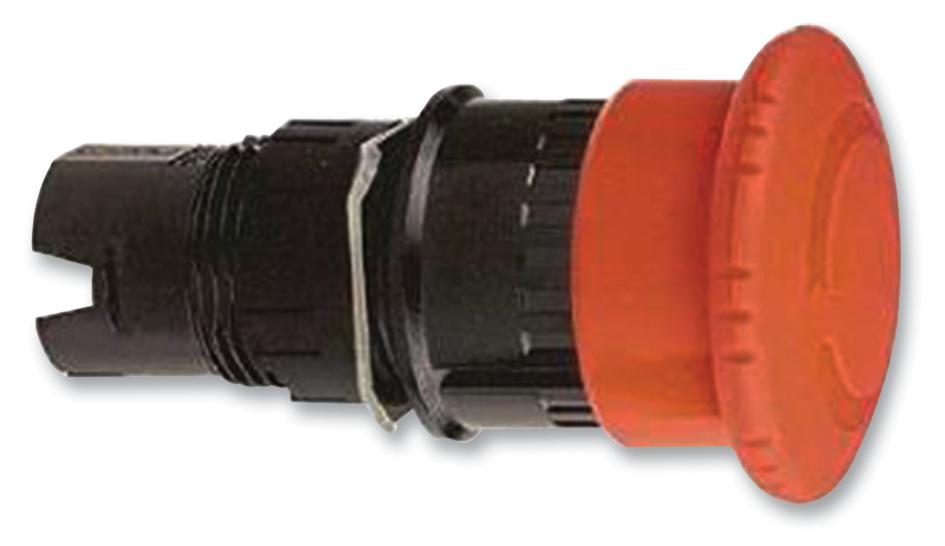

Schneider Electric ZB6AS834 Emergency Stop Pushbutton Head
The ZB6AS834 is a 16mm red mushroom pushbutton head designed for use with the XB6 series non-illuminated pushbutton switches. It features a plastic bezel, a turn-to-release reset mechanism, and either trigger or mechanical latching operation. The round-shaped signaling unit head is suitable for commercial applications and operates within an ambient temperature range of -25°C to 70°C. It provides IP65 protection, withstands 100,000 mechanical cycles, and meets multiple standards such as IEC 60947-1, UL 508, and CSA certifications. Its compact design ensures easy mounting and reliable performance in industrial environments.
Schneider Electric ZB6AS834 Emergency Stop Pushbutton Head Specifications:
- Mounting diameter: 16 mm
- Shape: Round
- Color: Red
- Operator profile: Mushroom, unmarked
- Reset: Turn to release
- Overall width: 30 mm
- Overall height: 30 mm
- Overall depth: 50 mm
- Bezel material: Plastic
- Mechanical durability: 100000 cycles
- Protection class: Class II IEC 61140
- IP degree of protection: IP65 IEC 60529
- NEMA ratings: 13, 4, 4X UL 50; 13 CSA C22.2 No 94
- Temperature range (storage): -40 to 70°C
- Temperature range (operation): -25 to 70°C
- Vibration resistance: +/- 3 mm (IEC 60068-2-6), 2.500 Hz, 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms) IEC 60068-2-27, 50 gn (11 ms) IEC 60068-2-27
- Standards: JIS C 852, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/ISO 13850, UL 508
- Certifications: CCC, CSA, GOST, UL
- Weight: 0.08 lb (0.035 kg)
Buy the Buy Schneider Electric ZB6AS834 Emergency Stop Pushbutton Head Online
Secure your control systems with the Schneider Electric ZB6AS834 emergency stop pushbutton head. Featuring a robust, IP65-rated design, it withstands harsh industrial environments. Its trigger or latch operation ensures reliable control, while the compact 16mm round shape allows easy integration into panels. Manufactured to meet IEC, UL, and CSA standards, this plastic bezel head offers durability for up to 100,000 cycles. Purchase online today and enhance safety and efficiency in your industrial applications with this dependable, high-quality control component.
Order your Schneider Electric ZB6AS834 emergency stop pushbutton head today and ensure reliable safety operation in your control panel.
