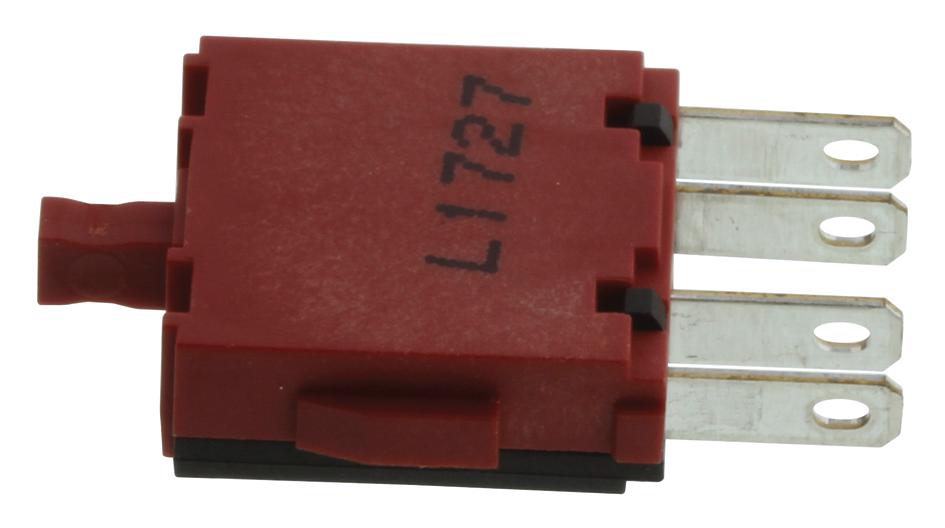

Schneider Electric ZB6E2B Industrial Contact Block
The ZB6E2B is a single contact block designed for head @16 with a 1NC faston connector, ensuring reliable electrical connections in automation systems. Constructed with a silver alloy (Ag/Ni), it features a positive opening conforming to EN/IEC 60947-5-1, with an operating travel of 1 mm and total travel of 3.5 mm. It withstands 1,000,000 cycles, has a rated insulation voltage of 250 V, and a rated impulse withstand voltage of 4 kV. Suitable for industrial control, it offers IP65 protection for demanding environments.
Schneider Electric ZB6E2B Industrial Contact Block Specifications:
- Contacts type and composition: 1NC
- Contacts operation: Slow-break
- Contact material: Silver alloy (Ag/Ni)
- Terminal description: ISO n°1 (1-2)NC
- Operating travel: 1 mm for electrical change, total 3.5 mm
- Operating force: 2.5 N
- Mechanical durability: 5,000,000 cycles
- Short circuit protection: 6 A cartridge fuse g6
- Rated insulation voltage: 250 V (pollution degree 3)
- Rated impulse withstand voltage: 4 kV
- Rated operational current: 3 A at 120 V AC-15, 1.5 A at 240 V AC-15, 0.1 A at 250 V DC-13, 0.22 A at 125 V DC-13
- Electrical durability: 1,000,000 cycles at AC-15 and DC-13
- Protection degree: IP65 conforming to IEC 60529
- Vibration resistance: ±3 mm (2-500 Hz)
- Shock resistance: 30 gn (18 ms) for sine wave, 50 gn (11 ms) for half sine wave
- Environmental rating: Storage -40°C to 70°C, Operation -25°C to 70°C
- Standards: UL 508, EN/IEC 60947-5-1, 60947-1, JIS C 4520, 60947-5-4, CSA, GOST
- Certifications: CSA, UL, CCC, GOST
- Warranty: 18 months
Buy the Buy Harmony XB6 Contact Block Part Number ZB6E2B Online
Purchase the Harmony XB6 contact block ZB6E2B online today for high durability, IP65 protection, and reliable electrical connections suitable for automation and control systems. Featuring a silver alloy contact material, a rated insulation voltage of 250 V, and rated impulse withstand voltage of 4 kV, this contact block offers exceptional performance with up to 5 million mechanical cycles. Designed to withstand harsh environments with vibration and shock resistance, this component is essential for efficient and safe industrial operations.
Buy Harmony XB6 ZB6E2B contact block now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB6E2B?
You can click on the BUY or RFQ button to purchase ZB6E2B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB6E2B?
You can download the ZB6E2B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB6E2B?
Schneider Electric
