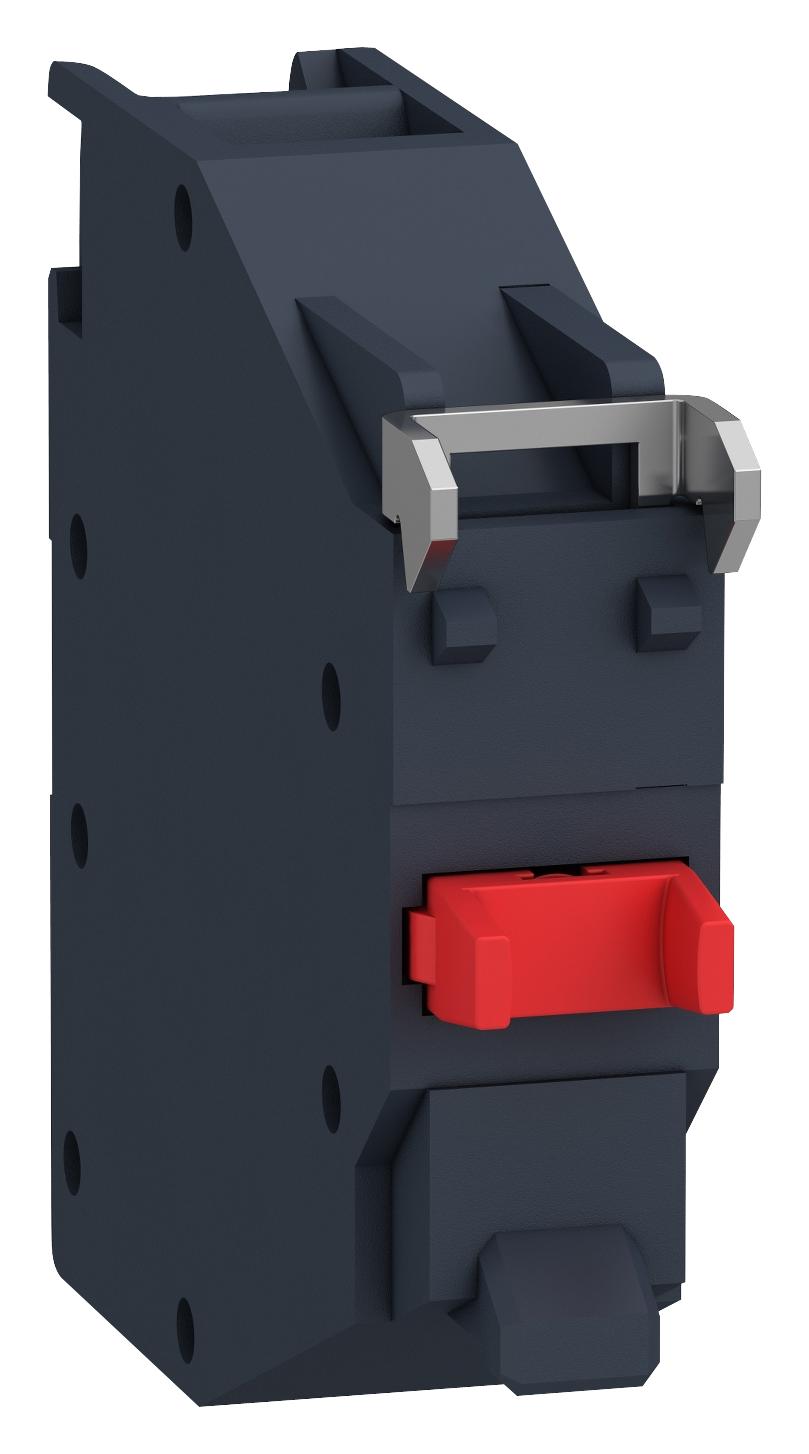

Schneider Electric ZBE102GEX Gas-Protected Contact Block
The ZBE102GEX is a gas-protected NC contact block tailored for hazardous environments, featuring screw clamp terminals and certified for explosive atmospheres. It has a compact design with dimensions of 38 mm width, 10 mm height, and 42.4 mm depth, operating at a temperature range of -50°C to +75°C. Its robust mechanical durability supports up to 1,000,000 cycles, and it complies with international safety standards including UL and IEC. Suitable for front mounting, it ensures reliable operation in hazardous division 2 environments with rated currents up to 10 A and voltages of 415V.
Schneider Electric ZBE102GEX Gas-Protected Contact Block Specifications:
- Dimensions: 38 mm width, 10 mm height, 42.4 mm depth
- Contacts: 1 NC, gas protected contact
- Connection: Screw clamp terminals, 2 x 1.5 mm² without cable, 1 x 2.5 mm² with cable end
- Operating temperature: -50°C to +75°C
- Rated insulation voltage: 415 V
- Electrical ratings: 10 A at 415 V, AC; 1.9 A at 380 V, AC; 0.27 A at 250 V, DC; 2.87 A at 24 V, DC
- Protection level: Ex db eb IIC Gb, hazardous division 2
- Mechanical durability: 1,000,000 cycles
- Mounting: Front mounting
- Certifications: UL, IEC, CSA
- Weight: 0.04 lbs (0.019 kg)
Buy the Schneider Electric Series Harmony XB4 Gas-Protected NC Contact Block: ZBE102GEX
Buy the Schneider Electric Harmony XB4 gas-protected contact block ZBE102GEX online today to guarantee safe, compliant, and durable protection in hazardous environments. This reliable contact block features gas protection, robust construction, and certified safety standards suitable for explosion-risk areas. Easy to install with front mounting and screw clamp terminals, it supports up to 10 A at 415 V and withstands up to 1 million mechanical cycles. Perfect for automation systems in hazardous industrial zones requiring premium quality and safety compliance.
Order your Schneider Electric Series Harmony XB4 ZBE102GEX gas-protected contact block today and ensure safe, reliable operation in hazardous industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZBE102GEX?
You can click on the BUY or RFQ button to purchase ZBE102GEX from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBE102GEX?
You can download the ZBE102GEX datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBE102GEX?
Schneider Electric
