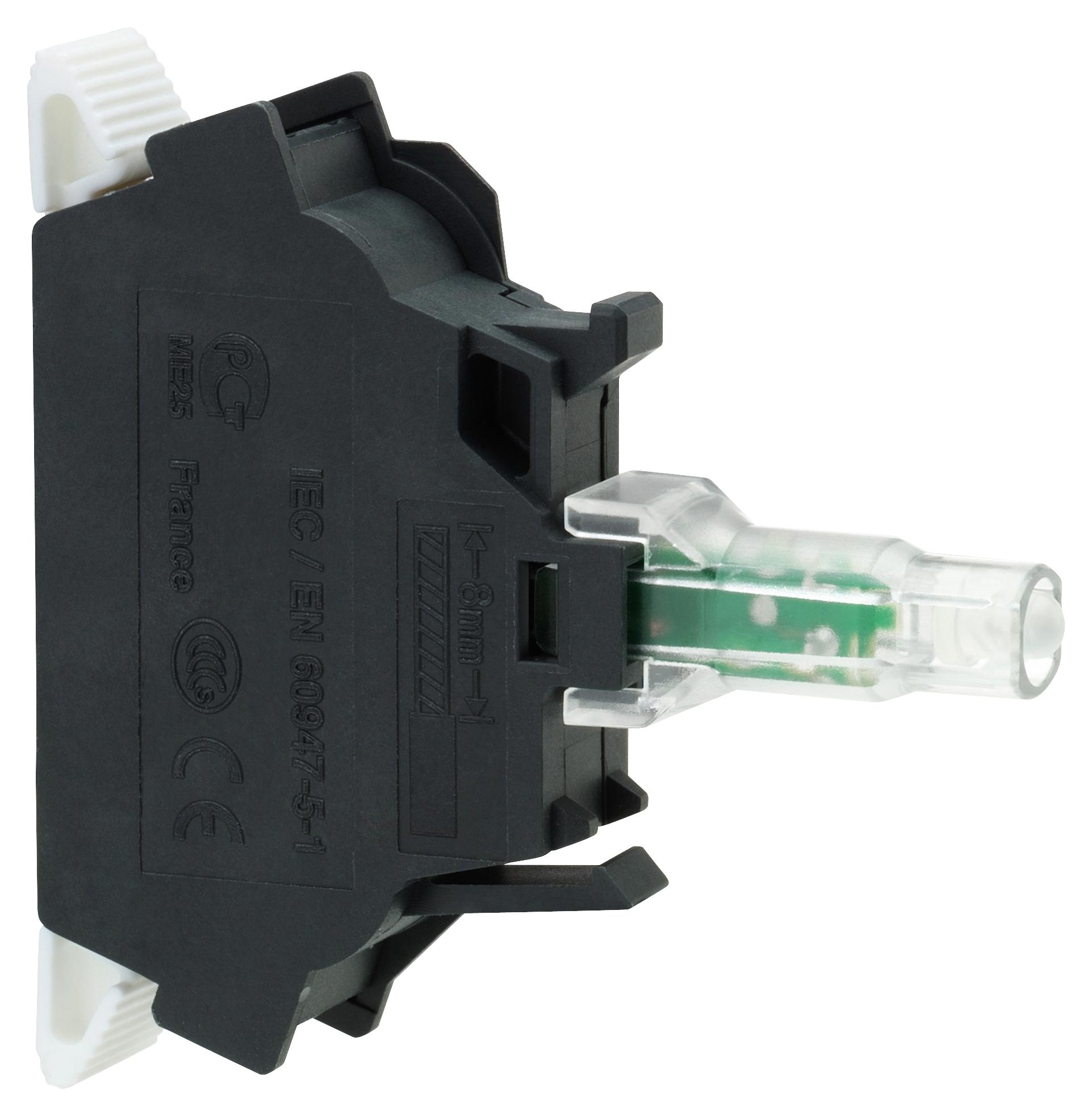

Schneider Electric ZBVJ15 Signal Light Block
The ZBVJ15 is a white light block designed for head @22 integral LED signaling applications, featuring spring clamp terminals for secure connections. It operates on 12V AC/DC supply voltage with a current consumption of 18mA and has a service life of 100,000 hours at rated voltage and 25°C. The light block is mounted frontally and conforms to multiple electrical and safety standards like IEC, UL, and CSA. Its IP20 protection class ensures suitability for industrial environments, and it withstands electromagnetic disturbances such as fast transients, fields, and electrostatic discharges, making it reliable for various automation systems and signaling solutions.
Schneider Electric ZBVJ15 Signal Light Block Specifications:
- Light source: Protected LED
- Colour: White
- Supply voltage: 12 V AC/DC, 50/60 Hz
- Voltage limits: 10..15 VDC, 10.2...13.8 V AC
- Current consumption: 18mA
- Service life: 100,000 hours at 25°C
- Protection level: IP20
- Environmental temperature: -25...70°C for operation, -40...70°C for storage
- Standards: IEC 60947-1, IEC 60529, UL 508, CSA C22.2 No 14
- Electrical resilience: 2kV transient, 6-8kV electrostatic discharge
- Electromagnetic compliance: Class B emission, IEC 55011
- Dimensions: 22 mm width, length approx. 1.89 inches (with accessories)
Buy the Buy Schneider ZBVJ15 Light Block Signaling Part Number ZBVJ15 Online
Purchase the Schneider ZBVJ15 signal light block online today to ensure reliable, high-performance signaling in your industrial automation systems. Featuring protected white LEDs, spring clamp terminals, and conforming to industry standards like IEC 60947-1, this front-mounted light block offers durability and ease of installation. With an IP20 rating, withstands electromagnetic disturbances, and a lifespan of 100,000 hours, it is ideal for controlling and signaling in demanding environments. Secure your stock now for efficient system operation and maintenance.
Order your Schneider Series ZBVJ15 light block today and enhance your industrial signaling with durable, high-quality LED illumination.
Frequently Asked Questions
Where can I buy Schneider Electric ZBVJ15?
You can click on the BUY or RFQ button to purchase ZBVJ15 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBVJ15?
You can download the ZBVJ15 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBVJ15?
Schneider Electric
