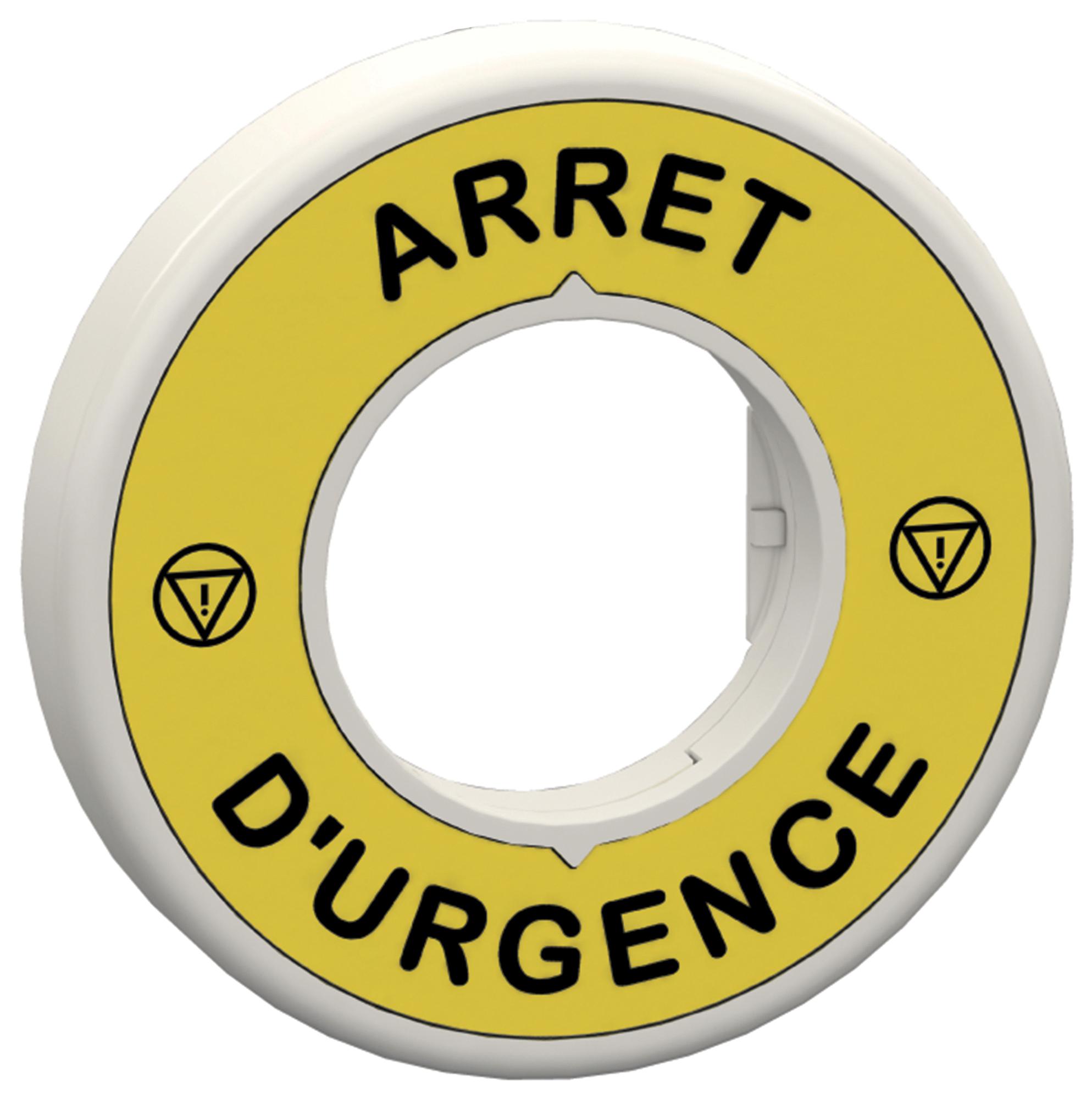

Schneider Electric ZBY9W2B130 Emergency Stop Indicator
The illuminated legend ring is a robust signaling device designed for emergency stop mushroom head push-buttons, featuring a red illuminated LED ring on a yellow plastic background. It is rated for 24 V AC/DC, with a steady signal output and high resistance to environmental stresses such as high-pressure washing and vibrations. This emergency stop indicator complies with international standards, including IEC and UL, offering IP66/IP67/IP69 protection ratings, and is suitable for industrial automation, machinery safety, and control panels. Its durable construction ensures long service life up to 100,000 hours, making it ideal for demanding industrial environments.
Schneider Electric ZBY9W2B130 Emergency Stop Indicator Specifications:
- Shape of signaling unit head: Round
- Cap/Operator or lens colour: Red
- Light source: Protected LED, Integral LED
- Rated supply voltage: 24 V AC/DC at 50/60 Hz
- Supply voltage limits: 19.2...30 V DC, 21.6...26.4 VAC
- Current consumption: 18mA
- Service life: 100000 hours at rated voltage and 25°C
- Ingress Protection: IP66/IP67/IP69/IP69K, Type 13, 12, 4, 4X (UL)
- Material: Plastic
- Vibration resistance: 5 gn (10-500 Hz)
- Shock resistance: 30-50 gn depending on test
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1m distance
- Insulation class: Class II IEC 61140
- Electromagnetic compatibility: IEC 61000-4-4/3 standards, 2 kV fast transient, 10 V/m EM fields
- Temperature range: -40°C to +70°C
- Standards: CSA, EN/IEC 60947 series, UL 508, JIS C8201
- Certifications: UL listed, CSA
Buy the Harmony Series Emergency Stop Signaling Ring: ZBY9W2B130
Enhance your safety system with this durable emergency stop indicator featuring a bright red LED on a yellow background. Rated for 24 V AC/DC, it offers IP69 protection, ensuring reliable operation even in harsh environments. Its long service life of 100,000 hours, resistance to high-pressure washing, shocks, and vibrations, makes it ideal for industrial automation and safety applications. Purchase online today to ensure quick installation and improved machinery safety with this certified and high-performance signaling device.
Buy Harmony Series emergency stop signaling ring ZBY9W2B130 now and experience unmatched reliability and industrial safety performance.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2B130?
You can click on the BUY or RFQ button to purchase ZBY9W2B130 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2B130?
You can download the ZBY9W2B130 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2B130?
Schneider Electric
