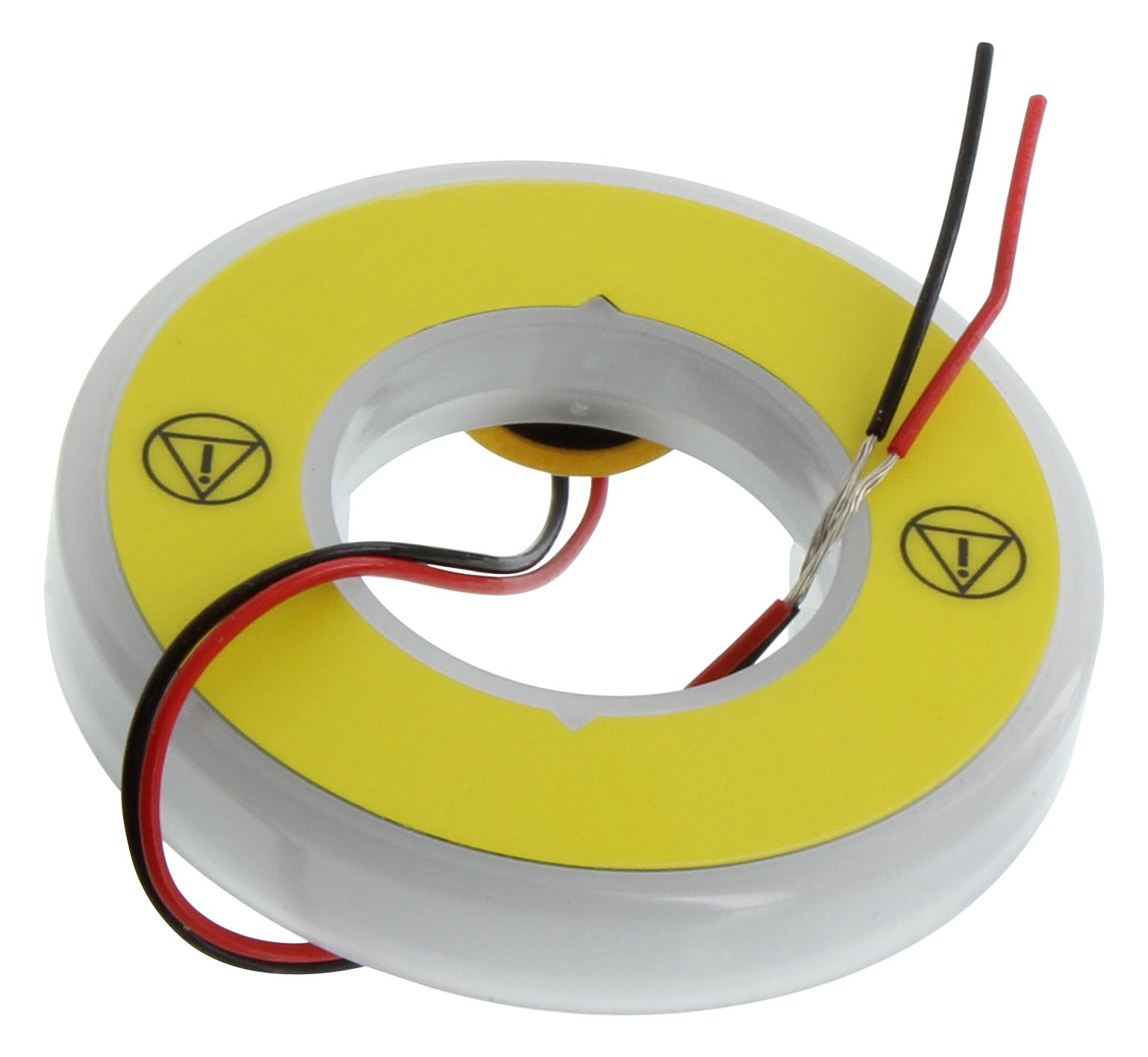

Schneider Electric ZBY9W2B140 Illuminated Legend Ring
This 60mm illuminated legend ring is ideal for emergency stop applications, featuring a robust plastic construction and a fixed red LED indicator. Operating at 24VAC/DC with a power consumption of 18mA, it offers high durability with IP66, IP67, IP69, and IP69K ingress protection ratings, making it suitable for harsh industrial environments. The device is designed with a round shape, an unmarked yellow legend, and incorporates a protected LED light source. Its compact size and high resistance to pressure washers, vibrations, and shocks ensure long-lasting reliable performance in demanding safety systems.
Schneider Electric ZBY9W2B140 Illuminated Legend Ring Specifications:
- Shape of signaling unit: Round
- Diameter: 60 mm
- Material: Plastic
- Color of lens: Red
- Legend marking: Unmarked yellow
- Rated supply voltage: 24 V AC/DC
- Voltage tolerance: 19.2 to 30 V DC, 21.6 to 26.4 VAC
- Current consumption: 18mA
- Ingress protection: IP66, IP67, IP69, IP69K
- Operating temperature: 0 to 158°F (-40 to 70°C)
- Shock resistance: 30 gn for 18 ms
- Vibration resistance: 5 gn 10...500 Hz
- Service life: 100,000 hours at 25°C
- Material properties: Protected LED, integral design
- Standards compliance: IEC 60947-5-1, IEC 60947-5-4, UL 508
- Environmental resistance: Resistant to high pressure washer, shocks, vibrations
- Certifications: UL Listed, CSA
- Dimensions: Height 2.36 in (60 mm), Width 0.37 in (9.3 mm)
Buy the Buy Schneider Electric Illuminated Legend Ring Part Number ZBY9W2B140 Online
Experience reliable safety signaling with the Schneider Electric illuminated legend ring. Designed with IP69K protection and a robust plastic body, it withstands demanding industrial environments. Operating at 24VAC/DC with an 18mA power draw, it features a bright red integral LED, ensuring visibility. Perfect for emergency stop applications, its durability is enhanced by resistance to shocks, vibrations, and high-pressure washers. Purchase this versatile component online today for enhanced safety and long-term performance in your control panels and safety systems.
Get Schneider Electric ZBY9W2B140 today—built for robustness, safety, and long-lasting durability in industrial control systems.
