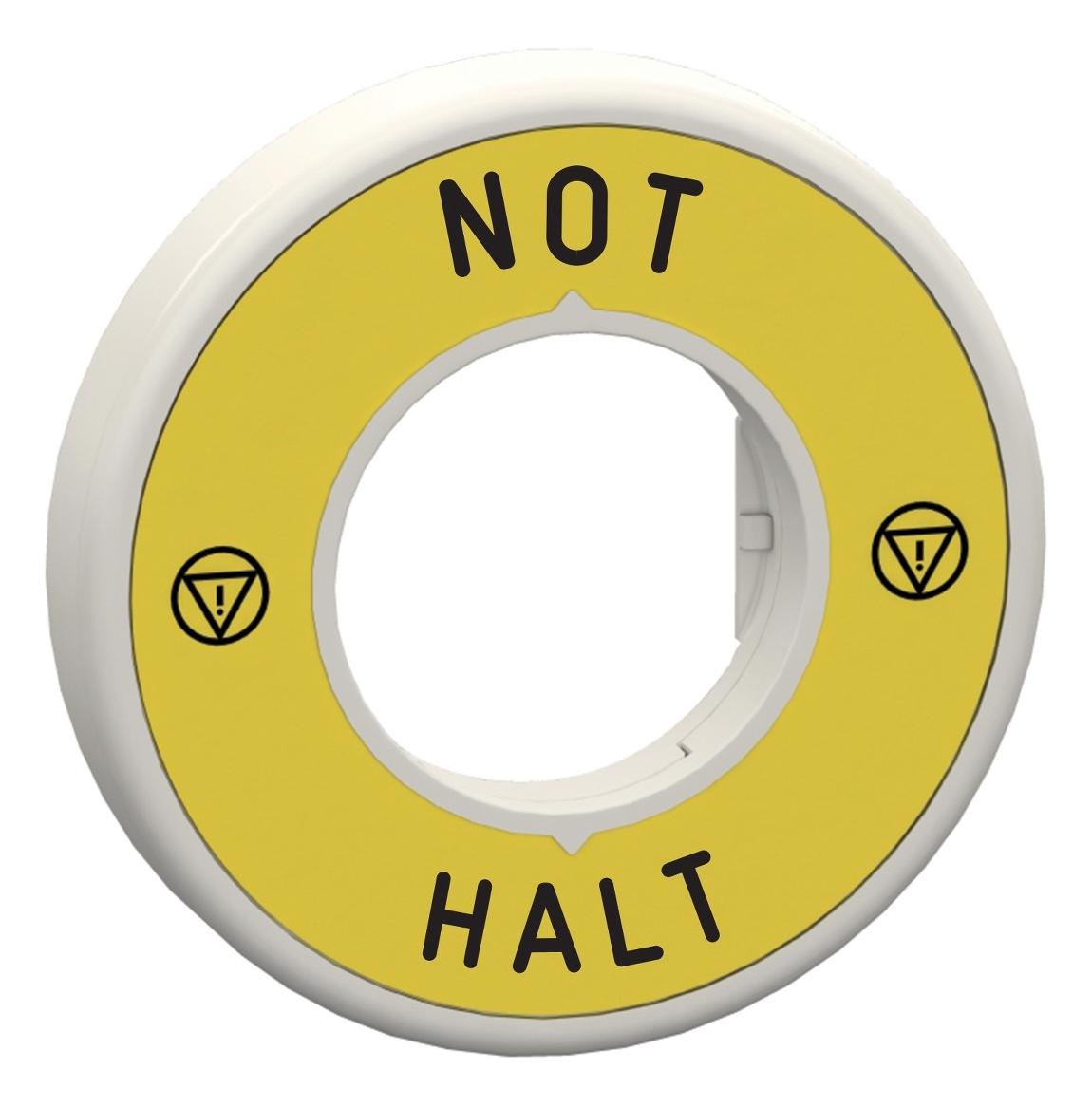

Schneider Electric ZBY9W2B230 Illuminated Legend Ring
The illuminated marked legend ring features a yellow plastic housing with a red fixed illuminated ring displaying NOT HALT. It operates on 24 V AC/DC and includes a protected LED light source with integral bulb base. Designed for emergency stop mushroom push-buttons, it conforms to IEC and UL standards, offering IP66/IP67/IP69 protection, and withstands high-pressure washes up to 7,000,000 Pa. The device ensures a 100,000-hour service life at rated voltage, has a compact round shape, and is suitable for industrial safety applications demanding reliable signaling and durability.
Schneider Electric ZBY9W2B230 Illuminated Legend Ring Specifications:
- Material: Plastic
- Color of lens: Red
- Shape: Round
- Marking: NOT HALT
- Label dimensions: 60mm height, 9.3mm width
- Rated supply voltage: 24 V AC/DC
- Supply voltage limits: 19.2 to 30 V DC
- Light source: Protected LED, integral bulb base, red light
- Current consumption: 18 mA
- Service life: 100,000 hours at 25°C
- Protection ratings: IP66, IP67, IP69, UL Type 13/12/4/4X
- Operating ambient temperature: -40°C to 70°C
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Vibration resistance: 5 gn, shock resistance: 30 gn to 50 gn
- Electromagnetic compatibility: IEC 61000-4-4/3/2, IEC 60068-2-6
- Certifications: UL listed, CSA, IEC standards compliance
- Warranty: 18 months
- Protective treatment: TH
Buy the Harmony Series Illuminated Legend Ring: ZBY9W2B230
Upgrade your safety systems with the high-quality illuminated legend ring designed for emergency stop stations. This yellow plastic ring with a red NOT HALT marking features a protected LED light source operating at 24 V AC/DC. Its rugged IP66/IP67/IP69 ratings guarantee resistance to water, dust, and high-pressure washing, making it ideal for harsh industrial environments. With a long service life of 100,000 hours, it ensures dependable signaling. Order online now to enhance safety and compliance effortlessly with this durable, reliable signaling component.
Order your Harmony Series ZBY9W2B230 illuminated legend ring today and ensure reliable emergency signaling with durable, IP-rated protection for industrial safety.
