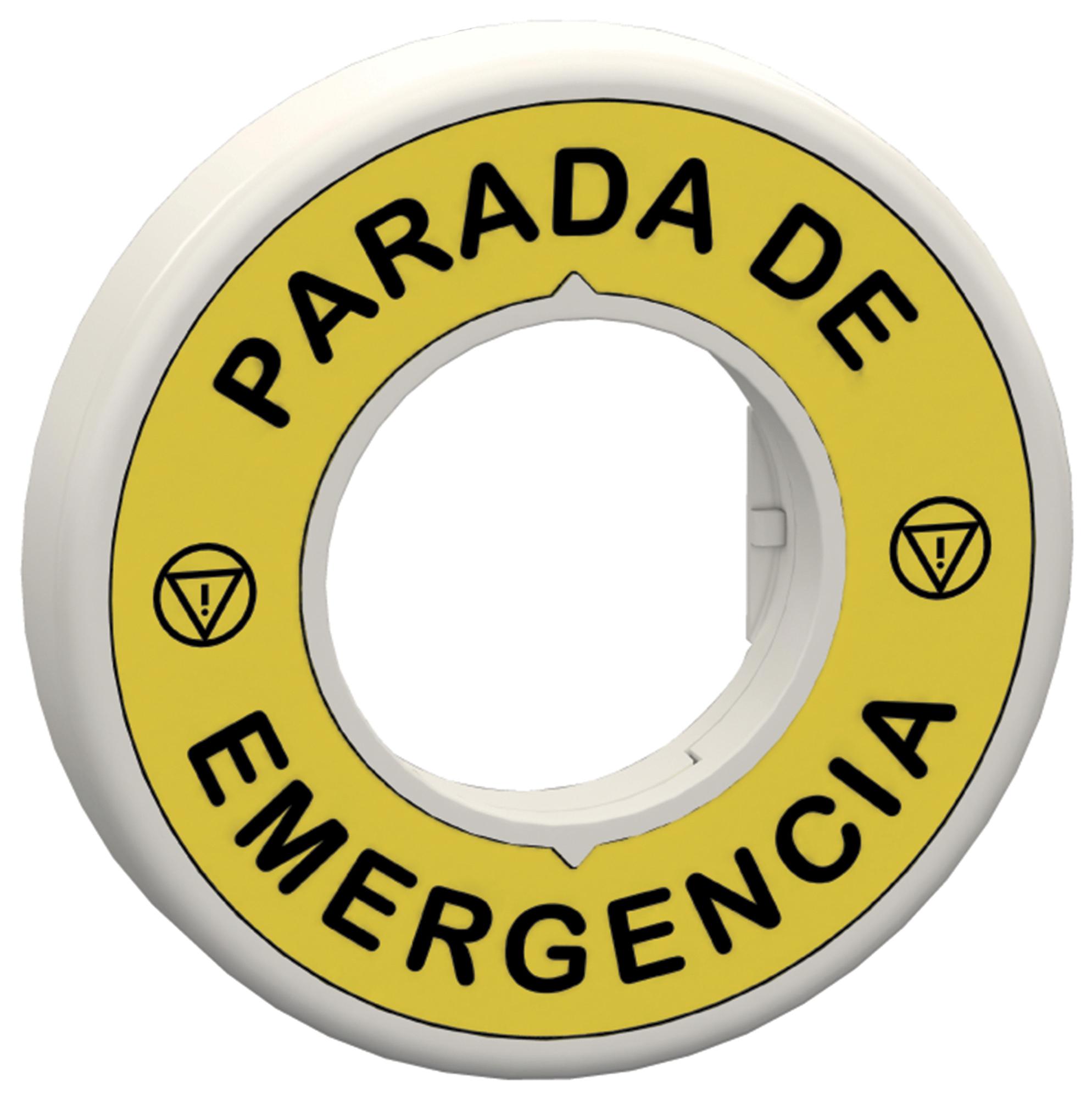

Schneider Electric ZBY9W2B430 Emergency Stop Legend Ring
This illuminated emergency stop legend ring features a durable plastic construction, a red lens, and a protected LED light source. Designed for safety applications, it displays a black PARADA DE EMERGENCIA on a yellow background, with a diameter of 60mm and a height of 60mm. It conforms to multiple standards including UL, CSA, IEC, and ISO, with high resistance to pressure wash, vibration, shocks, and electromagnetic interference. Suitable for industrial environments, it is rated for 24 V AC/DC power supply, IP66/IP67/IP69 protection, and has a typical service life of 100,000 hours, ensuring reliable operational performance.
Schneider Electric ZBY9W2B430 Emergency Stop Legend Ring Specifications:
- Material: Plastic
- Diameter: 60mm
- Height: 60mm
- Light source: Protected LED, Red
- Rated voltage: 24 V AC/DC (19.2-30 V DC, 21.6-26.4 VAC)
- Power consumption: 18mA
- Protection rating: IP66, IP67, IP69, IP69K, UL Type 13,12,4,4X
- Vibration resistance: 5 gn (10-500 Hz)
- Shock resistance: 30 gn for 18 ms, 50 gn for 11 ms
- Resistance to pressure wash: 7,000,000 Pa at 55°C
- Electrical insulation class: Class II
- Standards: UL 508, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14
- Service life: 100,000 hours
- Operating temperature: -40°C to 70°C
- Suitable for emergency stop applications, with Italian labeling
- Compliance: RoHS, China RoHS, EU, UL, CSA
Buy the Brand Series Emergency Stop Legend Ring: ZBY9W2B430
Secure your safety signage with the reliable and durable emergency stop legend ring, compatible with industrial control panels and machinery. This high-quality component features a protected LED light source, IP69 protection rating, and is crafted from tough plastic to withstand harsh environments. It’s easy to install, compliant with international safety standards including UL and CSA, and offers a long service life of 100,000 hours. Perfect for industrial safety systems, order online now for fast delivery and peace of mind in safety-critical applications.
Order your Brand Series emergency stop legend ring ZBY9W2B430 today and ensure reliable safety signage for your industrial environment.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2B430?
You can click on the BUY or RFQ button to purchase ZBY9W2B430 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2B430?
You can download the ZBY9W2B430 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2B430?
Schneider Electric
