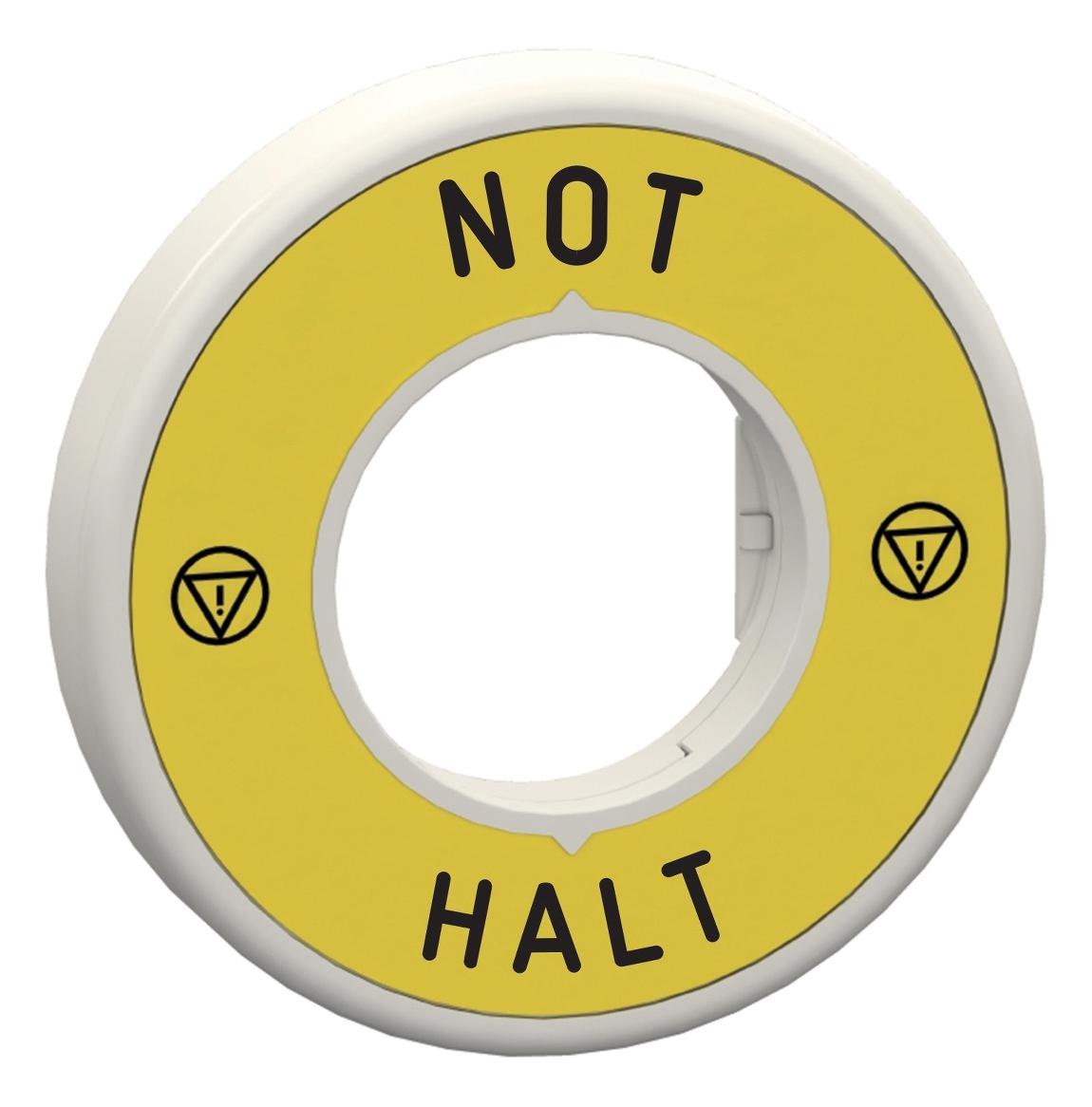

Schneider Electric ZBY9W2G230 Illuminated Signaling Ring
This illuminated signaling ring features a yellow plastic body with a red fixed LED indicator, suitable for emergency stop applications. Rated for 110-120 V AC, it is designed with a protected LED light source, and features a round shape, with a black 'NOT-HALT' marking on a yellow background. It is compliant with IEC and UL standards, with high durability, resistance to high pressure washing (7,000,000 Pa), and a service life of 100,000 hours at 25°C. Its IP66/IP67/IP69 protection levels ensure excellent environmental sealing, making it ideal for industrial safety and automation systems.
Schneider Electric ZBY9W2G230 Illuminated Signaling Ring Specifications:
- Shape: Round
- Color of lens: Red
- Material: Plastic
- Rated supply voltage: 110-120 V AC at 50/60 Hz
- Current consumption: 14 mA
- Service life: 100000 hours at 25°C
- Ingress protection: IP66, IP67, IP69, UL Type 12, 13, 4, 4X
- Electrical insulation class: Class II conforming to IEC 61140
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1m distance
- Overvoltage category: Class I conforming to IEC 60536
- Vibration resistance: 5 gn (10-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms), 25 gn (6 ms, 1000 shocks)
- Resistance to fast transients: 2 kV
- Resistance to electromagnetic fields: 10 V/m
- Resistance to electrostatic discharge: 4 kV contact, 8 kV air
- Standards: UL 50E, IEC 60947-5-1/-4, UL 508
- Certifications: UL listed, CSA
- Dimensions: Diameter 60 mm, height 9.3 mm
- Operating temperature: -40°C to 70°C
- Storage temperature: -40°C to 70°C
Buy the Buy Harmony Illuminated Signaling Ring Part Number ZBY9W2G230 Online
Purchase the Harmony illuminated signaling ring ZBY9W2G230 online today to ensure reliable emergency stop indication in your industrial automation setup. Featuring a robust yellow plastic body with a red LED indicator, it supports 110-120 V AC operation, complies with IEC and UL standards, and offers IP66/IP67/IP69 waterproofing for demanding environments. With a lifetime of 100,000 hours, resistance to high pressure washing, and excellent environmental sealing, this signaling ring guarantees safety, durability, and ease of installation in industrial applications.
Buy Harmony ZBY9W2G230 now and enhance your safety solutions with durable, high-quality industrial signaling indicators.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2G230?
You can click on the BUY or RFQ button to purchase ZBY9W2G230 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2G230?
You can download the ZBY9W2G230 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2G230?
Schneider Electric
