Schneider Electric ZBY9W2G430 Emergency Signaling Ring

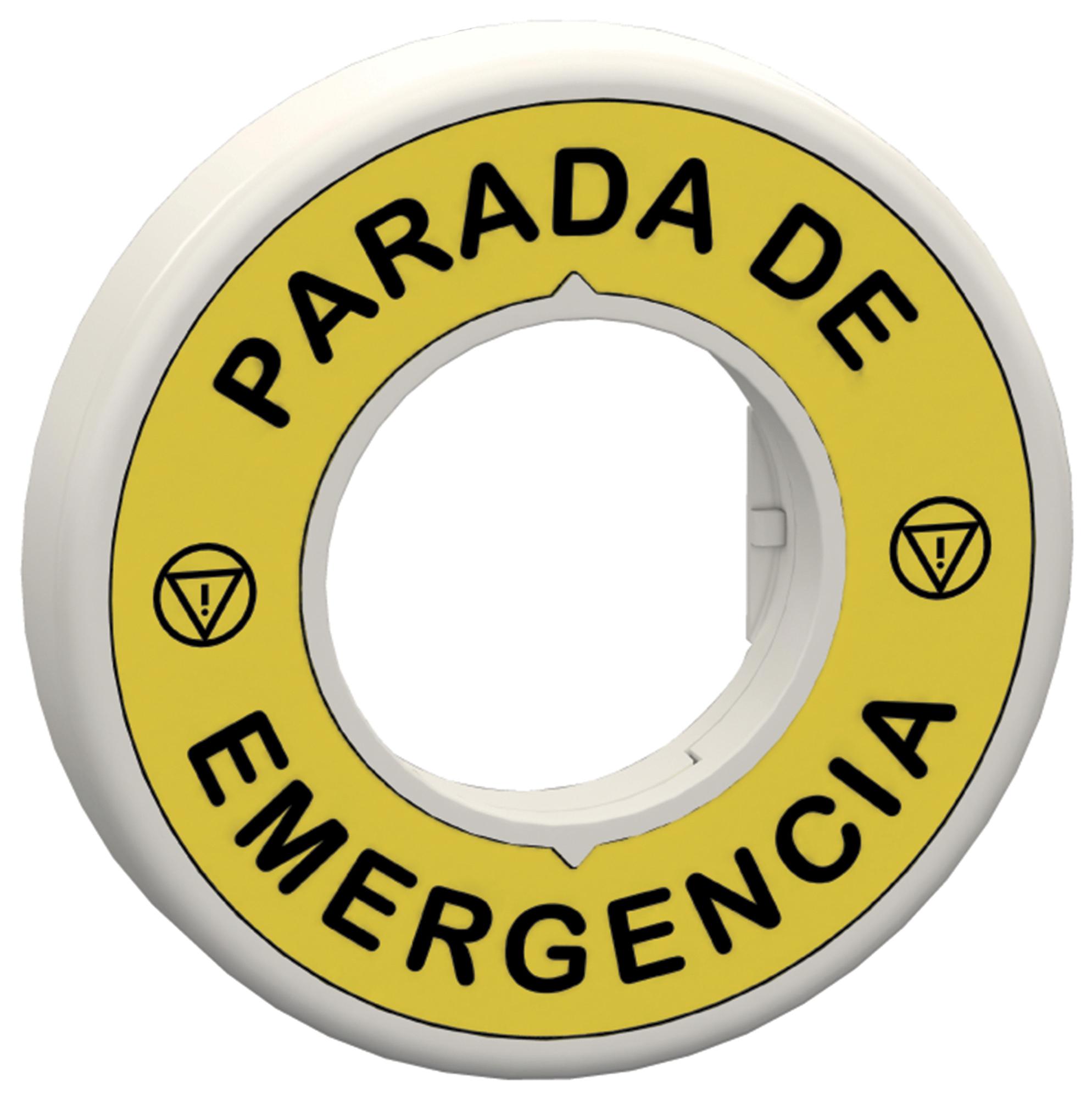

The illuminated signaling ring is a round, plastic emergency stop indicator with a protected red LED light source, designed for industrial applications. It features a yellow background with black PARADA DE EMERGENCIA marking, rated for 110-120 V AC with a steady light signal. The device offers high resistance to water, shocks, and electromagnetic interference. Suitable for hazardous environments, it is compliant with multiple standards, including UL and CSA, and has a service life of 100,000 hours, ensuring durability and safety in emergency situations.
Schneider Electric ZBY9W2G430 Emergency Signaling Ring Specifications:
- Shape: Round
- Material: Plastic
- Color of lens: Red
- Background color: Yellow
- Marking: BLACK PARADA DE EMERGENCIA
- Label dimensions: 60mm x 9.3mm
- Rated voltage: 110-120 V AC at 50/60 Hz
- Supply voltage limits: 100-132 VAC
- Current consumption: 14 mA
- Light source: Protected LED
- Bulb base: Integral LED
- Service life: 100,000 hours
- Protection degree: IP66, IP67, IP69, Type 13, 12, 4, 4X
- Vibration resistance: 5 gn
- Shock resistance: 30 gn, 50 gn
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Overvoltage category: Class II
- Insulation class: Class II IEC 61140
- Standards: UL, CSA, IEC 60947-5-1, EN/IEC 60947-5-4
- Environmental conditions: -40°C to 70°C storage and operation
- Warranty: 18 months
Buy the Buy Harmony Emergency Signaling Ring Part Number ZBY9W2G430 Online
Purchase the high-quality emergency signaling ring online today for reliable safety indication in industrial environments. Crafted with durable plastic and equipped with a protected red LED light source, this round device features a yellow background with clear black emergency markings. Rated for 110-120 V AC and resistant to high-pressure water, shocks, and electromagnetic interference, it ensures long-lasting performance. Compliant with multiple safety standards, including UL and CSA, this signaling device provides dependable emergency alerts with a service life of up to 100,000 hours, enhancing workplace safety efficiently.
Get Harmony ZBY9W2G430 today—designed for industrial safety with high durability and reliable emergency signaling.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2G430?
You can click on the BUY or RFQ button to purchase ZBY9W2G430 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2G430?
You can download the ZBY9W2G430 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2G430?
Schneider Electric
