Schneider Electric ZBY9W2G630 Emergency Stop Legend Ring

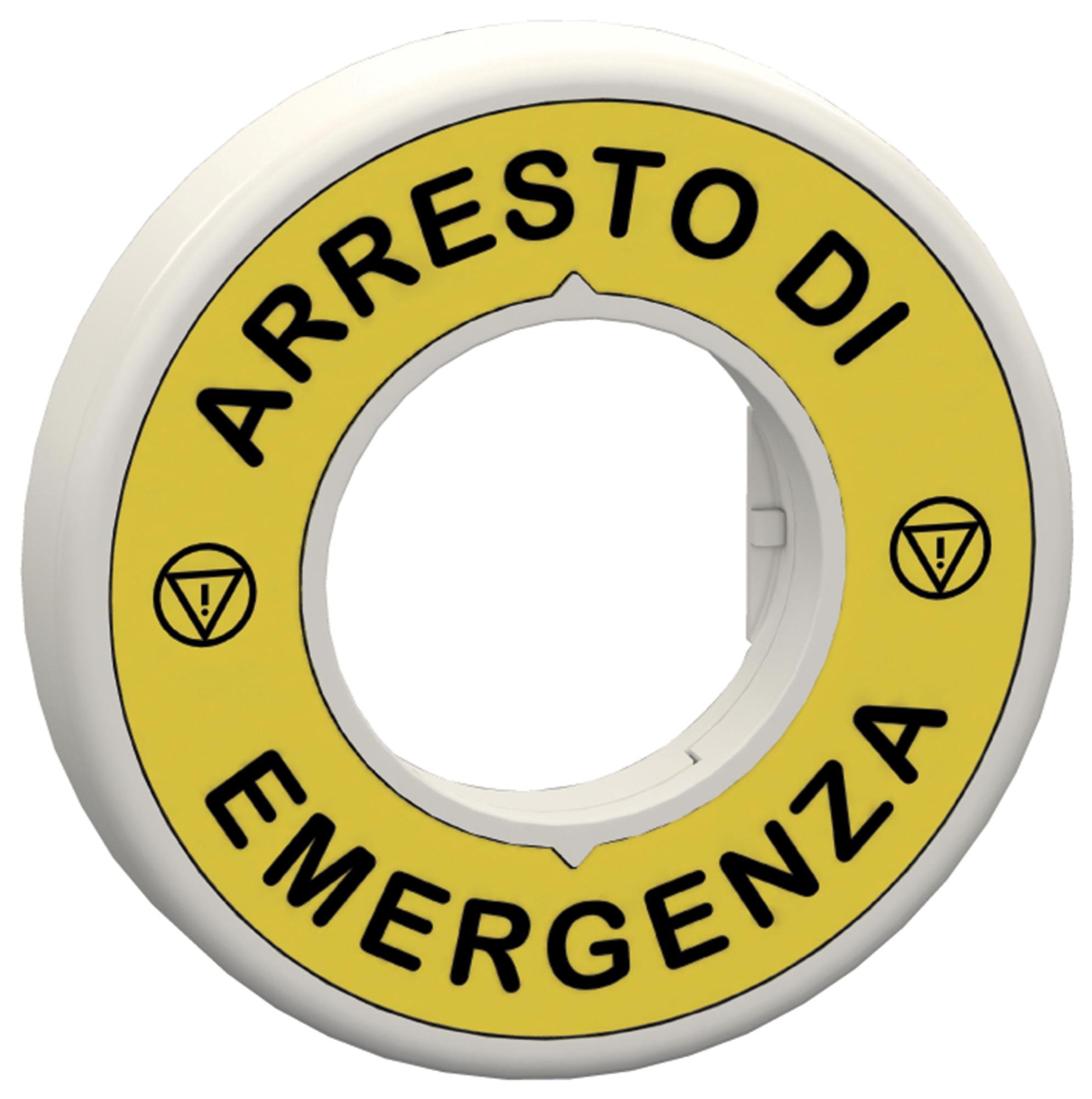

The ZBY9W2G630 is an illuminated emergency stop legend ring with a red fixed LED, designed for industrial safety applications. It features a round plastic housing with a yellow label, black ARRESTO EMERGENZA marking, and a protected red LED light source. Operating at 110-120 V AC, it offers high resistance to pressure washing and vibrations, and conforms to multiple safety standards including UL, CSA, and IEC. Suitable for emergency stop buttons, it ensures clear visibility, durability, and reliable performance in harsh environments.
Schneider Electric ZBY9W2G630 Emergency Stop Legend Ring Specifications:
- Shape: Round
- Light source: Protected LED, Red
- Rated supply voltage: 110-120 V AC at 50/60 Hz
- Supply voltage limits: 100-132 VAC
- Current consumption: 14 mA
- Service life: 100,000 hours at rated voltage and 25°C
- Material: Plastic
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, distance 0.1m
- Protection class: Class II conforming to IEC 61140
- IP rating: IP66, IP67, IP69, IP69K, Type 13, 12, 4, 4X (UL 50E)
- Vibration resistance: 5 gn
- Shock resistance: 30 gn
- Overvoltage category: Class I conforming to IEC 60536
- Electromagnetic compatibility: IEC 61000-4-4, IEC 61000-4-3
- Environmental ratings: -40°C to 70°C for storage and operation
- Standards: UL, CSA, IEC 60947-5-1, IEC 60947-5-4, UL 508
- Certifications: UL listed, CSA
- Dimensions: Label height 60mm, width 9.3mm; Mounting hole max diameter 9mm
Buy the Harmony Series Emergency Stop Legend Ring: ZBY9W2G630
Purchase the Harmony Series emergency stop legend ring ZBY9W2G630 online now and ensure your safety measures are reliable and visible. This robust, IP69K-rated indicator features a red LED light, yellow labeling, and a durable plastic housing designed to withstand harsh environments. Easy to install with its round shape and mounting options, it offers long operational life of 100,000 hours. Ideal for industrial safety applications, this UL and CSA certified device is essential for any emergency stop setup, providing clear signaling and enhanced visibility when every second counts.
Order your Harmony Series emergency stop legend ring ZBY9W2G630 today and enhance safety with durable, high-performance signaling components.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2G630?
You can click on the BUY or RFQ button to purchase ZBY9W2G630 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2G630?
You can download the ZBY9W2G630 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2G630?
Schneider Electric
