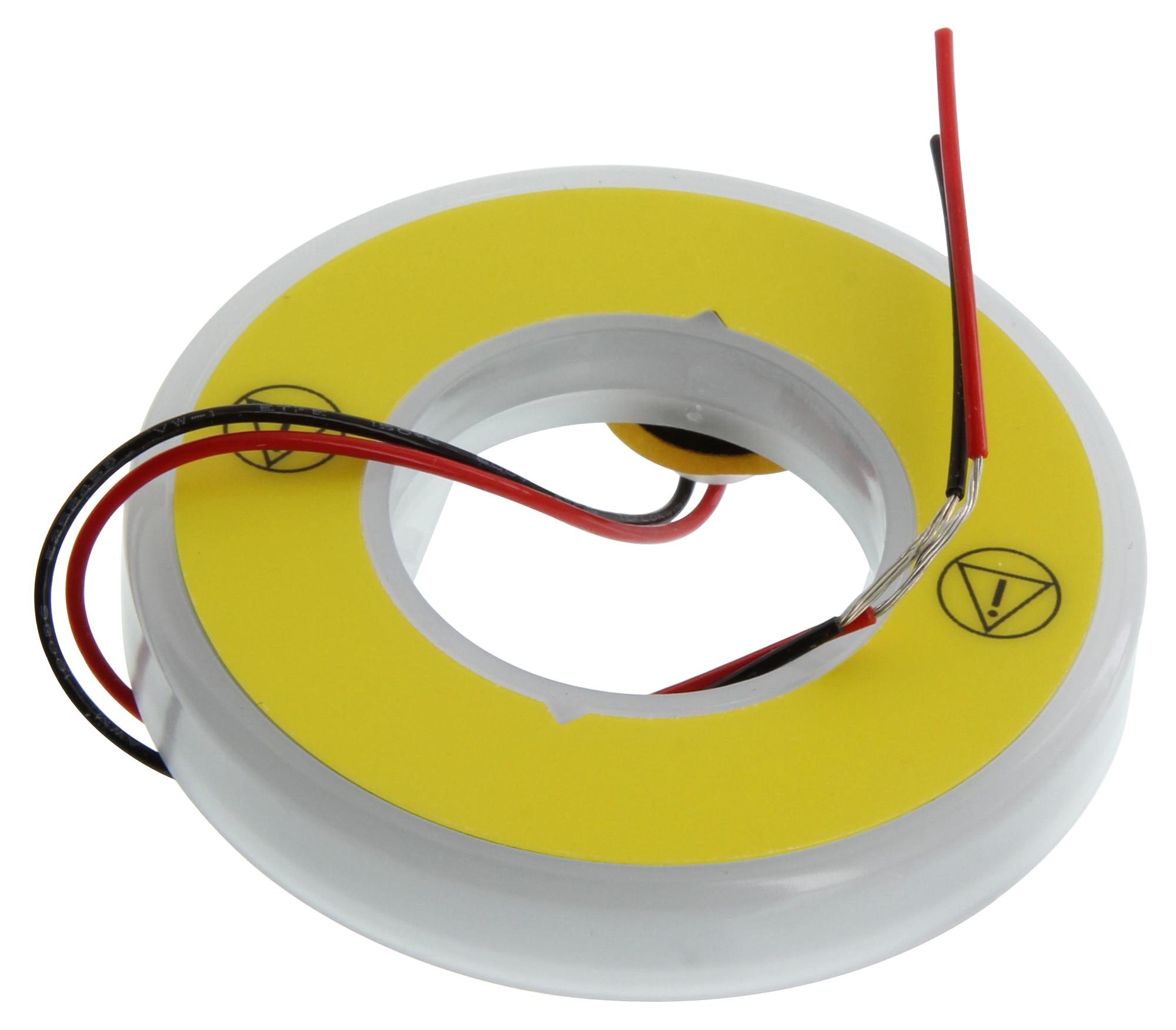

Schneider Electric ZBY9W2M140 Illuminated Legend Ring
A 60mm illuminated legend ring designed for emergency stop applications. It operates at 230 VAC with a power consumption of 14mA. The ring features multiple ingress protection ratings: IP66, IP67, IP69, and IP69K, ensuring high durability and resistance to dust and water. Made of plastic, it includes a fixed red LED indicating status. Compatible with control panels, it is designed for industrial environments, offering reliable visibility and long-lasting performance. Its robust construction makes it suitable for demanding safety and signaling applications.
Schneider Electric ZBY9W2M140 Illuminated Legend Ring Specifications:
- Shape: Round
- Diameter: 60 mm
- Material: Plastic
- Color of lens: Red
- Illumination: Fixed Red LED
- Rated supply voltage: 230...240 V AC 50/60 Hz
- Power consumption: 14 mA
- Ingress protection: IP66, IP67, IP69, IP69K
- Electrical insulation class: Class II IEC 61140
- Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131°F (55°C)
- Ambient temperature for operation and storage: -40...158 °F (-40...70 °C)
- Service life: 100000 hours
- Shock resistance: 30 gn 18 ms
- Vibration resistance: 5 gn 10...500 Hz
- Standards compliance: EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Certifications: UL Listed, CSA
- Enclosure ratings: Type 13, 12, 4, 4X UL 50E
Buy the Buy Schneider Electric Illumined Legend Ring Part Number ZBY9W2M140 Online
Purchase the Schneider Electric illuminated legend ring ZBY9W2M140 online today. Designed for emergency stop applications, this durable 60mm round signaling device features a fixed red LED and multiple ingress protection ratings including IP66, IP67, IP69, and IP69K. Crafted from high-quality plastic, it offers reliable operation at 230 VAC with low power consumption of 14mA. Ideal for industrial safety and control panels, this product ensures long-lasting performance and visibility in harsh environments. Order now for quick delivery and guaranteed quality.
Get Schneider Electric ZBY9W2M140 today—built for industrial control safety and high durability in demanding environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2M140?
You can click on the BUY or RFQ button to purchase ZBY9W2M140 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2M140?
You can download the ZBY9W2M140 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2M140?
Schneider Electric
