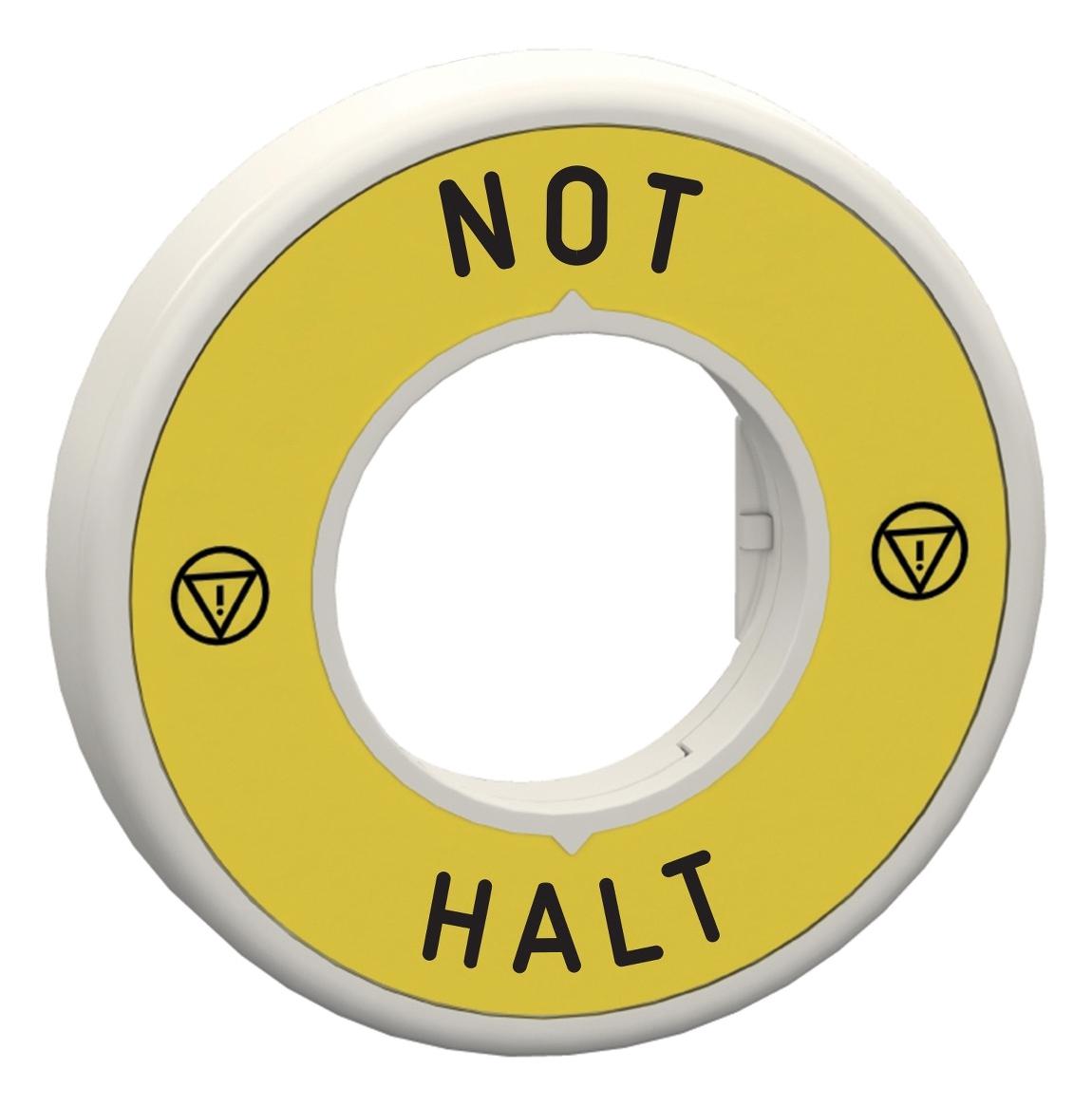

Schneider Electric ZBY9W2M230 Illuminated Signal Ring
The illuminated signal legend ring features a round plastic head with a yellow background and red fixed illuminated LED marking. Designed for emergency stop applications, it operates on 230...240 V AC, with steady red illumination. Constructed with high-quality plastic, it supports IP66/IP67/IP69/IP69K protection ratings suitable for harsh environments. Its compact design measures approximately 60mm in height and 9.3mm in width. This device complies with IEC, UL, and CSA standards, offering durable service life of 100,000 hours, resistance to mechanical shocks, vibrations, and electromagnetic interference, making it ideal for industrial safety and automation systems.
Schneider Electric ZBY9W2M230 Illuminated Signal Ring Specifications:
- Shape of signaling unit head: Round
- Cap/Operator or lens color: Red
- Material: Plastic
- Height: 60mm
- Width: 9.3mm
- Rated supply voltage: 230-240 V AC at 50/60 Hz
- Light source: Red LED, steady illumination
- Current consumption: 14 mA
- Service life: 100,000 hours
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Enclosure protection ratings: IP66, IP67, IP69, IP69K
- Vibration resistance: 5 gn (10-500 Hz)
- Shock resistance: 30 gn (18 ms)
- Resistance to electromagnetic fields: 10 V/m
- Resistance to electrostatic discharge: 4 kV contact, 8 kV air
- Complies with standards: IEC 60947-5-1, UL, CSA
- Operating temperature: -40°C to 70°C
- Overvoltage category: Class II
Buy the Buy Industrial Signal Devices Part Number ZBY9W2M230 Online
Purchase the ZBY9W2M230 illuminated signal legend ring online and enhance your safety systems. This robust device features a red LED light, IP69K protection, steady illumination, and reliable operation on 230-240V AC. Its durable plastic construction ensures long service life of 100,000 hours, resistant to shocks, vibration, and electromagnetic interference. Ideal for industrial automation, emergency stops, and safety signaling, it meets IEC, UL, and CSA standards, providing dependable performance in demanding environments.
Get ZBY9W2M230 illuminated signaling ring today—designed for industrial safety, durable, IP69K rated, and suitable for harsh environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W2M230?
You can click on the BUY or RFQ button to purchase ZBY9W2M230 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W2M230?
You can download the ZBY9W2M230 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W2M230?
Schneider Electric
