Schneider Electric ZBY9W3B130 Emergency Stop Signaling Device

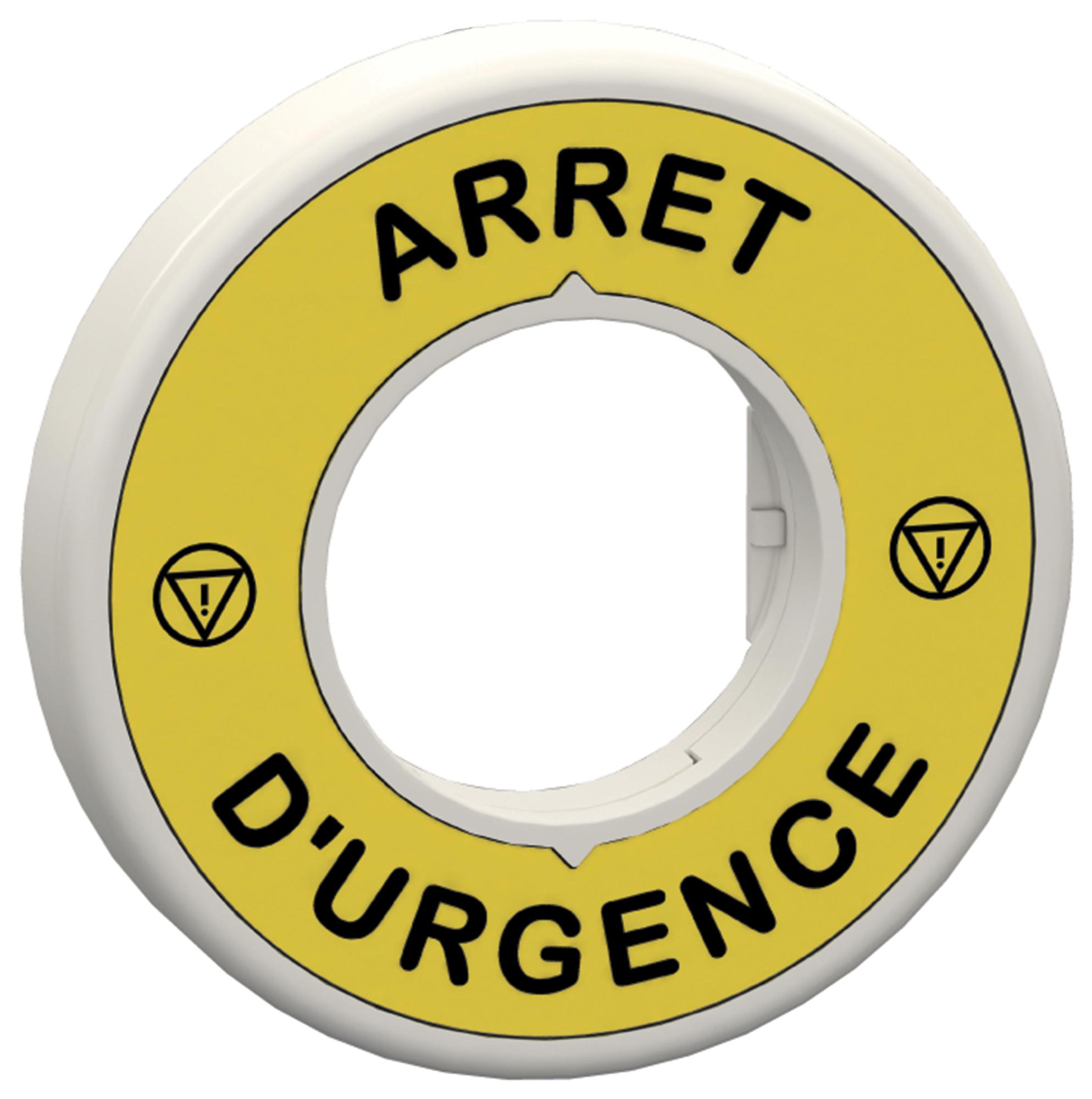

The illuminated marked legend ring is a circuit signaling device used in industrial automation for emergency stop applications. It features a protected LED light source, available in white or red, with a yellow background and black 'ARRET D'URGENCE' marking. The round head has an illuminated ring and operates at 24 V AC/DC, conforming to safety and electrical standards. Its robust plastic construction provides IP66/IP67/IP69/IP69K protection, suitable for harsh environments, with a lifespan of 100,000 hours and resistance to high pressure washing and electromagnetic interference. Ideal for ensuring safety in complex machinery setups.
Schneider Electric ZBY9W3B130 Emergency Stop Signaling Device Specifications:
- Range of product: Harmony
- Type of signaling unit: Illuminated marked legend ring
- Shape: Round
- Light source: Protected LED, available in white or red
- Rated voltage: 24 V AC/DC at 50/60 Hz
- Power consumption: 18 mA
- Service life: 100,000 hours at 25°C
- Ingress protection: IP66, IP67, IP69, IP69K per IEC 60529
- Electrical insulation class: Class II conforming to IEC 61140
- Operating temperature: -40°C to +70°C
- Compliance: UL, CSA, EN/IEC standards
- Shock resistance: 30 gn, vibration resistance: 5 gn
- Material: Plastic
- Dimensions: Height 60mm, Width 9.3mm
- Mounting: Via Toes or specified mounting options
- Environmental: Suitable for harsh environments
- Protection against high pressure washing: 7,000,000 Pa at 55°C
- Wiring: Red, Black, White, typical wiring diagrams available
Buy the Buy Harmony Illuminated Legend Ring Part Number ZBY9W3B130 Online
Purchase the Harmony illuminated emergency stop signaling ring ZBY9W3B130 online today to enhance machine safety. Its robust plastic construction features an LED light source in red or white, with an IP69K rating for high-pressure wash resistance. Operating at 24 V AC/DC, it offers a lifespan of 100,000 hours, and conforms to multiple safety standards, ensuring reliable performance even in harsh environments. Ideal for industrial safety—including emergency stop systems—we make it easy to order this essential component with fast shipping and trusted quality.
Buy Harmony ZBY9W3B130 now and ensure visibility and safety with this durable, IP69K rated emergency stop signaling ring with LED illumination.
