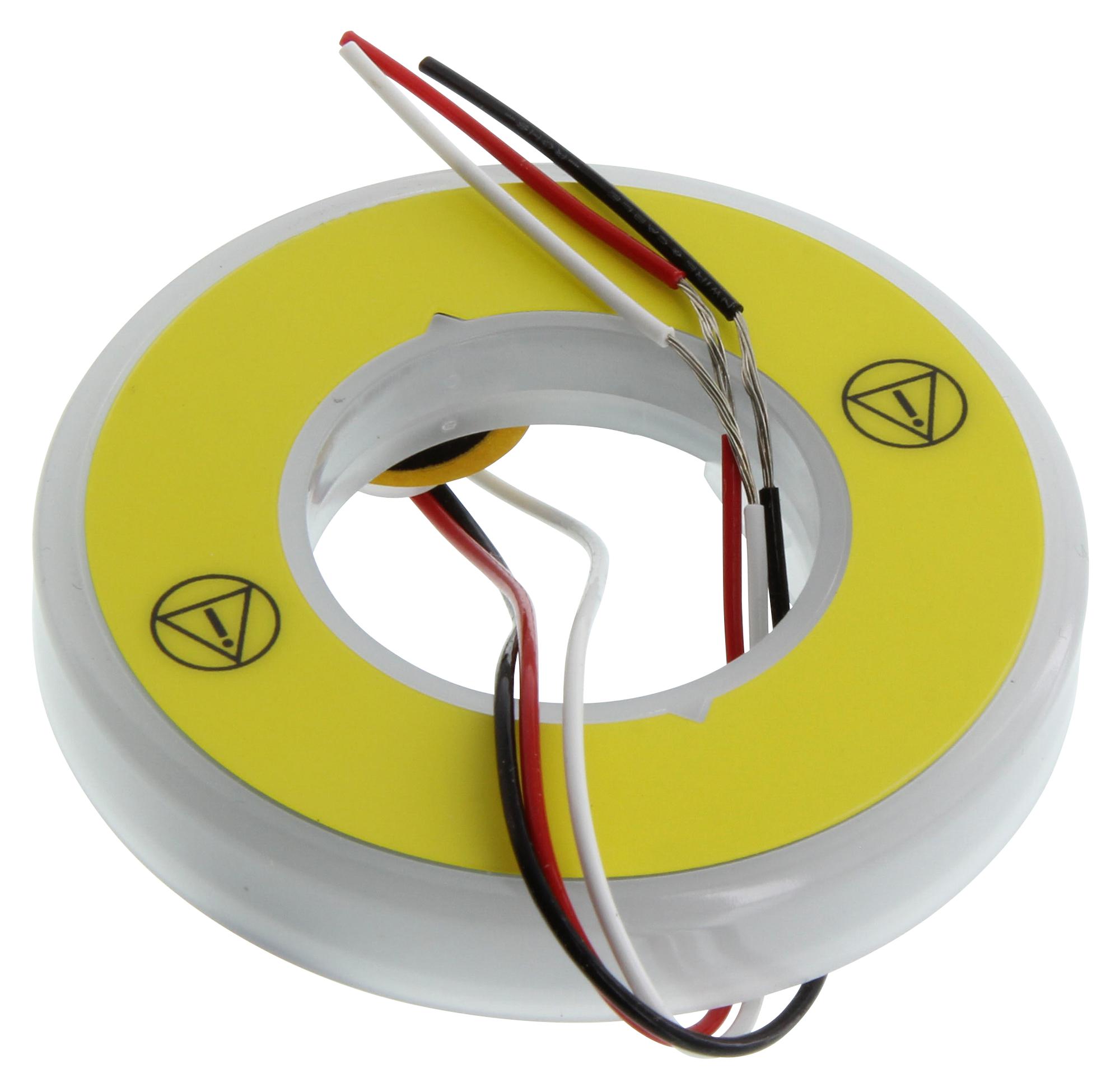

Schneider Electric ZBY9W3B140 Illuminated Legend Ring
A 60mm illuminated legend ring designed for emergency stop applications. It operates at 24VAC or 24VDC with a power consumption of 18mA. The ring is rated for IP66, IP67, IP69, and IP69K standards, ensuring high levels of protection against dust and water. Made from durable plastic material, it features an integral LED that can be white or red. Suitable for industrial environments requiring reliable emergency stop indicators.
Schneider Electric ZBY9W3B140 Illuminated Legend Ring Specifications:
- Diameter: 60 mm
- Material: Plastic
- Color: Yellow unmarked, LED color selectable: White or Red
- Rated Voltage: 24 V AC/DC
- Power Consumption: 18 mA
- Ingress Protection: IP66, IP67, IP69, IP69K
- Illumination: Integral LED, steady light
- Signaling Type: Steady
- Device Type: Illuminated legend ring
- Connection: Compatible with emergency stop mushroom head push-button
- Height: 2.36 inches (60 mm)
- Width: 0.37 inches (9.3 mm)
- Weight: 0.04 lbs (0.016 kg)
- Electrical Insulation Class: Class II IEC 61140
- Vibration Resistance: 5 gn
- Shock Resistance: 30 gn
- Standards: UL 50E, IEC 60947-5-1, IEC 60947-5-4
- Environmental Ratings: IP66, IP67, IP69K
- Operating Temperature: 0…158 °F (-40…70 °C)
- Certification: UL Listed, CSA
- Warranty: 18 months
Buy the Buy Schneider Electric Illuminated Legend Ring Part Number ZBY9W3B140 Online
Discover the Schneider Electric illuminated legend ring designed for emergency stop systems. This 60mm plastic ring features integral LED lighting in white or red, rated at 24V AC/DC with low power consumption. It is IP69K rated for exceptional dust and water resistance, making it suitable for demanding industrial environments. Its durable construction, compatibility with other emergency stop components, and 18-month warranty ensure reliable performance and long-lasting operation. Perfect for safety-critical applications requiring clear visual alerts and high protection standards.
Get Schneider Electric ZBY9W3B140 today—built for industrial emergency stop applications with high protection and durable LED illumination.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W3B140?
You can click on the BUY or RFQ button to purchase ZBY9W3B140 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W3B140?
You can download the ZBY9W3B140 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W3B140?
Schneider Electric
