Schneider Electric ZBY9W3B230 Illuminated Legend Ring

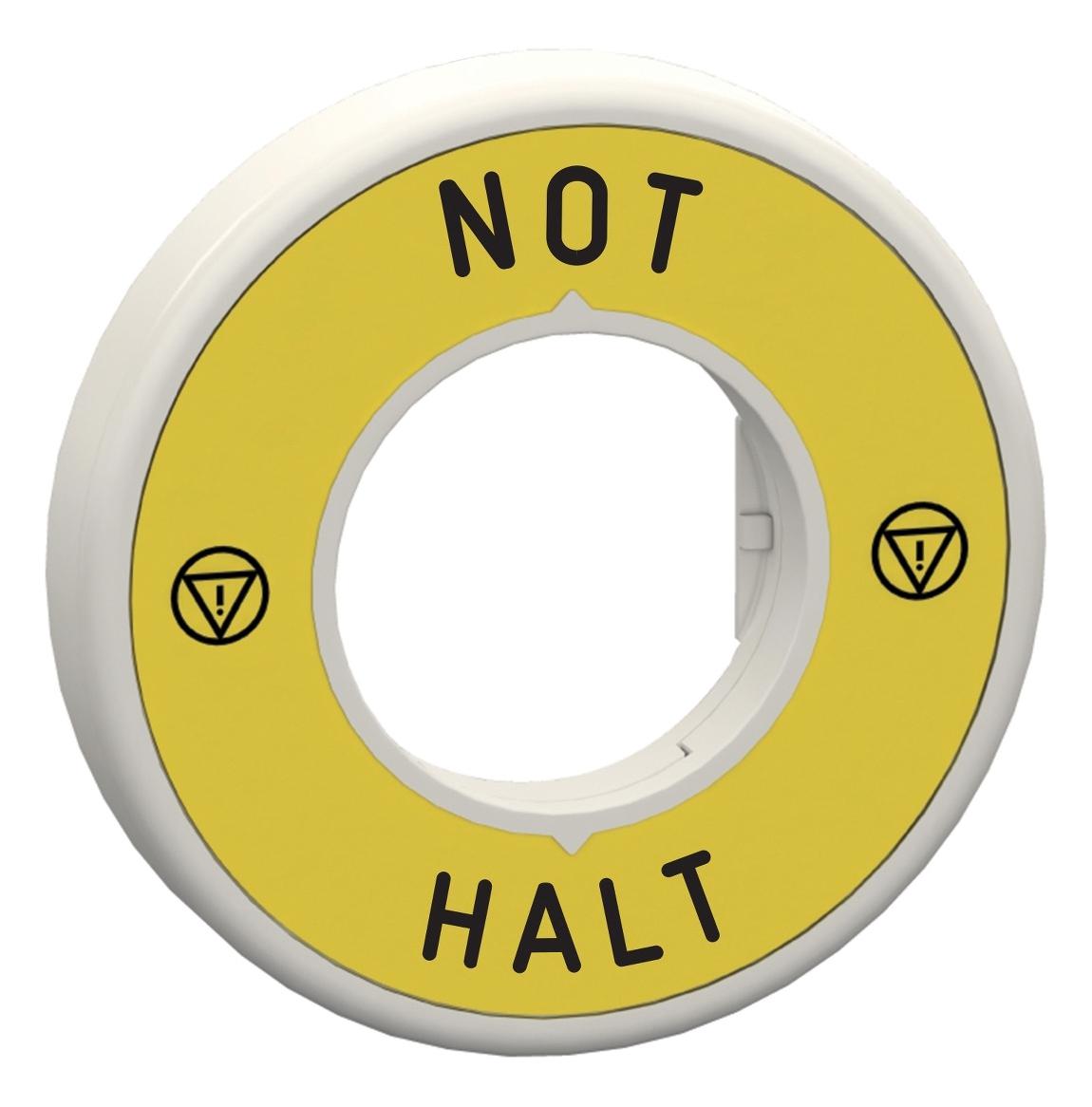

The illuminated marked legend ring features a round plastic head with a yellow background and black NOT-HALT marking, ideal for emergency stop buttons. It uses protected LED technology with white or red light sources and an integral LED bulb. Rated for 24 V AC/DC supply, it offers high resistance to pressure washing and various environmental conditions, conforming to international standards such as IEC and UL. With robust IP66/IP67/IP69 protection ratings and a service life of 100,000 hours, it ensures reliable operation in industrial safety and signaling applications.
Schneider Electric ZBY9W3B230 Illuminated Legend Ring Specifications:
- Shape of signaling unit head: Round
- Material: Plastic
- Cap/Operator or lens colour: 2 colours choice
- Light source: Protected LED
- Light source colour: White or Red
- Rated supply voltage: 24 V AC/DC at 50/60 Hz
- Power consumption: 18 mA
- Service life: 100,000 hours at 25°C
- Protection ratings: IP66, IP67, IP69, UL Type 13, 12, 4, 4X
- Resistance to high pressure washer: 7,000,000 Pa at 55°C from 0.1m distance
- Overvoltage category: Class I conforming to IEC 60536
- Insulation class: Class II according to IEC 61140
- Operating temperature range: -40°C to +70°C
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms), 25 gn (6 ms)
- Vibration resistance: 5 gn (10-500 Hz), 25 mm peak-to-peak (2-10 Hz)
- Electromagnetic compatibility: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4
- Certifications: UL listed, CSA
- Dimensions: Diameter 60mm, Height 9.3mm
- Weight: 0.016 kg
Buy the Generic Brand ZBY9W3B230 – Reliable Signaling Legend for Industrial Applications
Order the illuminated legend ring ZBY9W3B230 today to ensure clear safety signaling in your industrial environment. Its robust plastic construction, protected LED lighting in white or red, and high resistance to pressure washing and environmental factors make it ideal for emergency stop buttons and safety applications. With IP66/IP67/IP69 ratings, a lifespan of 100,000 hours, and compliance with international standards, this signaling device guarantees reliable performance. Purchase online now to upgrade your safety signaling solutions effortlessly and efficiently.
Buy ZBY9W3B230 illuminated legend ring now and enhance your safety signaling with dependable LED illumination and high environmental resistance.
Frequently Asked Questions
Where can I buy Schneider Electric ZBY9W3B230?
You can click on the BUY or RFQ button to purchase ZBY9W3B230 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZBY9W3B230?
You can download the ZBY9W3B230 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZBY9W3B230?
Schneider Electric
