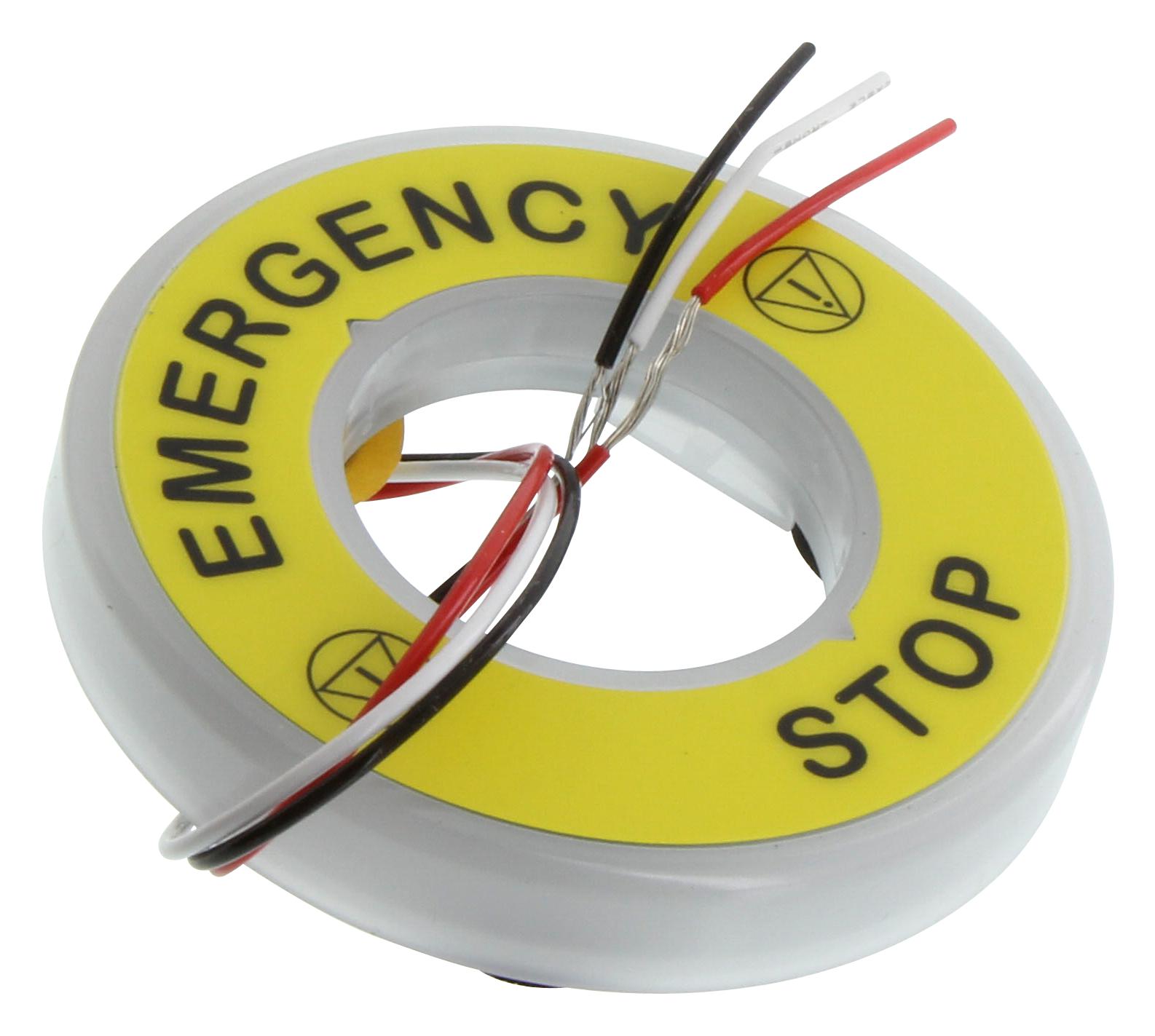

Schneider Electric ZBY9W3B330 Emergency Stop Indicator Ring
A 60mm illuminated legend ring designed for emergency stop applications. It operates at 24VAC/DC with a power consumption of 18mA. The device has high ingress protection ratings of IP66, IP67, IP69, and IP69K, ensuring durability in harsh environments. Made from durable plastic, it features an integral LED that can be white or red for clear visibility.
Schneider Electric ZBY9W3B330 Emergency Stop Indicator Ring Specifications:
- Diameter: 60 mm
- Light source: Protected LED, White or Red
- Supply voltage: 24 V AC/DC
- Power consumption: 18 mA
- Ingress protection: IP66, IP67, IP69, IP69K requirements met
- Material: Plastic
- Height: 2.36 inches (60 mm)
- Operating temperature: 0...158 °F (-40...70 °C)
- Shock resistance: 30 gn, 18 ms, IEC 60068-2-27
- Vibration resistance: 5 gn, 10...500 Hz, IEC 60068-2-6
- Certifications: UL Listed, CSA
- Environmental protection: Type 13, 12, 4, 4X UL 50E
- Protection against electrostatic discharge: 4 KV contact, 8 KV air IEC 61000-4-2
- Electromagnetic compatibility: Class B IEC 55011
- Standards: EN/IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1
Buy the Schneider Series Emergency Stop Indicator Ring: ZBY9W3B330
Order the Schneider emergency stop indicator ring online today and enhance safety with a durable, IP69-rated device. Featuring a 60mm plastic design, integral LED in white or red, and operating at 24VAC/DC, it offers reliable performance in demanding environments. With high ingress protection, shock and vibration resistance, and certifications like UL and CSA, this indicator ring ensures quick visibility and long service life. Streamline your safety controls by purchasing online now and benefit from fast delivery and premium quality.
Buy Schneider ZBY9W3B330 emergency stop indicator ring now and ensure safety with high durability and IP69 protection for harsh industrial environments.
