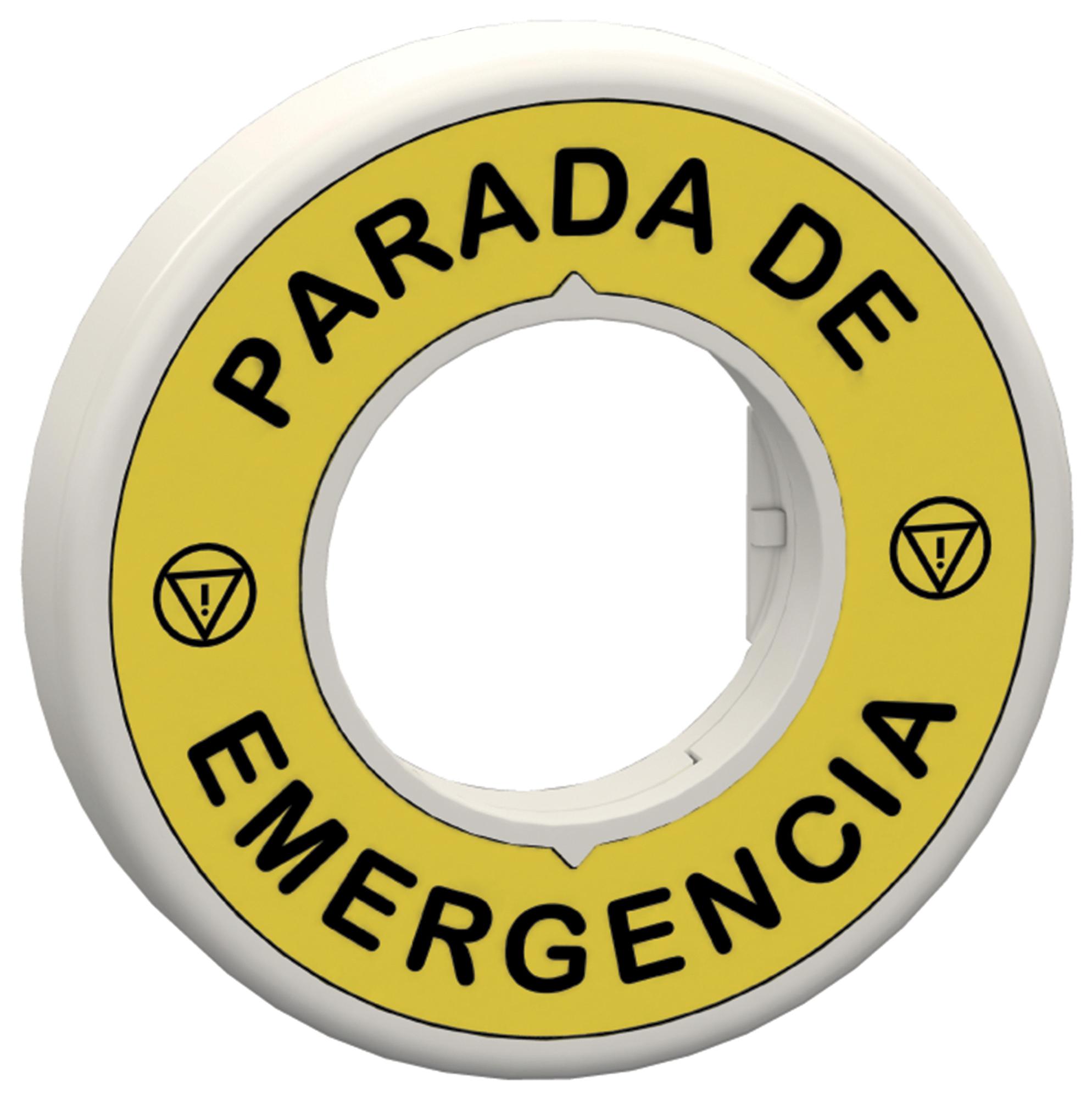

Schneider Electric ZBY9W3B430 Emergency Stop Signaling Ring
The illuminated emergency stop legend ring is a reliable signaling device with a protected LED light source in white or red. Designed for industrial safety applications, it features a yellow plastic background with black 'PARADA DE EMERGENCIA' marking, measure 60mm in height and 9.3mm in width. Its IP69K rated protection ensures resistance to high-pressure washing. With a supply voltage of 24 V AC/DC and a service life of 100,000 hours, it is suitable for demanding environments, conforming to IEC, UL, and CSA standards, with various environmental and electrical resistances.
Schneider Electric ZBY9W3B430 Emergency Stop Signaling Ring Specifications:
- Shape of signaling unit head: Round
- Color of lens: Yellow background with black marking
- Marking: PARADA DE EMERGENCIA
- Size: Height 60mm, Width 9.3mm
- Light source: Protected LED in white or red
- Rated supply voltage: 24 V AC/DC at 50/60 Hz
- Power consumption: 18mA
- Material: Plastic
- Electrical insulation class: Class II
- Protection ratings: IP66, IP67, IP69, IP69K, Type 13, Type 12, Type 4, Type 4X
- Vibration resistance: 5 gn (10-500Hz)
- Shock resistance: 30 gn for 18 ms
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Overvoltage category: Class II
- Standards: IEC 60947-5-1, IEC 60947-5-4, UL 508, CSA, JIS C8201
- Certifications: UL listed, CSA
- Environmental: Temperature -40°C to +70°C for storage and operation
- Surge withstand: 1 kV
- Service life: 100,000 hours
Buy the Harmony ZBY9W3B430 – Reliable Emergency Stop Legend Ring for Industrial Applications
Purchase the Harmony emergency stop legend ring online today for unmatched durability and safety assurance. This device features a protected LED light source in red or white, IP69K rating for resistance to high-pressure washing, and a yellow background with clear 'PARADA DE EMERGENCIA' marking, ideal for industrial safety environments. With a service life of 100,000 hours and compliance with IEC, UL, and CSA standards, it ensures reliable operation in demanding conditions—order now for seamless installation and enhanced safety.
Get Harmony ZBY9W3B430 today—built for precision with high resistance and long-lasting durability.
