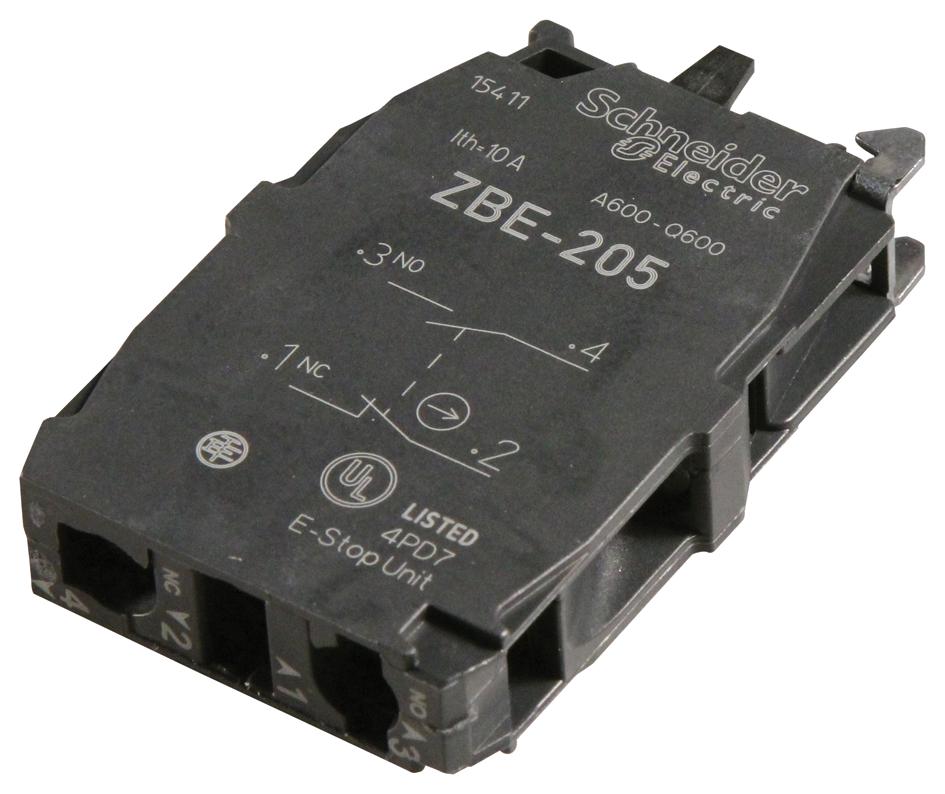

Schneider Electric ZBE205 Industrial Contact Block
The ZBE205 is a robust single-pole contact block compatible with Harmony XB4 and XB5 series, featuring screw clamp terminals and silver alloy contacts. It includes one normally open and one normally closed slow-break contact, ensuring reliable switching. Suitable for industrial, automotive, and commercial use, it offers positive opening per EN/IEC 60947-5-1, front mounting, and a mechanical durability of 10 million cycles. The product is IP20 protected, with TH protective treatment, and complies with multiple safety standards, making it ideal for automation and control systems.
Schneider Electric zbe205 Industrial Contact Block Specifications:
- Contacts type: 1NO+1NC, slow-break operation
- Mounting: Front mounting
- Protection rating: IP20 according to IEC 60529
- Contacts material: Silver alloy (Ag/Ni)
- Contact operation: Slow-break
- Mechanical durability: 10,000,000 cycles
- Operating travel: 1.5 mm (NC), 2.6 mm (NO), 4.3 mm (total travel)
- Operating force: 4.6 N
- Connection terminals: Screw clamp, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
- Screw head: Cross (Pozidriv No 1), Slotted (4mm and 5.5mm)
- Rated insulation voltage: 600 V (pollution degree 3)
- Rated operational current: 3A at 240 V AC-15, 6A at 120 V AC-15
- Short-circuit protection: 10 A cartridge fuse gG
- Vibration resistance: 5 gn
- Shock resistance: 30-50 gn
- Standards: IEC 60947-5-1, IEC 60947-5-4, IEC 60068-2-6, IEC 60068-2-27, UL 508
- Certifications: DNV, CSA, Lloyd's Register, BV, GL, GOST, RINA, UL
- Environmental: -40°C to +70°C, IP20, UL, CSA, IEC standards
Buy the Buy Schneider Electric Contact Block Part Number ZBE205 Online
Order the Schneider Electric ZBE205 contact block today for your automation and control projects. This reliable, high-durability component features screw clamp terminals and silver alloy contacts, ensuring high performance and safety. Suitable for industrial and commercial applications, it offers IP20 protection and conforms to IEC standards. Front mounting and positive opening enhance its versatility. Perfect for integrating into control panels and automation systems, this contact block provides long-lasting service, mechanical durability, and compliance with international safety and environmental standards. Purchase online now for fast delivery.
Get Schneider Electric ZBE205 contact block today—featuring screw clamp terminals and high durability for reliable automation control.
Frequently Asked Questions
Where can I buy Schneider Electric zbe205?
You can click on the BUY or RFQ button to purchase zbe205 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part zbe205?
You can download the zbe205 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of zbe205?
Schneider Electric
