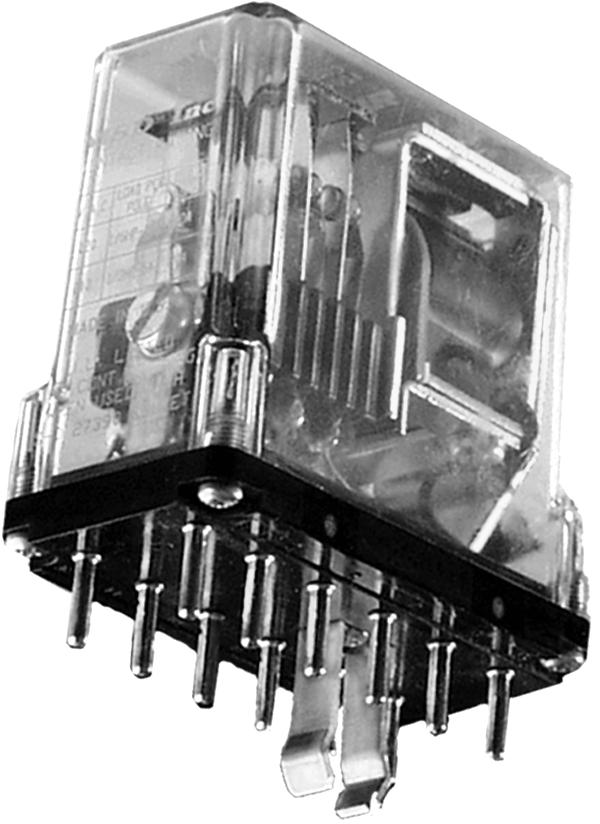

STRUTHERS-DUNN 219BBXPLM120VAC Industrial Relay
This versatile industrial relay with a 110-120 VAC coil offers reliable performance in various automation and control applications. It features a 2A+2C contact configuration, accommodating double-pole single-throw (DPST-NO) and double-pole double-throw (DPDT) arrangements. Capable of handling up to 30 amps, it is designed for plug-in mounting for ease of installation. Its rugged construction ensures long life and dependable operation in demanding environments, making it suitable for industrial, automation, and control systems requiring robust relays with high current capacity.
STRUTHERS-DUNN 219BBXPLM120VAC Industrial Relay Specifications:
- Contacts: 2A+2C configuration, DPST-NO and DPDT options
- Contact Material: Silver Alloy-Gold Diffused
- Contact Ratings: 30 Amp at 120VAC, 30 Amp at 28VDC, 10 Amp resistive load
- Coil Voltage: 110-120 VAC
- Coil Power: 5 VA
- Coil Resistance: 540 ohms at 120VAC
- Drop-out Voltage: 10% of nominal
- Operate Time: 25 ms
- Release Time: 20 ms
- Dielectric Strength: 500 Vrms across contacts, 1500 Vrms between mutually insulated points
- Insulation Resistance: 1,000 Mohms at 500V DC
- Temperature Range: -20°C to 70°C operating, -40°C to 105°C storage
- Mounting: Plug-in, 12-pin or 14-pin options
- Enclosure: Clear Polycarbonate
- Weight: 8.5 oz (241 grams)
Buy the Struthers Dunn Series 219 Industrial Relay: 219BBXPLM120VAC
Purchase your Struthers Dunn Series 219 relay, model 219BBXPLM120VAC, online today for reliable automation and control performance. This rugged relay features a 110-120 VAC coil, capable of switching up to 30 amps, making it ideal for industrial control systems, automation projects, and demanding electrical environments. Its versatile contact configurations include DPST-NO and DPDT arrangements, providing flexible switching options. With plug-in mounting, high dielectric strength, and a durable polycarbonate enclosure, this relay guarantees long-lasting dependable operation, enhances system reliability, and simplifies installation—all available for quick online ordering.
Order your Struthers Dunn Series 219 industrial relay, part number 219BBXPLM120VAC, today and ensure your control systems operate with dependable, high-capacity switching performance.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 219BBXPLM120VAC?
You can click on the BUY or RFQ button to purchase 219BBXPLM120VAC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 219BBXPLM120VAC?
You can download the 219BBXPLM120VAC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 219BBXPLM120VAC?
STRUTHERS-DUNN
