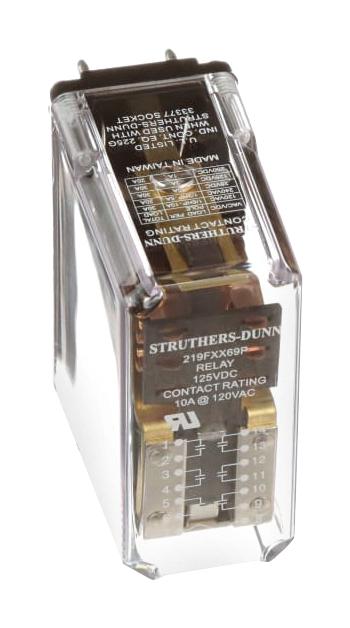

STRUTHERS-DUNN 219FXX69P125VDC Industrial Control Relay
This versatile industrial relay features a 6PST-NO contact configuration capable of handling up to 30 amps, with a coil voltage of 110-125 VDC. Designed for plug-in mounting, it operates as a single side stable switch, making it suitable for a wide range of control applications such as automation, industrial equipment, and manufacturing systems. The relay is UL listed when used with specified sockets, ensuring safety and reliability in demanding industrial environments. Its rugged construction provides long life and consistent performance with an emphasis on ease of integration and customization for special applications.
STRUTHERS-DUNN 219FXX69P125VDC Industrial Control Relay Specifications:
- Contact Configuration: 6PST-NO
- Contact Material: Silver Alloy-Gold Diffused
- Contact Rating: 30 Amp / 10 Amp resistive, inductive loads
- Coil Voltage: 110-125 VDC
- Coil Resistance: 13,400 ohms at 80% of rated voltage
- Coil Power: 2.5W typical
- Drop-out Voltage: 10% of nominal voltage
- Operate Time (max): 25ms
- Release Time (max): 20ms
- Dielectric Strength: 500Vrms across open contacts, 1500Vrms between mutually insulated points
- Insulation Resistance: 1,000 Mohms min @ 500VDC
- Temperature Range: -40°C to 105°C
- Life Expectancy: 100,000 electrical cycles, 10,000,000 mechanical cycles
- Mounting Position: Any
- Enclosure: Clear Polycarbonate
- Weight: 8.5 oz (241 grams)
Buy the Struthers-Dunn 219FXX69P125VDC – Reliable Industrial Relay for Control Systems
Purchase the Struthers-Dunn 219FXX69P125VDC industrial relay online today to ensure reliable operation in your automation and control projects. This relay features a 6PST-NO contact configuration capable of handling up to 30 amps, with a coil voltage of 110-125 VDC. Its plug-in mounting design allows for quick installation and secure connection. Built for durability, it offers long-lasting performance with a high life expectancy, making it ideal for manufacturing, automation, and industrial control systems. Order now for fast delivery and dependable service.
Order your Struthers-Dunn 219FXX69P125VDC relay today and enhance your control system with a durable, high-capacity industrial switch designed for demanding environments.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 219FXX69P125VDC?
You can click on the BUY or RFQ button to purchase 219FXX69P125VDC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 219FXX69P125VDC?
You can download the 219FXX69P125VDC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 219FXX69P125VDC?
STRUTHERS-DUNN
