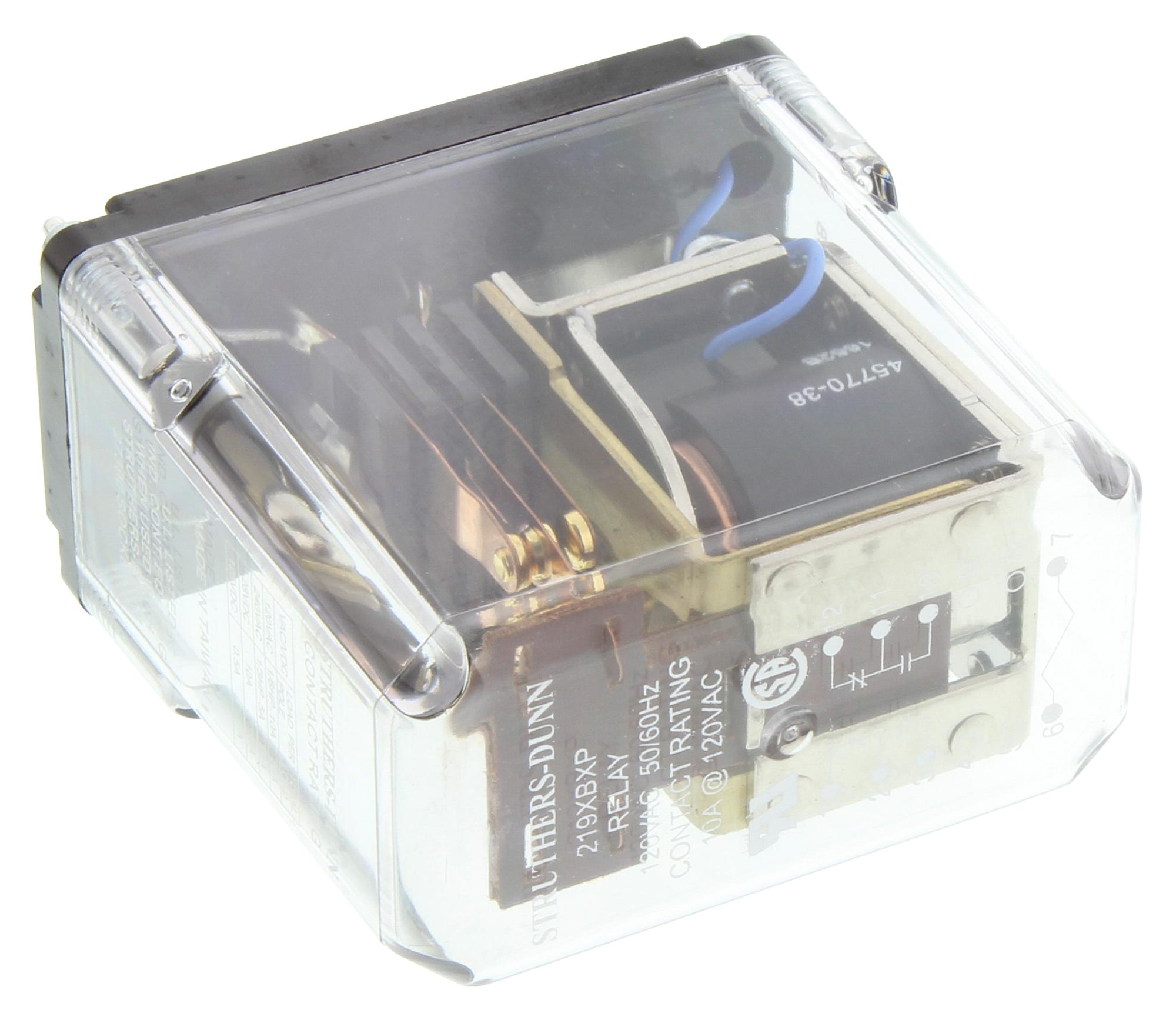

STRUTHERS-DUNN 219XBXP120VAC industrial relay
The relay features a versatile design with a 110-120 VAC coil voltage and a double pole double throw (DPDT) contact configuration, capable of handling up to 30 amps. Suitable for industrial and control applications, it offers reliable switching with plug-in mounting for easy installation. The relay includes features like high dielectric strength, low contact resistance, and durability for demanding environments. It is UL listed when used with appropriate sockets, ensuring safety and quality standards. Ideal for automation, machinery, and control systems requiring robust performance and long service life.
STRUTHERS-DUNN 219XBXP120VAC industrial relay Specifications:
- Coil Voltage: 110-120 VAC
- Contact Configuration: DPDT
- Contact Material: Silver Alloy-Gold Diffused
- Contact Rating: 30 Amp / 10 Amp
- Dielectric Strength: 500 Vrms across open contacts, 1500 Vrms between insulated points
- Insulation Resistance: 1,000 Mohms min at 500VDC
- Operate Time: 25ms
- Release Time: 20ms
- Drop-out Voltage: 10% of nominal
- Temperature Range: -20 to 60°C operating, -40 to 105°C storage
- Life Expectancy: Electrical: 100,000 cycles, Mechanical: 10,000,000 cycles
- Mounting: Plug-in
- Enclosure: Clear Polycarbonate
- Weight: 8.5 oz (241 grams)
Buy the Struthers-Dunn 219XBX – Reliable DPDT Industrial Relay for Control Systems
Purchase the Struthers-Dunn 219XBX relay online today to ensure robust, long-lasting performance for your automation and control needs. With a 110-120 VAC coil, DPDT configuration, and capacity up to 30 amps, this versatile relay is perfect for demanding environments. Its plug-in design allows easy installation, and UL listing confirms safety standards. Whether used in machinery, control panels, or automation systems, this relay offers dependable switching, high dielectric strength, and exceptional durability. Order now for quick delivery and reliable operation.
Buy Struthers-Dunn 219XBX relay now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 219XBXP120VAC?
You can click on the BUY or RFQ button to purchase 219XBXP120VAC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 219XBXP120VAC?
You can download the 219XBXP120VAC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 219XBXP120VAC?
STRUTHERS-DUNN
