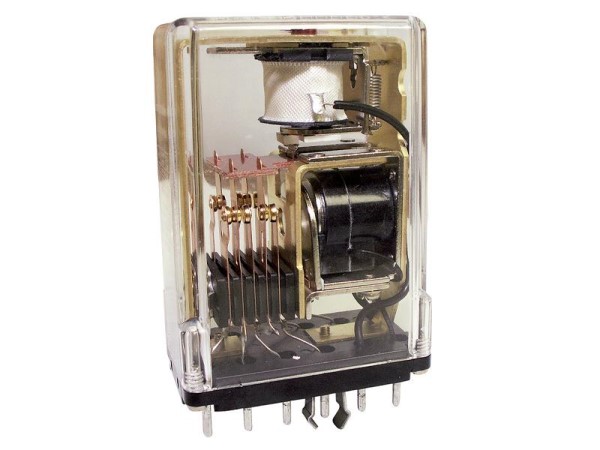

STRUTHERS-DUNN 255ABXP115125VDC Latching Relay
The 255 Series is a reliable latching relay with a 12VDC coil, designed for control and automation applications. It features a double-pole double-throw (DPDT) contact configuration with two Form C contacts and one Form A contact, capable of handling up to 10 amps. The relay's two-coil latching mechanism ensures contacts stay transferred without continuous power, enhancing energy efficiency and long-term durability. Constructed with rugged polycarbonate, it supports plug-in mounting and offers optional features such as permanent magnet blowouts and indicator lamps, ensuring flexible, safe operation in industrial environments.
STRUTHERS-DUNN 255ABXP115125VDC Latching Relay Specifications:
- Contact Configuration: DPDT (Form C), Single-Pole Single-Throw (SPST-NO)
- Contact Material: Silver Alloy Gold Diffused
- Contact Rating: 10 Amp at 120/240VAC Resistive, 28VDC Resistive
- Coil Voltage: 6, 12, 24, 120, 240VAC; 6, 12, 24, 48, 115-125VDC
- Nominal Coil Resistance: 14.5Ω (12VDC), 52.0Ω (24VDC), 1450Ω (120VAC), 5000Ω (240VAC)
- Coil Power: 1.8W (DC), 5VA (AC)
- Operate Time: 25ms, Release Time: 20ms
- Dielectric Strength: 1500Vrms across open contacts and between insulated points
- Insulation Resistance: 100 Megohms at 500VDC
- Temperature Range: -20°C to 60°C operating, -40°C to 105°C storage
- Life Expectancy: Electrical 100,000 operations, Mechanical 10 million operations
- Dimensions: 94.4mm x 114.8mm x 36.7mm, Weight: 11.8oz (300 grams)
- Enclosure: Polycarbonate cover, optional manual actuator and indicator lamp
Buy the Struthers-Dunn Series 255 Latching Relay: 255ABXP115125VDC
Enhance your control system with the reliable and energy-efficient Struthers-Dunn Series 255 latching relay, featuring a 12VDC coil. Its robust DPDT contact configuration handles up to 10 amps for multiple applications. Designed with rugged polycarbonate construction, it supports plug-in mounting for ease of installation. Optional features include permanent magnet blowouts and indicator lamps for added safety and visibility. Perfect for industrial automation, control panels, and switching applications, this relay offers precise and dependable operation, making it a valuable addition to your equipment.
Order your Struthers-Dunn Series 255ABXP115125VDC latching relay today and ensure reliable switching in your industrial control systems.
